JONSBO has officially introduced its new TM-360 all-in-one liquid cooler, expanding its cooling lineup with a model focused on display customization and high-performance thermal hardware. The Liquid Cooler was recently listed on the company’s official website and arrives with a large integrated display, a redesigned magnetic pump block, and a bundled ARGB fan setup aimed at gaming and enthusiast PC systems.

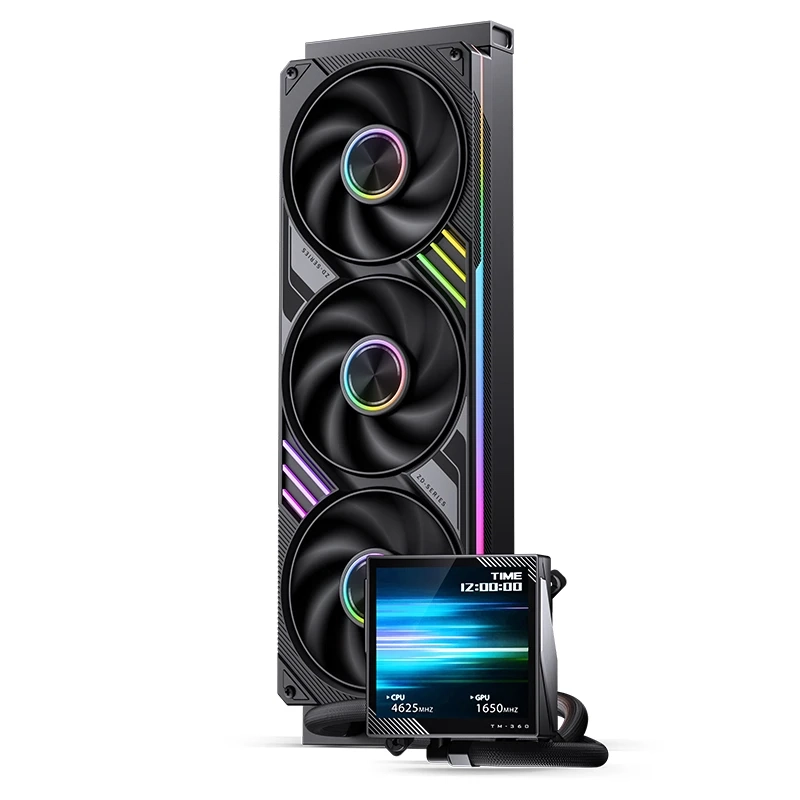

The TM-360 features a magnetic water block design with a mirrored top cover and brushed aluminum alloy trim on both sides. JONSBO has combined the pump housing and display module into a compact structure that follows the minimalist design language seen in many modern gaming builds. The cooler’s display is one of its key additions, offering a 3.95-inch panel with a 480×480 resolution and peak brightness rated at 400 nits.
Users can customize the display with .gif animations, .jpg images, and .mp4 video playback support. This allows the pump screen to show system-themed visuals, monitoring graphics, or personalized content directly from the desktop. Display-equipped liquid coolers have become increasingly common in the premium cooling segment, and JONSBO appears to be targeting that category with the TM-360.
On the hardware side, the cooler uses a large 56.2mm × 54.2mm copper base designed to improve CPU contact coverage. The pump operates at speeds up to 5000RPM and uses a sealed airflow chamber structure intended to maintain stable coolant circulation under heavy workloads. JONSBO has also equipped the cooler with EPDM and IIR tubing materials, which are commonly used to improve durability and reduce long-term wear.
The radiator included with the TM-360 measures 27mm in thickness and uses 20mm cooling fins for heat dissipation. Cooling airflow is handled by the company’s ZD-360 integrated ARGB fan system. According to the listed specifications, the fans operate between 700RPM and 2400RPM while delivering airflow ranging from 22.46CFM to 62.61CFM. Static pressure is rated between 0.69 and 3.09 mmAq, while noise output ranges from 18.6dB(A) to 32.1dB(A), depending on operating speed.
JONSBO is also offering separate warranty coverage across the cooler’s major components. The main unit carries a 5-year warranty, while the fan assembly includes 3 years of coverage. The integrated display module is backed by a 2-year warranty.
The company has not yet confirmed official pricing or regional availability for the TM-360. However, based on its feature set and integrated display hardware, the cooler is expected to compete in the premium 360mm AIO segment for gaming PCs and high-performance desktop systems.
