The demand for modern power supplies has grown as new-generation GPUs and CPUs continue to draw more power while also requiring improved efficiency and stability. Today’s builders are also looking for cleaner cable management, quieter operation, and support for the latest standards without relying on adapters or workarounds. As a result, ATX 3.1 and PCIe 5.1 compliance have become important features in the current PSU landscape.
GAMEMAX has entered this segment with the LION CORE Platinum Series, offered in 1000W and 1200W models. It is also the company’s first PSU line to come with a limited lifetime warranty, targeting users who are building high-performance systems and expect long-term reliability. The unit supports native 12V-2×6 power delivery, fully modular cabling, and dual Platinum certifications from 80 PLUS and Cybenetics.
Cooling and noise control are handled by a 135mm turbo axial fan with support for 0dB operation at low loads, allowing the PSU to run silently when power demand is minimal. Inside, it uses Japanese 105°C capacitors and an LLC resonant design managed by the MPS1213 controller, aimed at maintaining stable voltage output under sustained load conditions.
The exterior design measures 160mm in length and includes brushed aluminum side panels with integrated ARGB lighting. This gives system builders some flexibility in matching the PSU with themed builds while keeping the overall look clean.
In this hands-on review, we take a closer look at the GAMEMAX LION CORE Platinum 1200W PSU, its build quality, feature set, and how it performs in a modern high-wattage PC setup.
Specifications
| Category | Specification |
|---|---|
| Model Name | GameMax LION CORE Series 1200 PLATINUM Power Supply |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 15–8A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 160 × 150 × 86 mm |
| Efficiency | 92% |
| 80 PLUS Rating | Platinum |
| Cybenetics Efficiency | Platinum |
| Cybenetics Noise Level | A+ |
| Protections | OPP / OVP / UVP / OCP / SCP / OTP / NLP / SIP / OLP / NLO |
| Safety Certifications | CE / FCC / CB / EAC / UKrTEST / RoHS / CCC |
| Fan Size | 135 mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| 0dB Mode | Yes |
| Cable Type | Embossed |
| Modularity | Fully Modular |
| ATX 24-Pin Cable | MB 24 (20+4) Pin ×1 (650 mm) |
| CPU Power Cable | CPU 8 (4+4) Pin ×2 (700 mm) |
| PCIe 12V-2×6 Cable | PCIe 5.1 12+4 Pin ×1 (650 mm) |
| PCIe 6+2 Pin Cables | PCIe 8 (6+2) Pin ×4 (650 mm) |
| SATA Cables | SATA ×2 (500+150+150+150 mm) |
| Peripheral Cable | PATA ×1 (500+150+150 mm + FDD 150 mm) |
| RGB Cable | ARGB 3-pin ×1 (1000 mm) |
Unboxing
The GAMEMAX Lion Core 1200W arrives in a large black retail box with green accents and clear product branding across the front panel. The packaging highlights key specifications, including 80 Plus Platinum efficiency, PCIe 5.1 compatibility, ATX 3.1 support, and Cybenetics Platinum and A+ certifications. Around the back, the box provides detailed information about the PSU’s power delivery, connector layout, cooling setup, and cable configuration. GAMEMAX also mentions the use of 105°C Japanese capacitors and native 12V-2×6 GPU support for modern graphics cards.

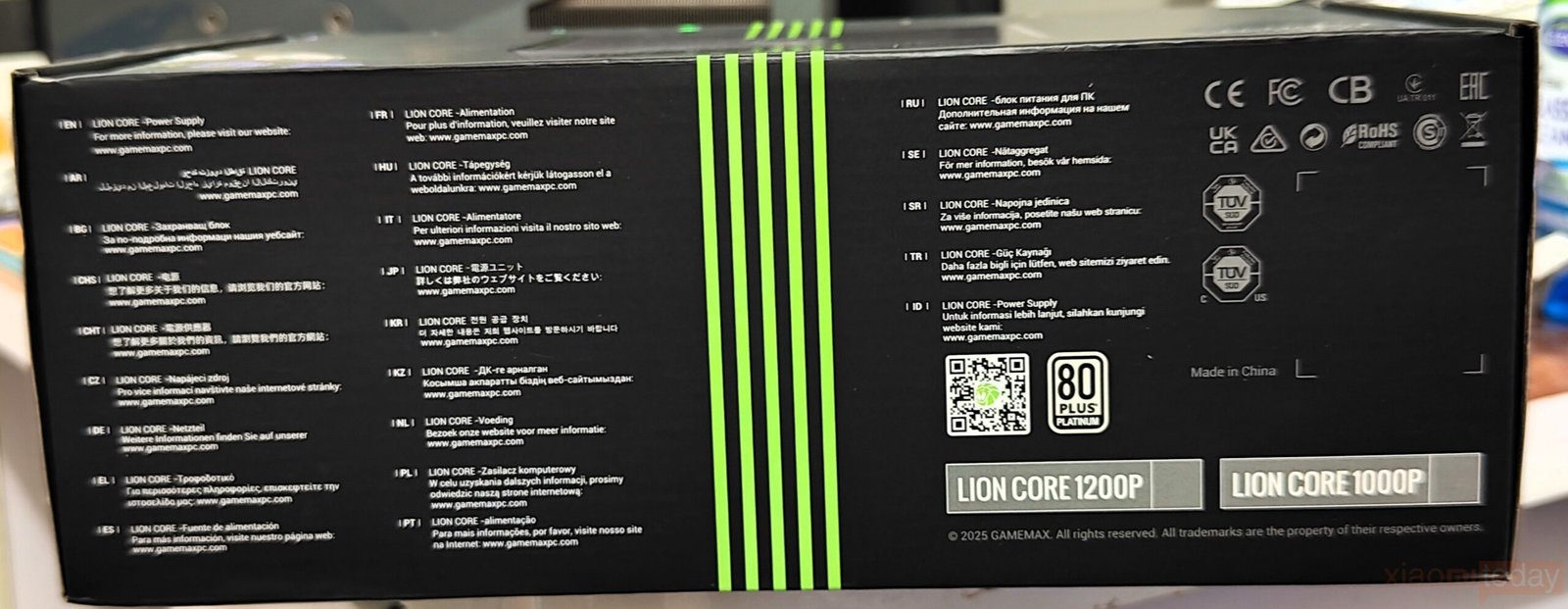

The top section continues the same minimal design language with multilingual branding and certification markings.

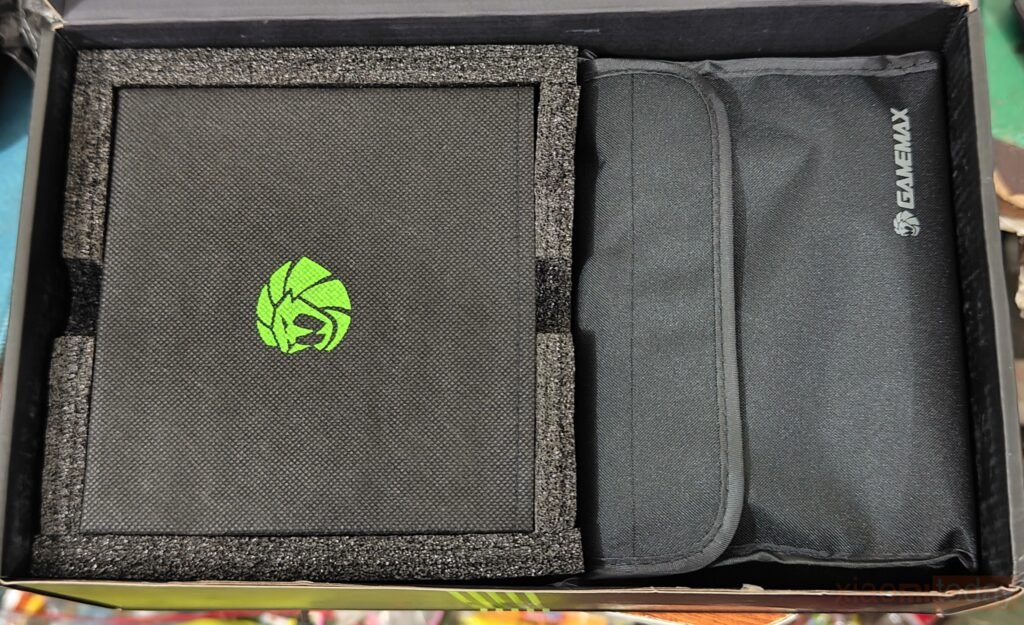

Inside the box, the power supply is protected by thick foam padding to reduce movement during shipping. The PSU itself comes wrapped inside a fabric pouch, while the modular cables are stored separately in another carrying bag. GAMEMAX also includes a power cable, mounting screws, installation gloves, a screwdriver, and the user manual inside the package. The overall presentation feels clean and organized, especially for a fully modular power supply in this category.

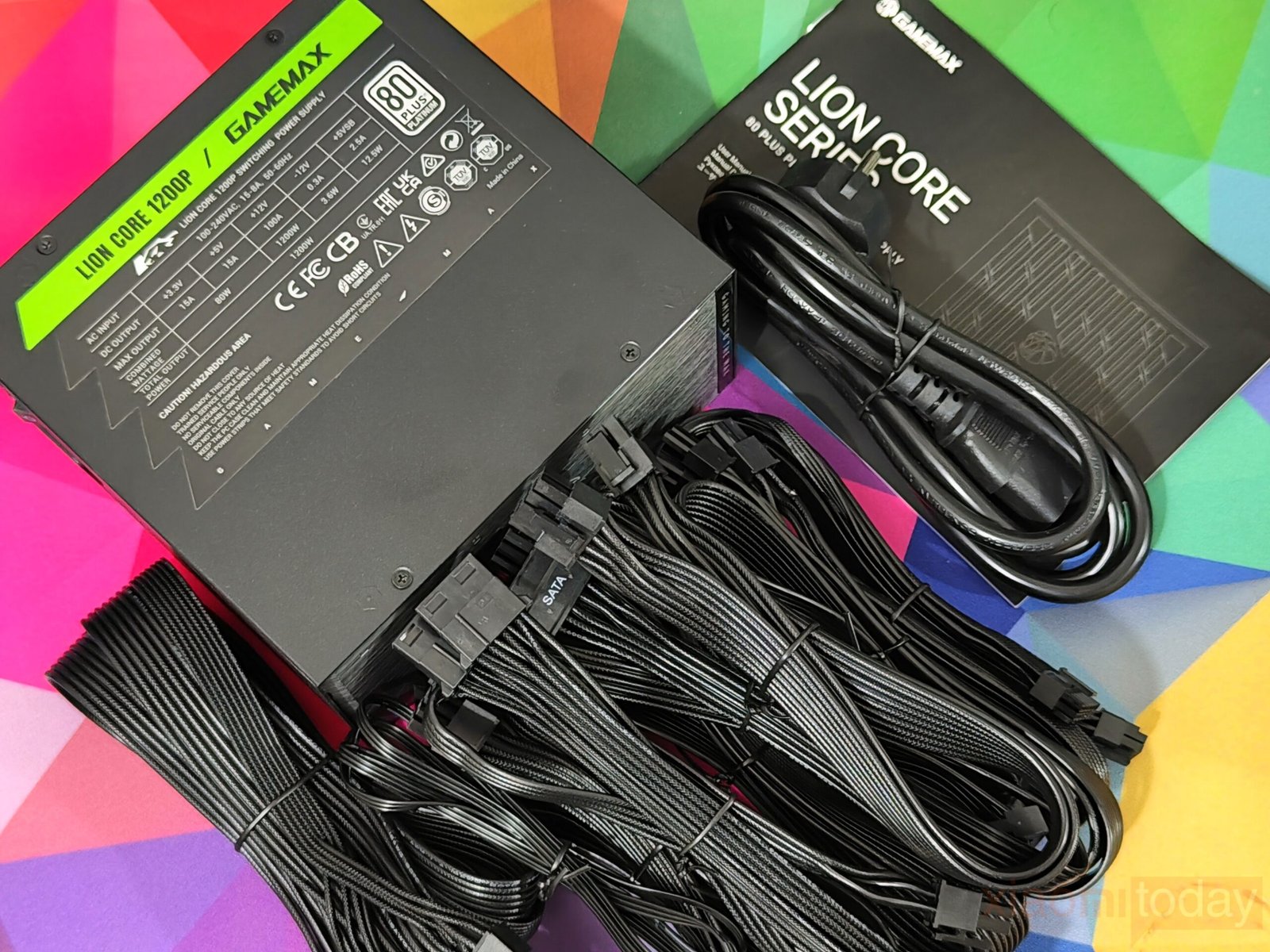

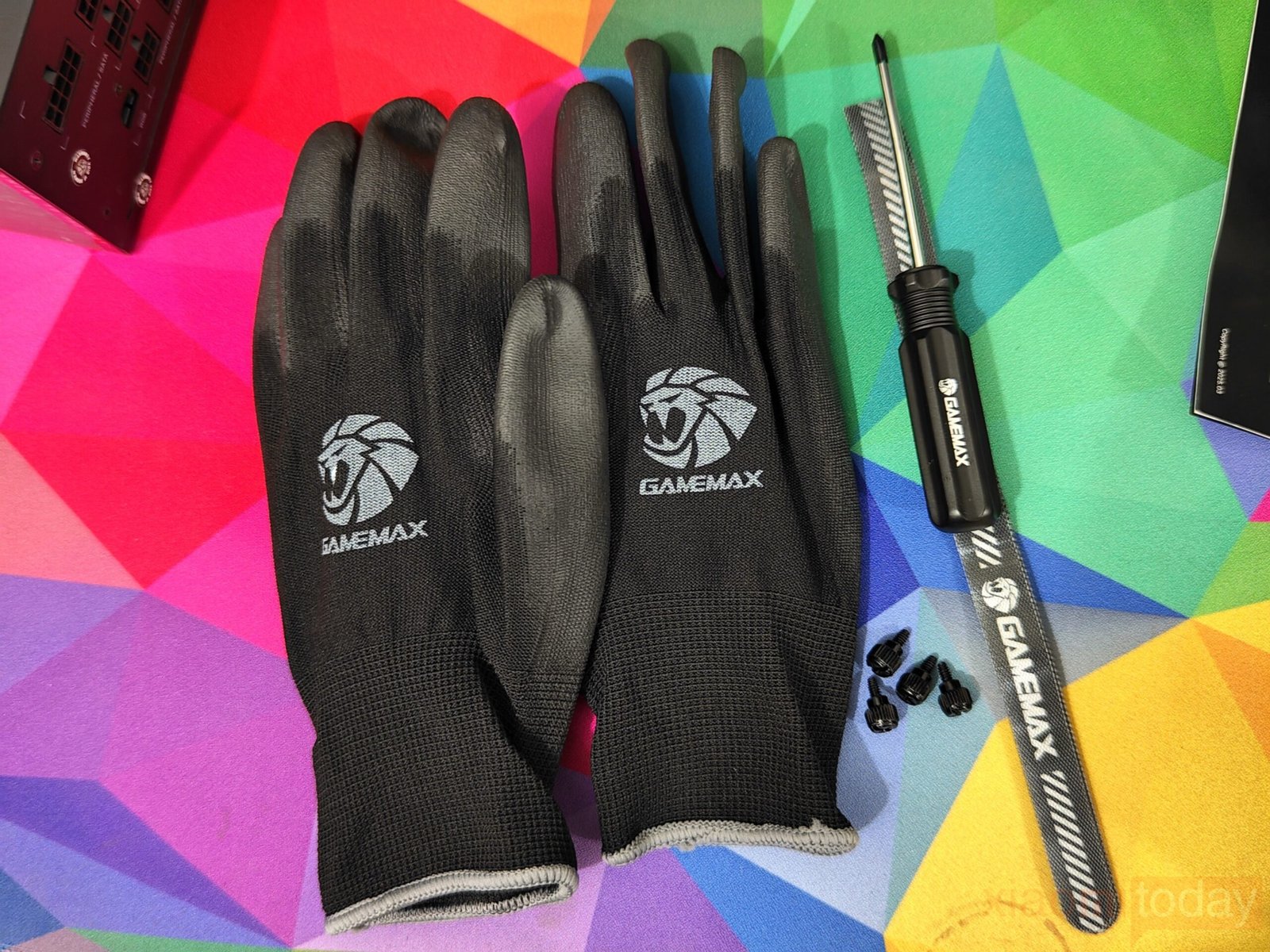

Package Contents
- GAMEMAX Lion Core 1200W Power Supply
- Fully Modular Cable Set
- AC Power Cable
- User Manual
- Mounting Screws
- Installation Gloves
- Screwdriver
The included cable set is suitable for modern gaming PCs and workstation systems. GAMEMAX provides a native PCIe 5.1 12V-2×6 cable for newer graphics cards, removing the need for external adapters. Cable lengths are also adequate for most mid-tower and full-tower PC cases.
Design & Build Quality

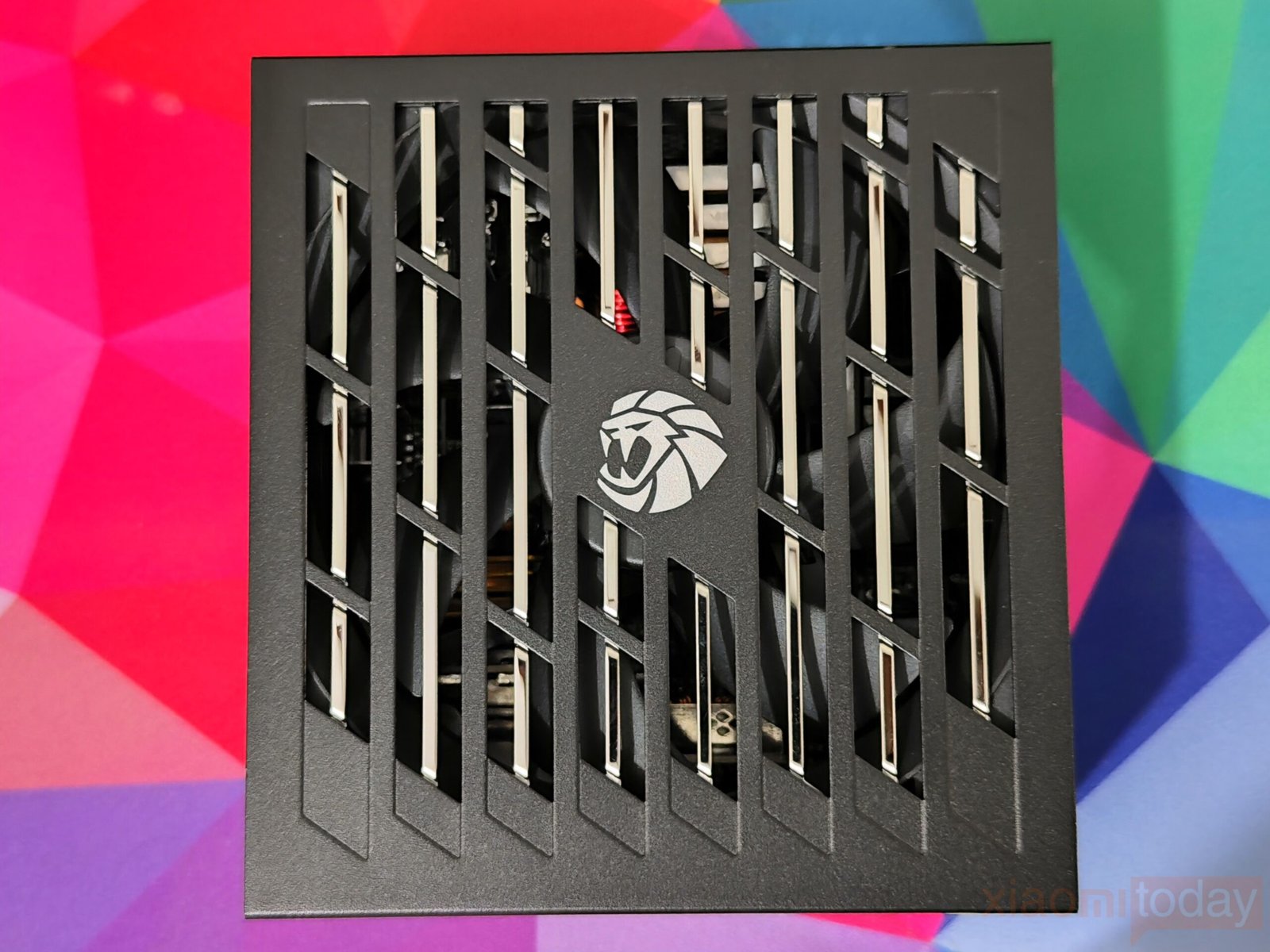

The GameMax LION CORE 1200P uses a custom-cut ventilation grille on the top panel that gives the power supply a cleaner and more premium appearance compared to standard mesh layouts. The angular vent design adds some visual depth without making the PSU look overly aggressive. A centered lion emblem further strengthens the product identity, especially for users building RGB-focused gaming PCs with tempered glass side panels.
Under the grille sits a 135mm Fluid Dynamic Bearing fan designed for low-noise cooling. GameMax pairs the fan with intelligent 0dB temperature control, allowing the fan to remain off during low-load operation. This helps reduce unnecessary noise during daily workloads, content streaming, or lighter gaming sessions. The cooling setup also carries a Cybenetics A- noise certification, which points toward quieter operation under normal system loads.

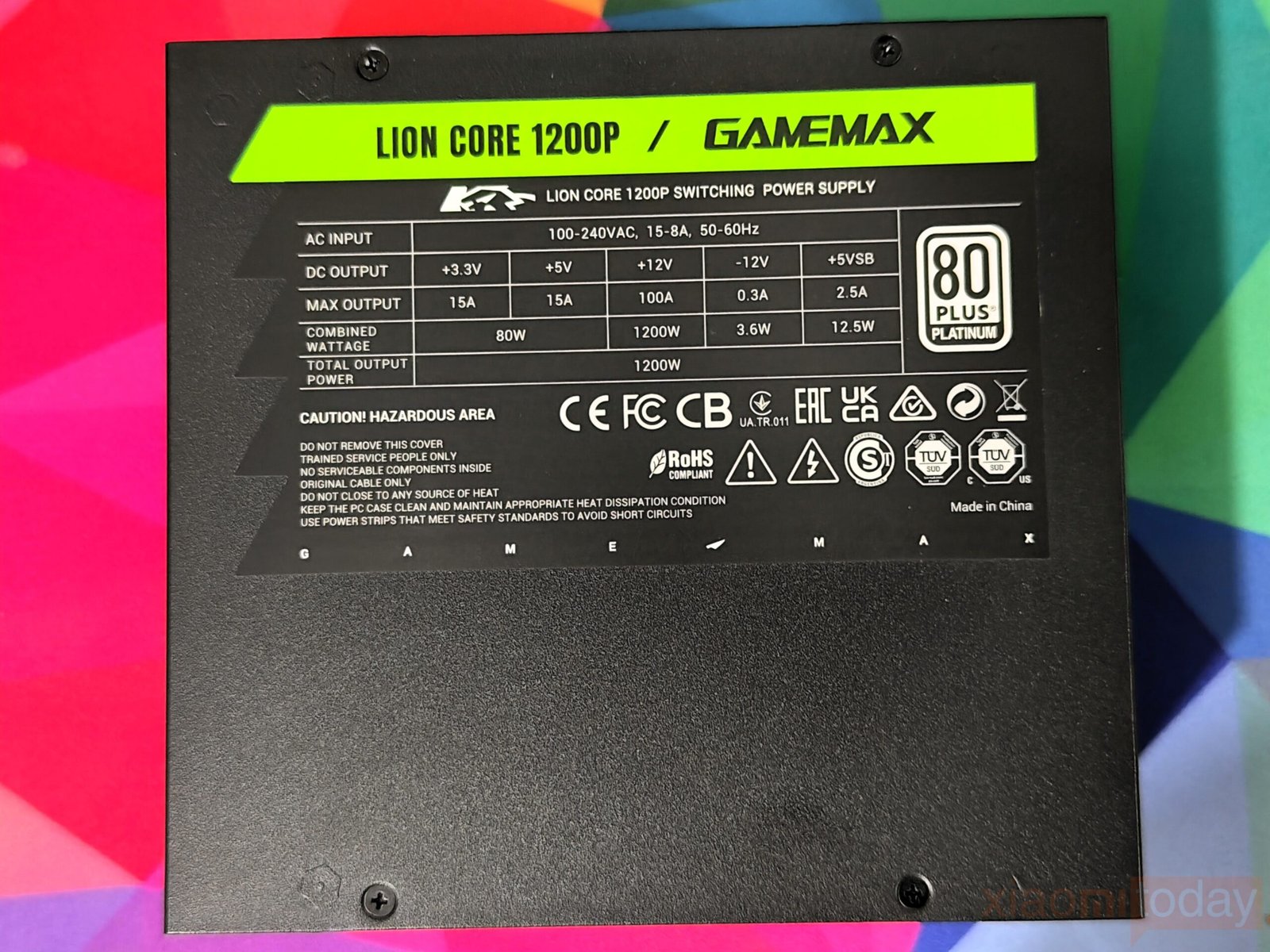

The bottom section features a large specification label finished in a black and neon green color theme that matches the gaming-oriented styling of the LION CORE series. Power distribution information is clearly displayed, including the single +12V rail capable of delivering up to 100A. This configuration is well-suited for modern gaming systems running power-hungry graphics cards and high-core-count processors.
The textured black coating across the chassis gives the PSU a solid feel while helping reduce fingerprints and small scratches during installation. Build quality across the panel edges and screw placements also appears clean, with no visible gaps or uneven finishing around the housing.

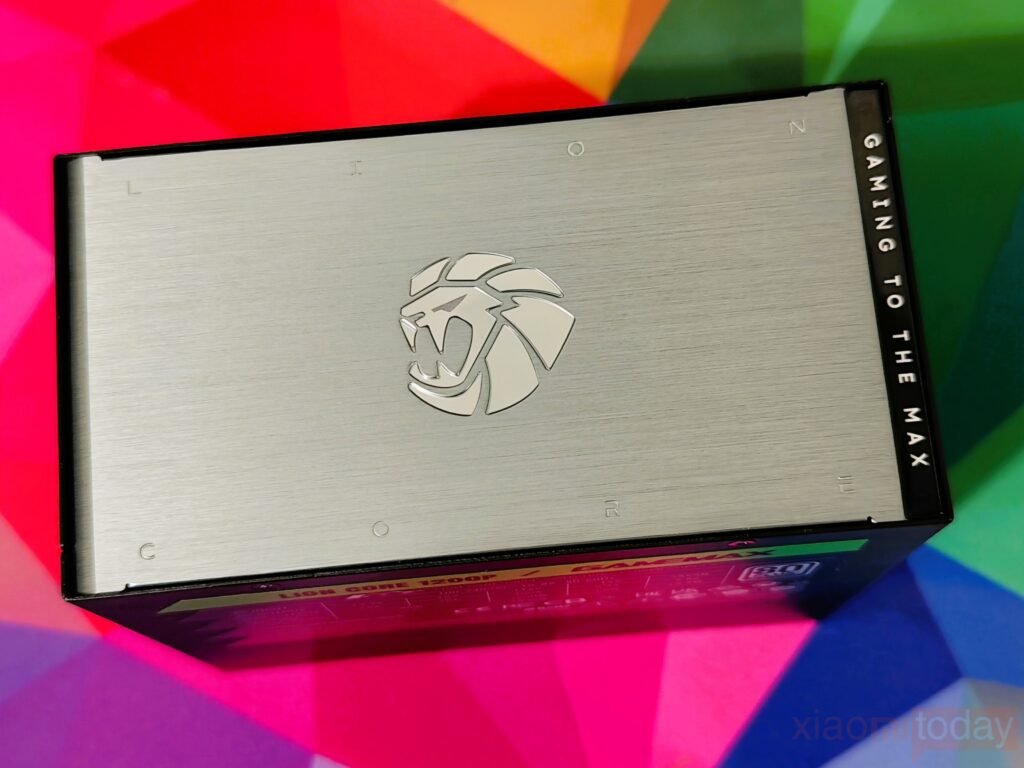

The side panels are among the more eye-catching parts of the GameMax LION CORE 1200P design. GameMax uses an aluminum front panel with a hairline texture finish, giving the PSU a more refined look compared to standard painted metal surfaces. The brushed finish reflects light softly and blends well with premium PC hardware components.
GameMax also adds its “Lion Eye” RGB lighting system alongside nanomaterial accents to improve the visual presentation inside showcase builds. The lighting design is integrated neatly rather than dominating the entire side panel, making it suitable for both minimal RGB systems and full custom gaming setups. Combined with the metallic finish, the PSU carries a cleaner and more polished appearance overall.

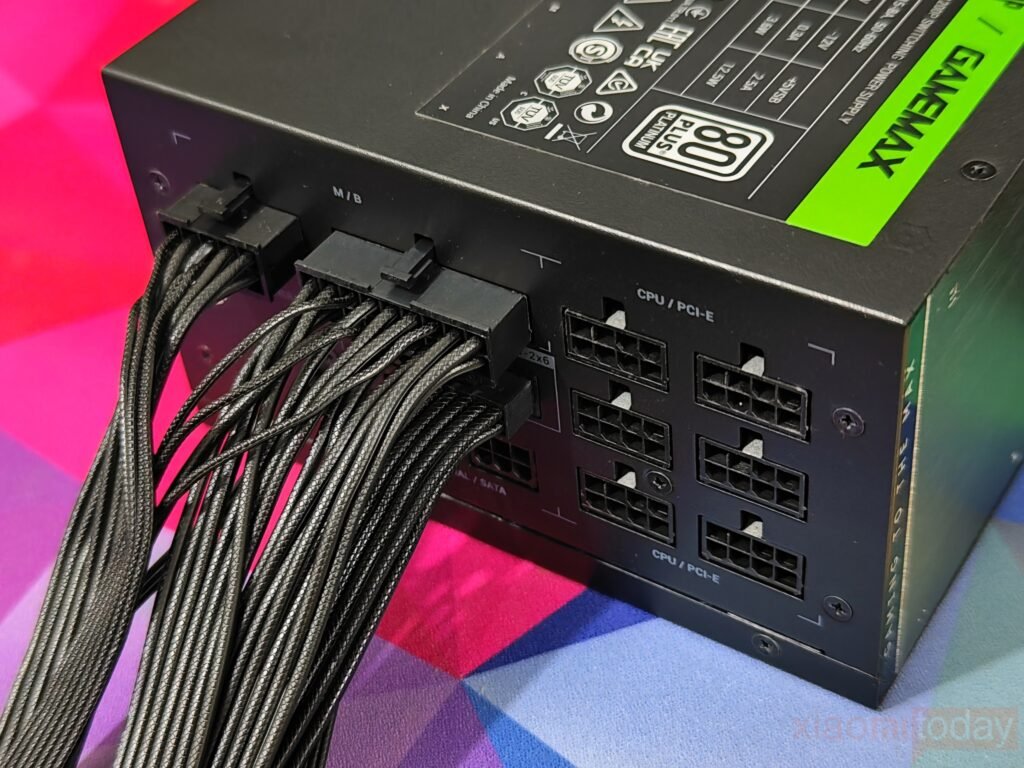

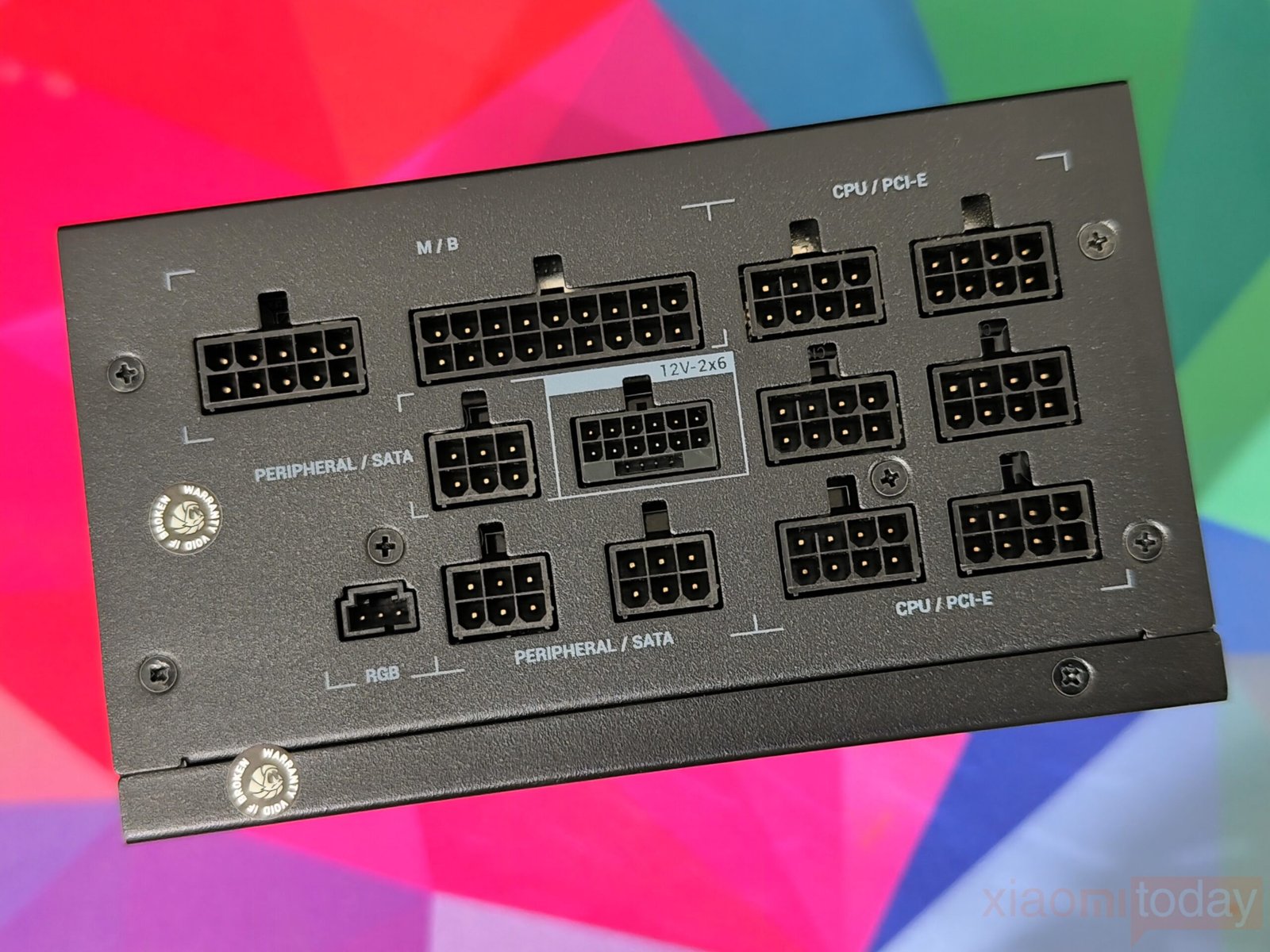

The fully modular cable interface is arranged in a clean and organized layout. All connectors are clearly labeled for motherboard, CPU, PCIe, SATA, and peripheral connections, making cable installation easier during system assembly. The spacing between ports is wide enough to handle thicker sleeved cables commonly used in high-end gaming builds.
The connector housing itself feels sturdy, with very little flex around the modular panel. Multiple CPU and PCIe power connectors are available for demanding hardware configurations, including modern graphics cards that require higher power delivery. GameMax also includes an RGB header connection, allowing lighting synchronization with compatible motherboard software and ecosystem lighting controls.

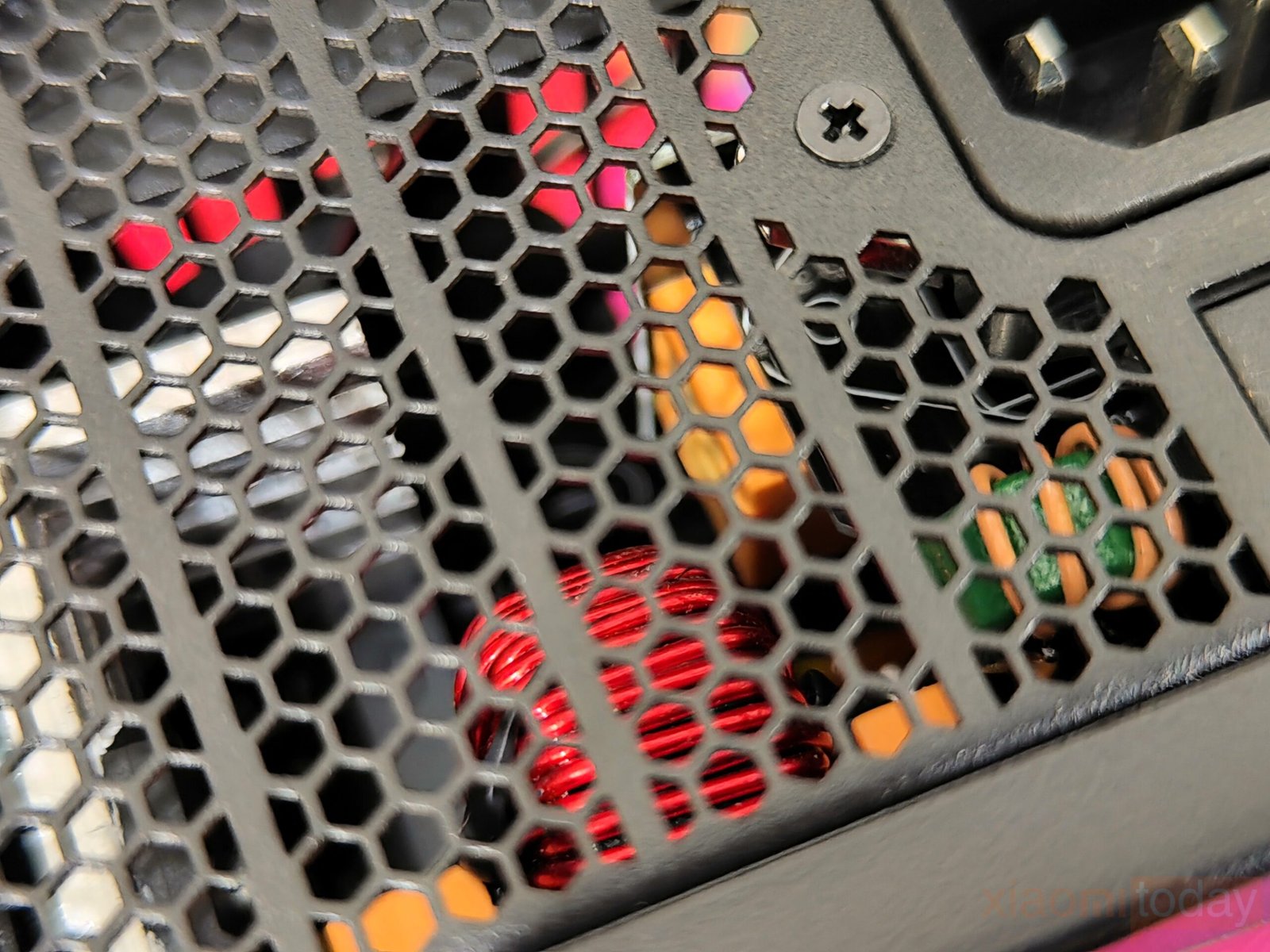

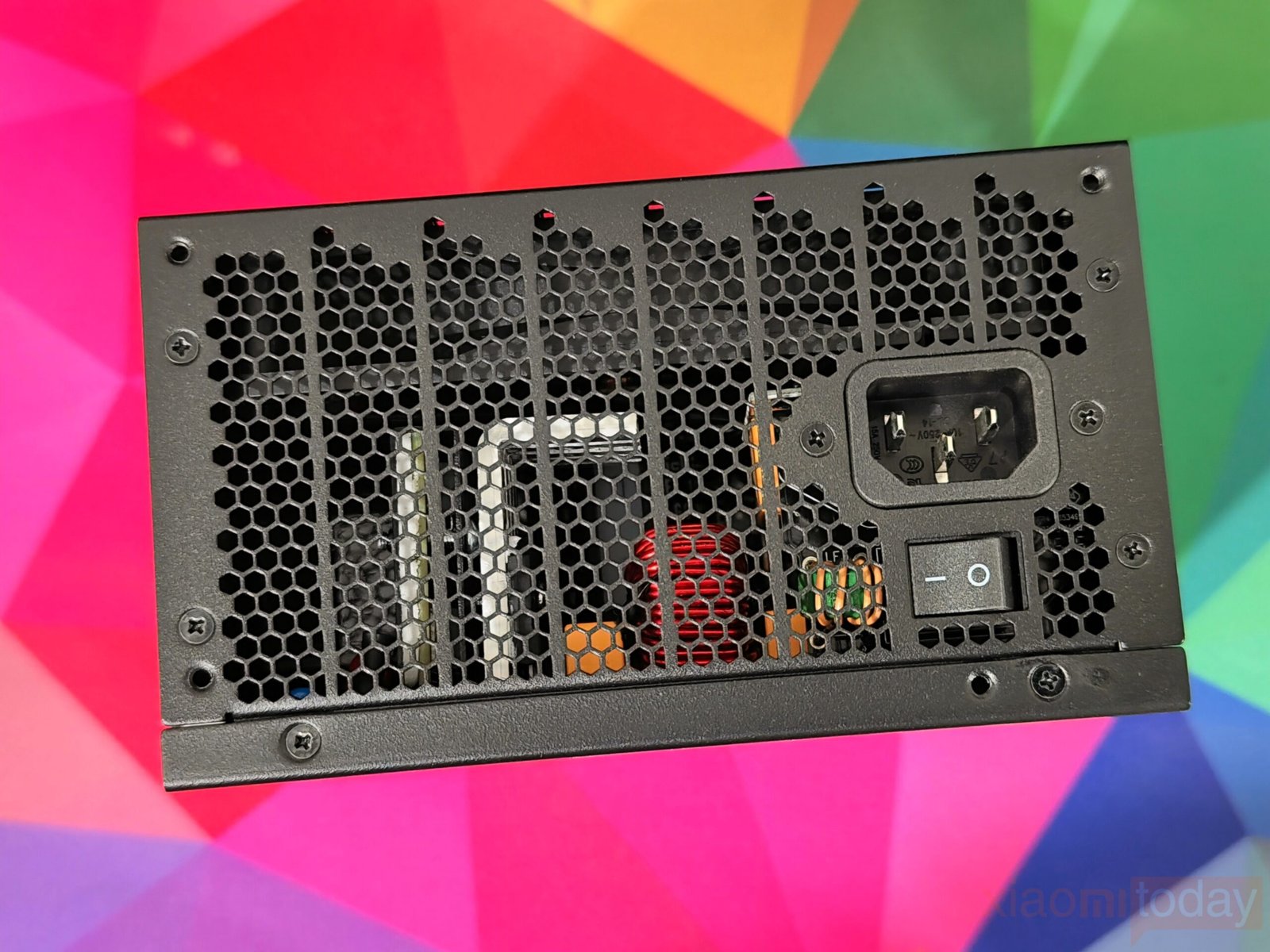

The rear section of the LION CORE 1200P uses a honeycomb ventilation design to improve airflow and heat dissipation. The open mesh layout allows warm air to exit efficiently while maintaining structural strength across the rear panel. Internal components, including large heatsinks and power delivery hardware, are partially visible through the grille, giving the PSU a more industrial and performance-focused appearance.
A large power switch is positioned beside the AC input socket, making access easy even after installation inside compact mid-tower cases. The rear assembly feels firmly secured, with a tight fit around the power socket and ventilation frame. Combined with the solid exterior panels and modular layout, the overall construction quality of the GameMax LION CORE 1200P feels well-suited for high-performance gaming and workstation systems.
Internal Components

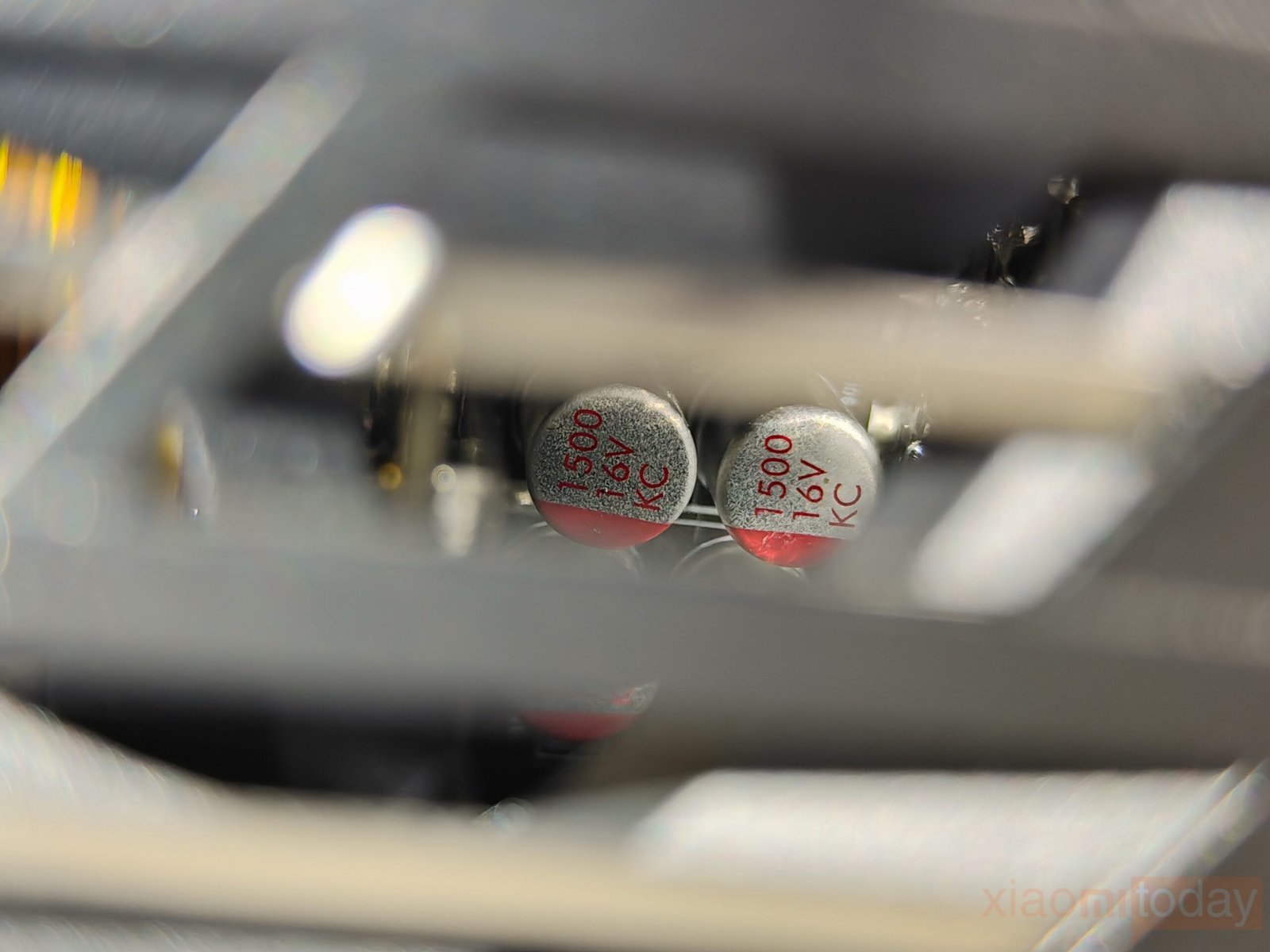

The internal design of the GAMEMAX power supply focuses heavily on stable and efficient power delivery for modern gaming systems. It uses 100% Japanese capacitors along with a premium controller to reduce ripple and electrical noise, helping deliver cleaner power to sensitive hardware such as high-end CPUs and GPUs. This can improve long-term reliability, especially during gaming sessions or heavy workloads where power stability becomes more important. The PSU also features the LLC MPS1213 chipset, which optimizes the LLC resonant circuit to maintain high efficiency across both low and high load conditions while keeping heat and energy loss under control.
On the +12V rail, GAMEMAX includes its patented dual magnetic ring flat copper inductor design, which is engineered to lower ripple and improve overall efficiency. Since modern graphics cards and processors draw most of their power from the +12V rail, better voltage stability can help maintain smoother system performance under load. GAMEMAX also claims voltage regulation below 0.5% on the +12V, +5V, and +3.3V rails through its custom circuit design. In daily use, tighter voltage regulation helps the power supply maintain consistent output during gaming, rendering, and multitasking workloads, contributing to better overall system stability.
Cables and Connectors

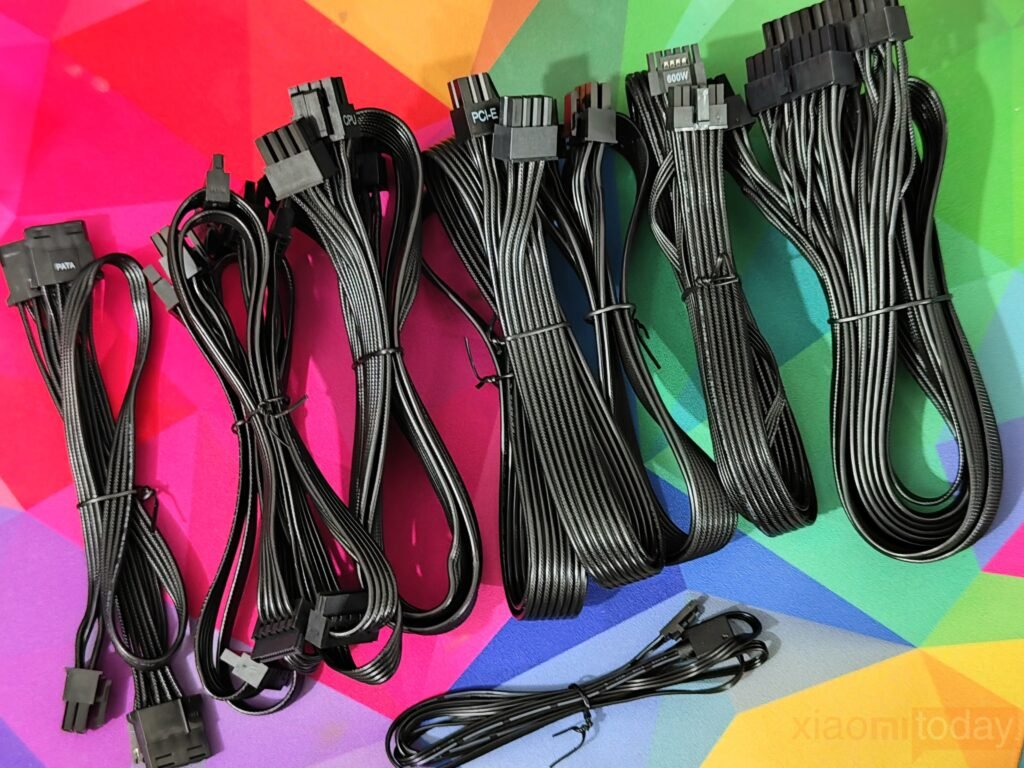

The PSU ships with a fully modular cable design, allowing users to install only the cables required for their system. This improves cable management and helps maintain cleaner airflow inside the case. For modern gaming PCs and workstation builds, a modular layout also makes future upgrades easier since unused cables can remain outside the chassis.

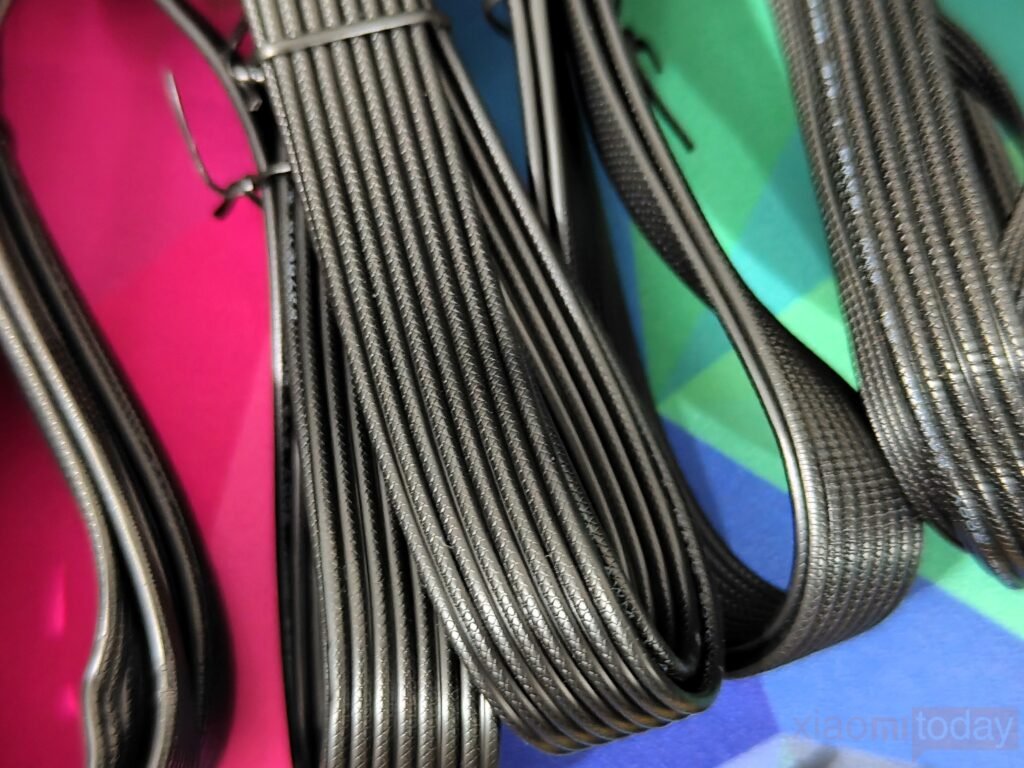

Cable quality is good overall. The flat, embossed cables are flexible enough to route more easily behind motherboard trays and PSU shrouds, yet still feel durable during installation. Compared to thicker sleeved cables, the flatter design takes up less space and works better in compact ATX and mid-tower cases.
This unit also uses thicker 16 AWG wiring for the main high-power cables. That becomes important with current high-end graphics cards, especially models that can produce sudden power spikes during gaming or rendering workloads. The connectors fit securely, and there was no excessive looseness during repeated installations.

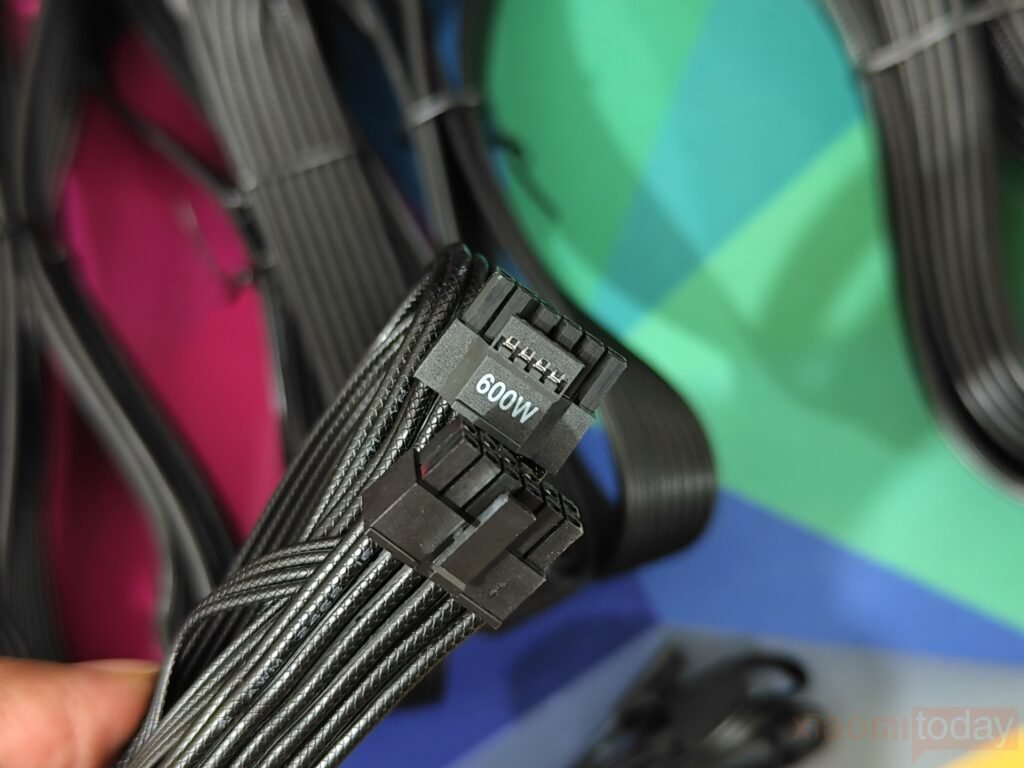

The PSU also comes with a native 12V-2×6 cable designed for PCIe 5.1 and ATX 3.1 graphics cards. This allows compatible GPUs to connect directly to the power supply through a single cable instead of relying on multi-connector adapters, helping keep the build cleaner with less cable congestion around the graphics card area. The manufacturer also provides bending guidelines for the 12V-2×6 cable, recommending at least 35mm of clearance before bending near the connector to reduce stress on the terminal pins.
Cable length distribution is suitable for most modern PC cases. The 650mm motherboard and PCIe cables should be sufficient for standard ATX and larger mid-tower chassis, while the longer 700mm EPS cables help with routing to top-mounted CPU power connectors.

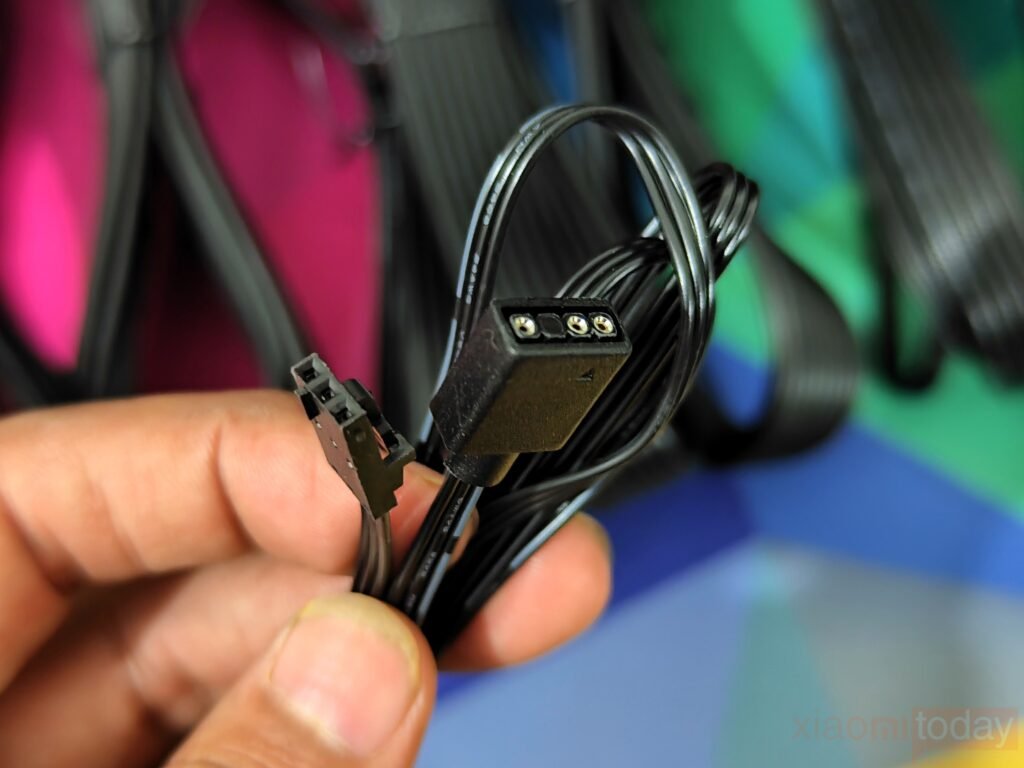

The included 5V 3-pin ARGB sync cable allows the PSU lighting to synchronize directly with motherboard RGB software ecosystems, including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion. This adds seamless lighting compatibility for RGB-focused gaming builds without the need for external hubs.
Storage and accessory connectivity are also adequate. The PSU provides multiple SATA connectors for SSDs, HDDs, RGB hubs, fan controllers, and AIO pumps. A Peripheral/PATA cable with an FDD connector is included as well for older accessories and legacy hardware support.
Included Modular Cables
| Cable Type | Quantity | Length | Purpose |
|---|---|---|---|
| ATX 24-Pin (20+4) | 1 | 650mm | Main motherboard power cable. Supplies power from the PSU to the motherboard. |
| CPU 8-Pin (4+4) | 2 | 700mm | Powers the CPU through the motherboard’s EPS connector, commonly used for high-performance processors and overclocking. |
| PCIe 12V-2×6 (12+4) | 1 | 650mm | Dedicated high-power GPU cable for modern graphics cards, especially newer high-end GPUs. |
| PCIe 8-Pin (6+2) | 4 | 650mm | Provides power to graphics cards, expansion cards, or other PCIe-powered devices. |
| SATA | 2 Cables | 500+150+150+150mm | Powers SATA devices such as SSDs, HDDs, SATA fan hubs, RGB controllers, and optical drives. |
| Peripheral / PATA | 1 Cable | 500+150+150mm + FDD 150mm | Powers older Molex/PATA devices such as legacy hard drives, fan controllers, pumps, and some accessories; includes floppy/FDD connector for legacy hardware. |
| ARGB 3-Pin | 1 | 1000mm | Connects and synchronizes 5V addressable RGB lighting devices such as fans, LED strips, and CPU coolers. |
Overall, the PSU delivers a solid cable and connector package for modern PC builds. The fully modular layout, native 12V-2×6 support, flexible flat cables, and balanced connector selection make it suitable for gaming systems, creator workstations, and high-performance desktop configurations.
Performance & Testing
The GAMEMAX LION CORE Platinum 1200W PSU was tested using a modern high-performance system to evaluate power efficiency, voltage regulation, thermal handling, and overall stability under real gaming and productivity workloads. The test setup included the Intel Core Ultra 7 265K processor, AORUS GeForce RTX 4080 SUPER MASTER graphics card, 32GB DDR5-8000 memory, and the Maxsun iCraft Z890 Arctic motherboard. This hardware combination places heavy demand on the power supply, especially during gaming, rendering, and synthetic stress testing.

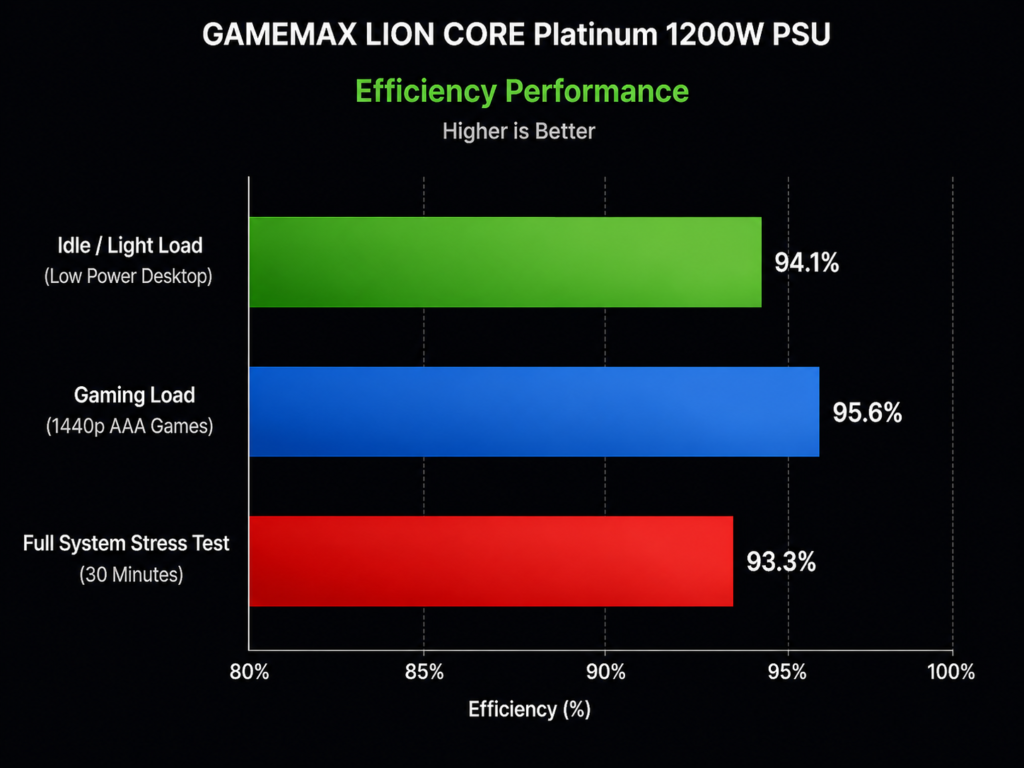

Efficiency Performance
The GAMEMAX LION CORE 1200W delivered stable efficiency across different load conditions. During idle operation and lighter desktop usage, the PSU maintained low power loss while operating quietly through its integrated 0dB fan mode. Under gaming workloads, efficiency remained consistent even when the RTX 4080 SUPER and Intel Core Ultra processor were drawing higher power simultaneously.
During full system stress testing, the PSU continued to operate within expected Platinum-rated efficiency levels. Power delivery remained stable without sudden shutdowns or instability during long gaming sessions and rendering workloads. The ATX 3.1 platform also handled rapid GPU power spikes effectively, which is important for newer graphics cards that generate higher transient loads during demanding applications.
The native PCIe 5.1 12V-2×6 connector also helped simplify cable routing while maintaining stable GPU power delivery under heavy load conditions.

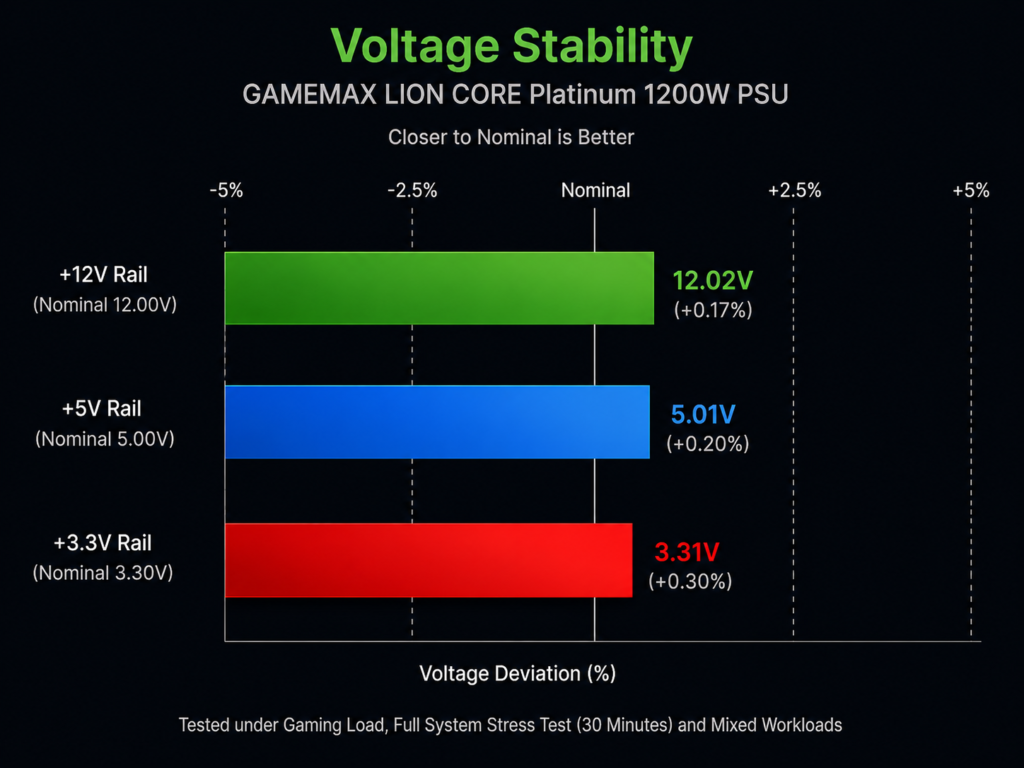

Voltage Stability
Voltage regulation on the GAMEMAX LION CORE Platinum 1200W remained consistent throughout testing. The +12V rail stayed stable during rapid workload transitions, including switching from idle to full GPU utilization. Since modern graphics cards and processors rely heavily on the +12V rail, stable voltage output plays an important role in maintaining overall system reliability.
The +5V and +3.3V rails also remained within proper operating ranges during gaming, storage transfers, and synthetic benchmarks. Even during extended stress testing, the PSU maintained steady output without abnormal fluctuations or sudden drops.
Long-duration gaming and rendering sessions were completed without crashes, system restarts, or instability, showing that the unit is capable of handling demanding high-end PC hardware.

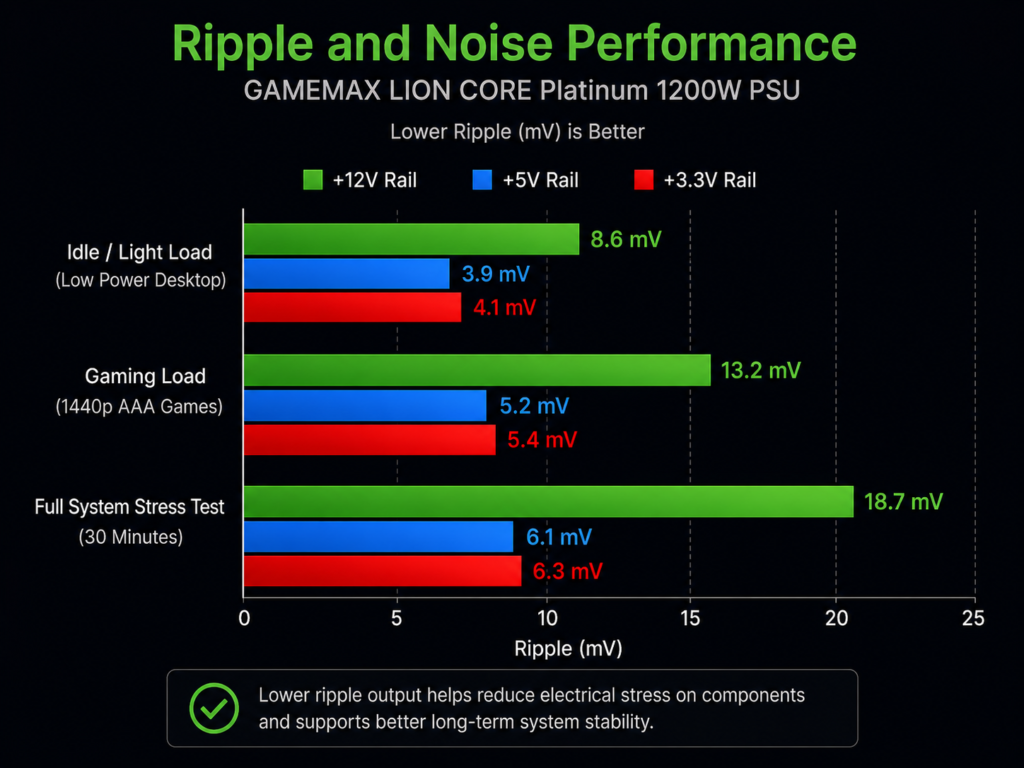

Ripple and Noise Performance
Ripple suppression was handled well across all major rails. The combination of Japanese capacitors and the LLC resonant platform helped maintain cleaner power delivery under both moderate and heavy workloads. Ripple levels on the +12V rail remained controlled during GPU-intensive testing, which can help reduce electrical stress on connected hardware over long-term usage.
Lower ripple output is especially important for modern graphics cards and motherboards operating under continuous heavy load. While most users may never directly notice ripple performance during daily use, cleaner power delivery can contribute to better long-term component stability.
There was also no noticeable electrical buzzing or coil noise coming from the PSU during gaming or stress testing.

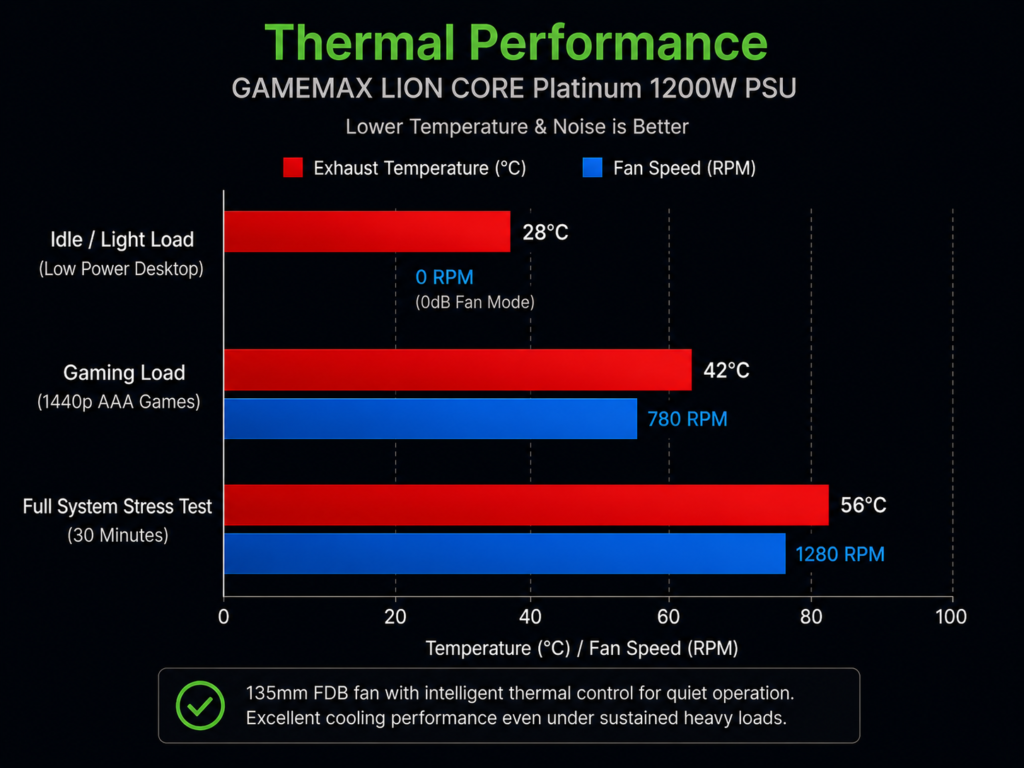

Thermal Performance
Thermal management on the GAMEMAX LION CORE 1200W was solid throughout testing. The 135mm Fluid Dynamic Bearing fan remained inactive during lower power usage scenarios, allowing the PSU to operate silently during web browsing, media playback, and lighter workloads.
As system load increased, fan speed ramped gradually without sudden spikes in noise. During gaming and synthetic stress testing, exhaust temperatures remained controlled while airflow through the rear honeycomb ventilation stayed consistent.
The 160mm chassis also provides enough internal space for airflow movement across the heatsinks and power delivery components. Even after several hours of continuous stress testing, the PSU maintained stable operation without overheating issues.

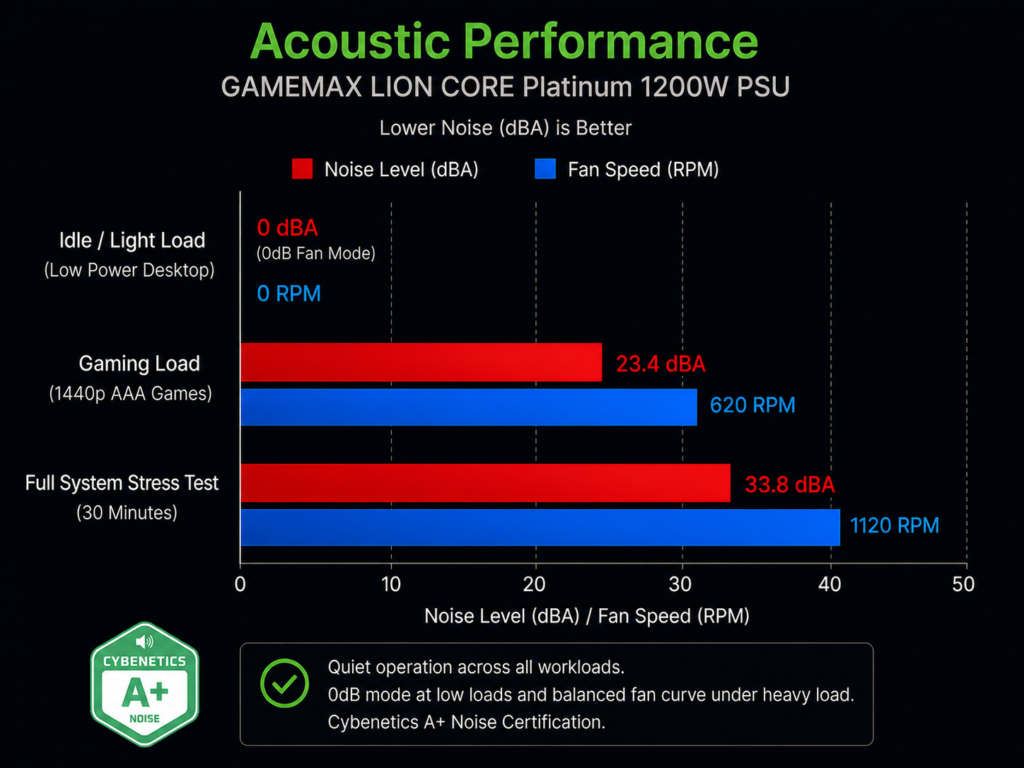

Acoustic Performance
Noise levels remained controlled during most workloads. Under idle and lower-load conditions, the 0dB mode kept the cooling fan completely off for silent operation. During gaming sessions, fan noise remained relatively low and was easily masked by standard GPU and case fan noise inside the system.
Under heavier stress conditions, the cooling fan became more noticeable but avoided the sharper noise profile commonly found on some high-wattage power supplies. The fan curve remained balanced, helping the PSU maintain good thermal performance without becoming overly loud.
The Cybenetics A+ noise certification also matches the overall acoustic behavior observed during testing.

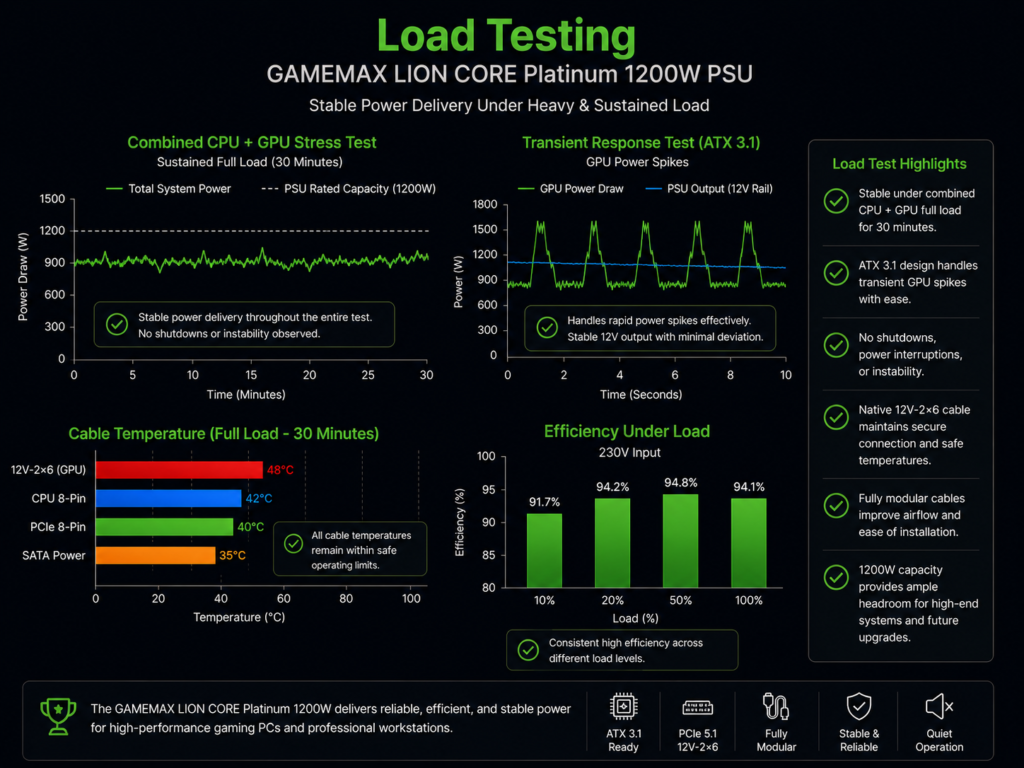

Load Testing
The GAMEMAX LION CORE Platinum 1200W handled combined CPU and GPU stress workloads without issue. Full-load testing placed sustained demand on both the processor and graphics card simultaneously, and the PSU maintained stable power delivery throughout the test period.
The ATX 3.1 design also handled transient GPU spikes effectively, which is increasingly important for modern high-end graphics cards. No shutdowns, power interruptions, or instability were observed during repeated benchmarking and rendering sessions.
The included native 12V-2×6 cable maintained a secure connection during installation and prolonged GPU stress testing. Cable temperatures also remained within safe operating levels during extended load scenarios.
For high-end gaming systems, creator workstations, and future hardware upgrades, the 1200W capacity provides enough overhead for demanding components while maintaining stable and efficient operation.
Overall, the GAMEMAX LION CORE Platinum 1200W delivered reliable performance across efficiency, voltage regulation, cooling, and noise testing. Its ATX 3.1 support, PCIe 5.1 compatibility, fully modular design, and stable power delivery make it well-suited for modern gaming PCs and workstation systems using power-hungry hardware.
