Hall Effect keyboards have started gaining more attention lately, and Melgeek is one of the few brands taking a serious shot at making them mainstream. The MelGeek MADE68 Ultra is their top-tier model, aimed at gamers who care about fast response, precision, and a solid build. It comes loaded with features like Rapid Trigger, Snap Tap, and a custom magnetic switch that promises smooth and accurate keystrokes, especially useful in fast-paced games. The keyboard uses a 68-key layout, which keeps things compact without dropping the keys most people rely on. It saves space on the desk, making it a good fit for smaller setups or for players who travel with their gear. The CNC-machined aluminum case adds a bit of heft and polish to the overall look and feel, giving it a clean and sturdy presence.
Melgeek also worked with TTC to develop the KOM Magnetic Hall Effect switch, which is exclusive to this model. These switches offer ultra-fine actuation control, making every press feel intentional. It’s especially noticeable in shooters, where quicker resets can make a real difference. Add hot-swappable support, and the MADE68 Ultra starts to look like a serious contender for both competitive play and long-term usability. Its Rapid Trigger and Snap Tap features allow for on-the-fly actuation adjustments, which can be a game-changer for fast-paced gaming. While the bold design language may not appeal to minimalists, it fits well with the board’s aggressive stance on performance.
What sets the MADE68 Ultra apart isn’t just the switch technology—it’s how everything comes together. Between the build quality, the responsiveness of the switches, and the flexibility of hot-swappable sockets, there’s a lot here to unpack. Over the next few sections, we’ll take a closer look at what it’s like to use this keyboard day to day and whether it lives up to the expectations set by its premium design and feature set.
Specifications
| Model | MelGeek MADE68 Ultra |
|---|---|
| Number of Keys | 68 |
| Layout | ANSI(US) |
| Hot-Swappable | Yes |
| Switch Type | Magnetic |
| Keycap Material | PBT |
| Rapid Trigger | Yes |
| Adjustable Actuation | 0.1–4.0 mm |
| Points Sensitivity | 0.01 mm (TTC KOM Switch) |
| Dynamic Keystrokes | 4-in-1 action keys |
| Compatible System | Mac/Windows/Linux |
| Connectivity Mode | Wired |
| N-key Rollover Support | Yes |
| Polling Rate | 8000Hz |
| Backlight | RGB |
| Dimension | 319x117x40mm |
| Weight | 1300g |
Unboxing
The MelGeek MADE68 Ultra comes in a box that’s clean and to the point. The front is finished in matte silver with bold black text that simply states the product name—no flashy images or marketing slogans. In one corner, there’s a small logo and a mention of MelGeek’s 10th anniversary, which adds a nice touch without being too loud. The back of the box lists the key specs and model details in a clear and organized way, making it easy to see what you’re getting. The stylized “MADE68ULTRA” text gives it a slightly technical look, but nothing overdone. It’s a no-nonsense presentation that reflects the product’s focus on quality and detail.
The MelGeek Mojo68 Made Ultra comes in a well-structured box with solid protection. The keyboard is wrapped in a soft white sleeve and sits snugly in a thick foam cutout to prevent any movement during shipping. Right above it, there’s a slim compartment labeled “Accessories” that holds a keycap puller, a Type-A to Type-C USB Cable, a few extra keycaps for Mac users, and a quick start guide. You also get a couple of MelGeek stickers with a bee design.
Design

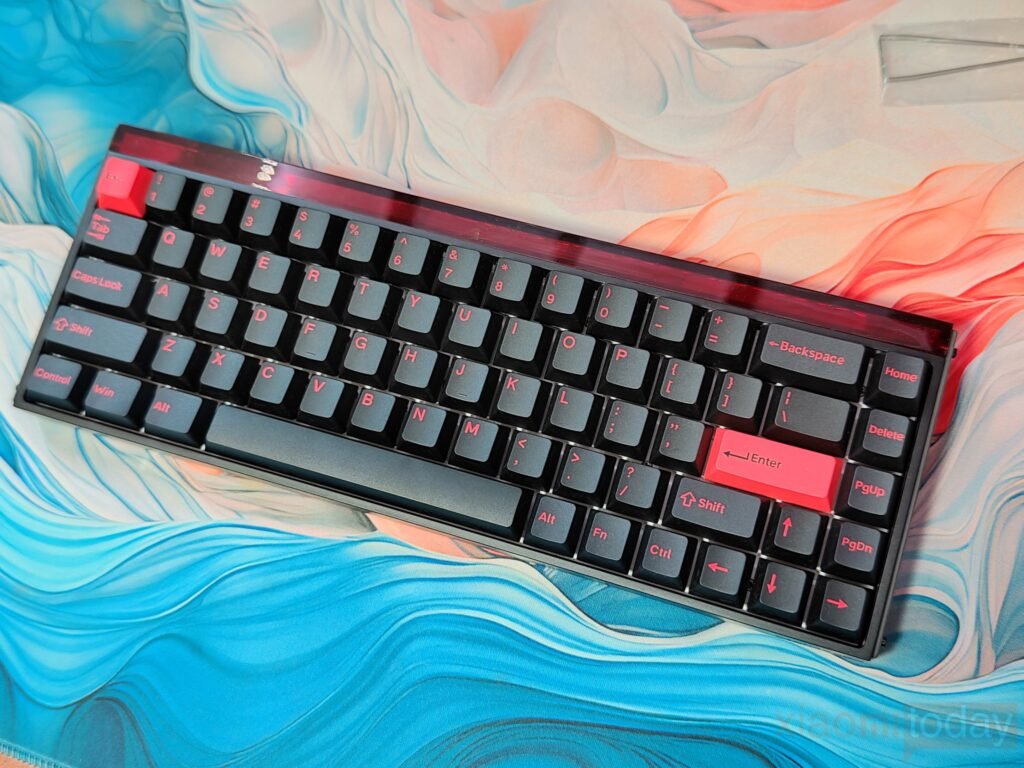

The MelGeek MADE68 Ultra has a clean, compact 65% layout with a solid and well-built frame. The Red/Black version we have for review features a striking combination of deep matte black keycaps with sharp red legends and accent keys, including the ESC and Enter. It’s a bold look that doesn’t rely on RGB lighting to stand out. The red translucent lightbar on the top adds a nice touch, giving the keyboard a subtle glow that complements the overall color scheme. It’s clear that the design is aimed at users who want something that looks sharp on the desk but still feels refined. MelGeek also offers other color options like White/Silver and Green/Black, giving users some flexibility to match their setup or personal taste.
This keyboard brings a strong first impression with its full aluminum alloy case, offering a solid, weighty feel that immediately sets it apart from typical plastic builds. The 1300g heft gives it a planted presence on the desk, while the compact 319 x 117 x 40 mm footprint keeps it space-efficient. The machining and polishing work is clean and consistent, with smooth edges and a uniform surface that speaks to a well-controlled manufacturing process. The forged carbon fiber side panels add a distinct visual touch without overdoing it—they blend well with the aluminum base and give the keyboard a modern, slightly aggressive look. It’s a well-balanced design that feels just as good to use as it looks.
The side of the MelGeek keyboard has a clean and simple look, built with a solid aluminum frame that gives it a strong and durable feel. The MelGeek logo is lightly engraved into the metal, keeping the design subtle. The edges are sharp and straight, giving it a modern and tidy appearance. On the bottom, there’s a grid pattern along with rubber pads on each corner to help keep the keyboard from sliding. There’s also a slogan, “PLAY FOR FUN, NOT TO WIN,” printed underneath, showing the brand’s casual and playful vibe. The overall design is neat and well put together.
The keyboard’s top rear edge features a red translucent bar that runs across the top edge. It’s a simple design choice that gives the board a clean look without standing out too much. When the keyboard is powered on, a red light glows from within the bar, giving it a clean, uniform illumination that enhances the look without being overly flashy. The lighting is evenly diffused and works well with the board’s minimal aesthetic.

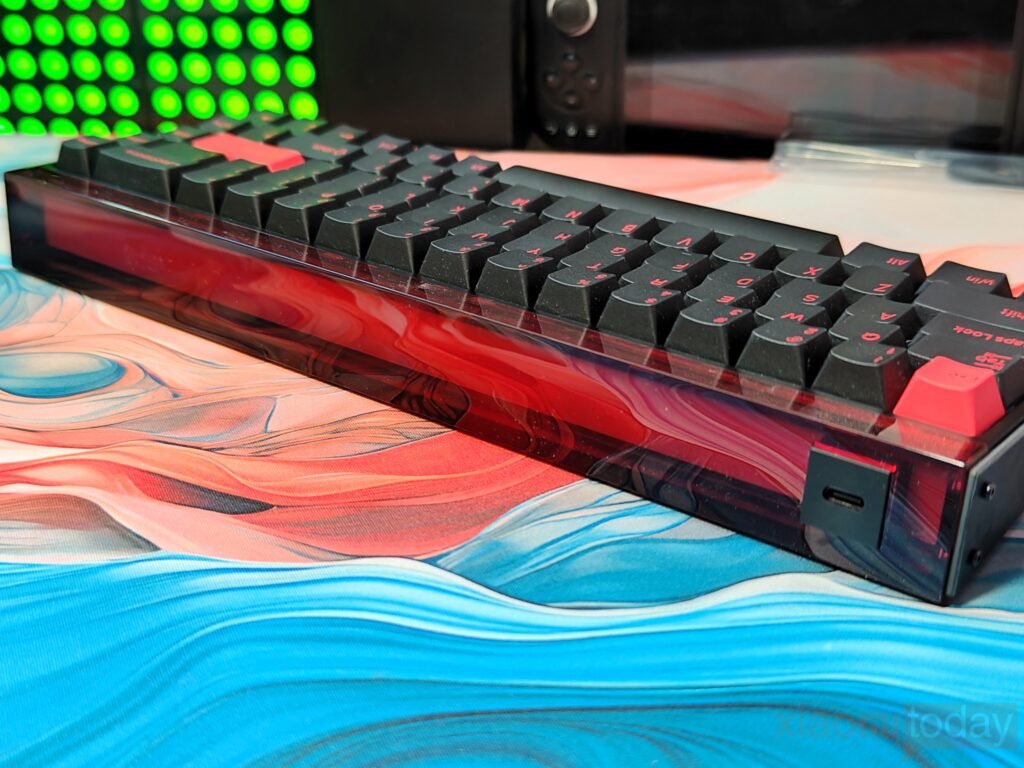

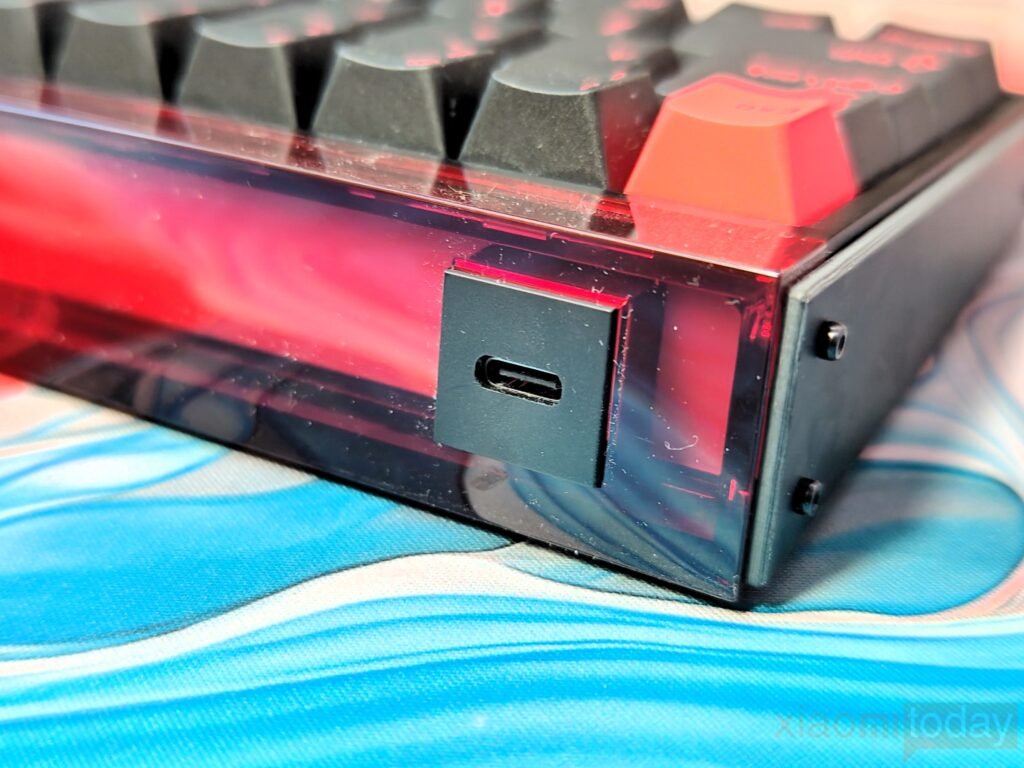

On the right side, there’s a USB-C port set into a small black cutout. The placement is practical and doesn’t get in the way during use. The cable connects securely and doesn’t feel loose or awkward when plugged in.

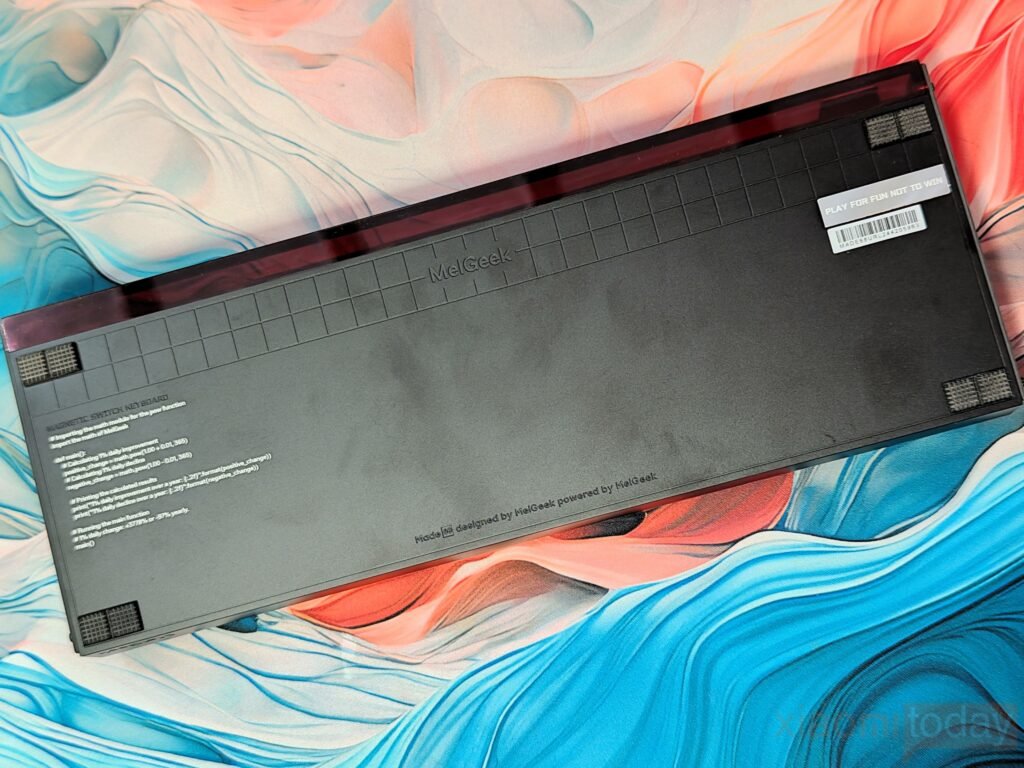

The MelGeek MADE68 Ultra Magnetic Keyboard is designed with long-term comfort in mind. It’s a 6.5° typing angle that feels natural and helps ease wrist tension during extended use. This slight tilt makes a noticeable difference, especially during longer typing or gaming sessions. The keyboard attaches securely with magnets, so it stays firmly in place on the desk without slipping, even with heavy use. It’s a simple but effective approach that adds to the overall user experience.
Inside the keyboard, Poron dampening foam helps reduce noise and adds a softer feel when typing. Each keystroke has a solid and muted sound, without the hollow echo found in cheaper builds. The foam also softens the impact when the keys bottom out, which can help reduce finger fatigue over time. This makes the keyboard feel more stable and better suited for long hours of use.
Below the plate, a mix of silicone cushioning and sound-absorbing pads—along with a PORON shock-absorbing layer at the bottom—adds another level of refinement. These materials help keep the sound profile low and consistent while adding a slight softness to each press. It’s not just about making the keyboard quieter; it also makes the overall feel tighter and more controlled. For anyone who values quieter setups or shared workspaces, this build strikes a good balance between performance and comfort.
Keycaps and RGB Backlight

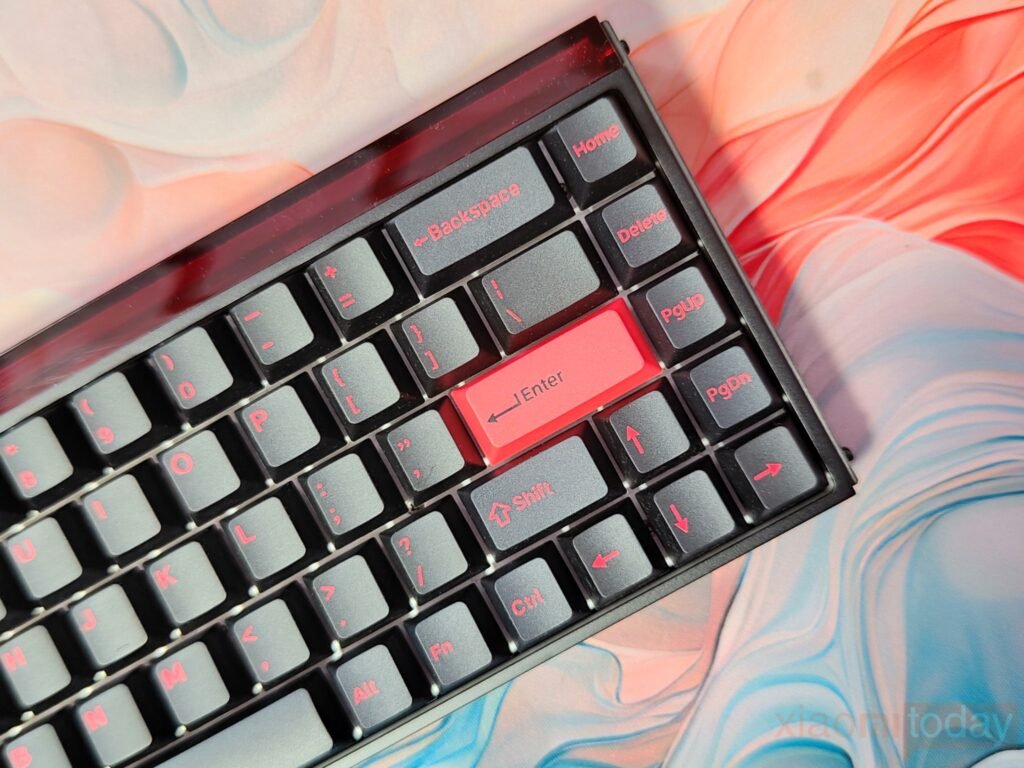

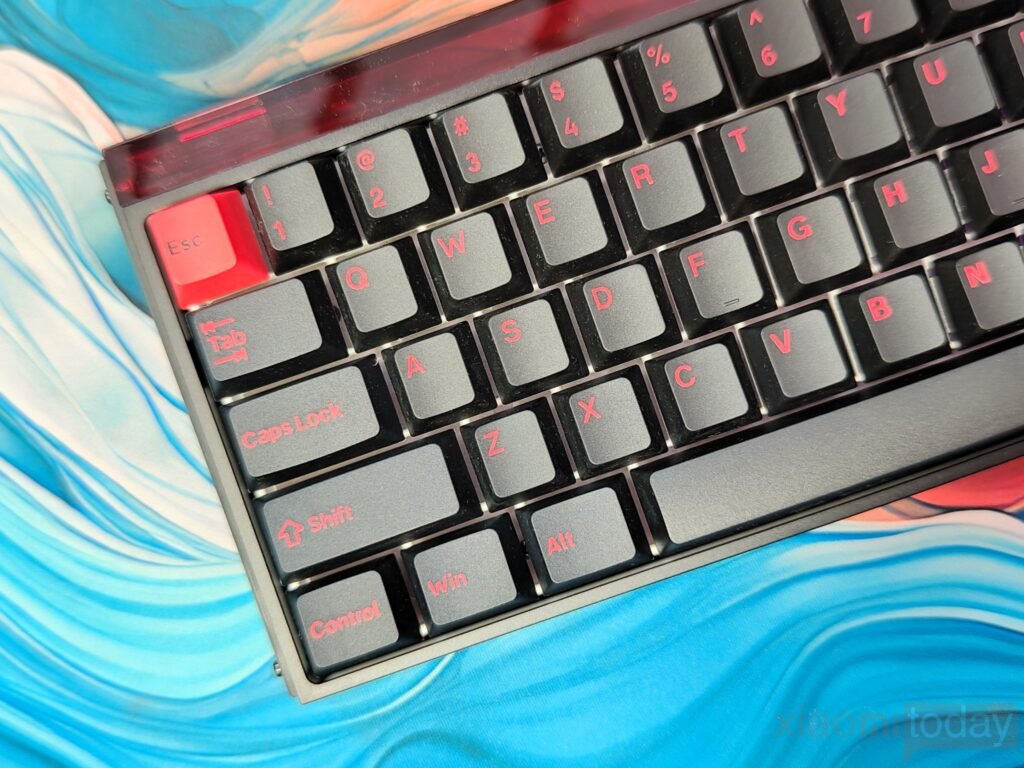

The Melgeek MADE68 Ultra comes with a bold yet well-balanced color scheme. Most of the keycaps are black with red legends, while the Escape and Enter keys stand out in bright red, adding a nice contrast without being too flashy. The legends are crisp and easy to read, using a simple font that fits the overall layout. This mix of subtle dark tones with selective red highlights gives the keyboard a clean, purposeful look that works well for both gaming and everyday use.
The keycaps are made from double-shot PBT, which is known for its durability and resistance to shine over time. The surface has a slightly textured feel that helps with grip, especially during longer sessions. The Cherry profile offers a low, curved shape that feels comfortable and familiar for both typing and gaming. Overall, the build and finish of the keycaps feel solid, with no noticeable inconsistencies across the board.

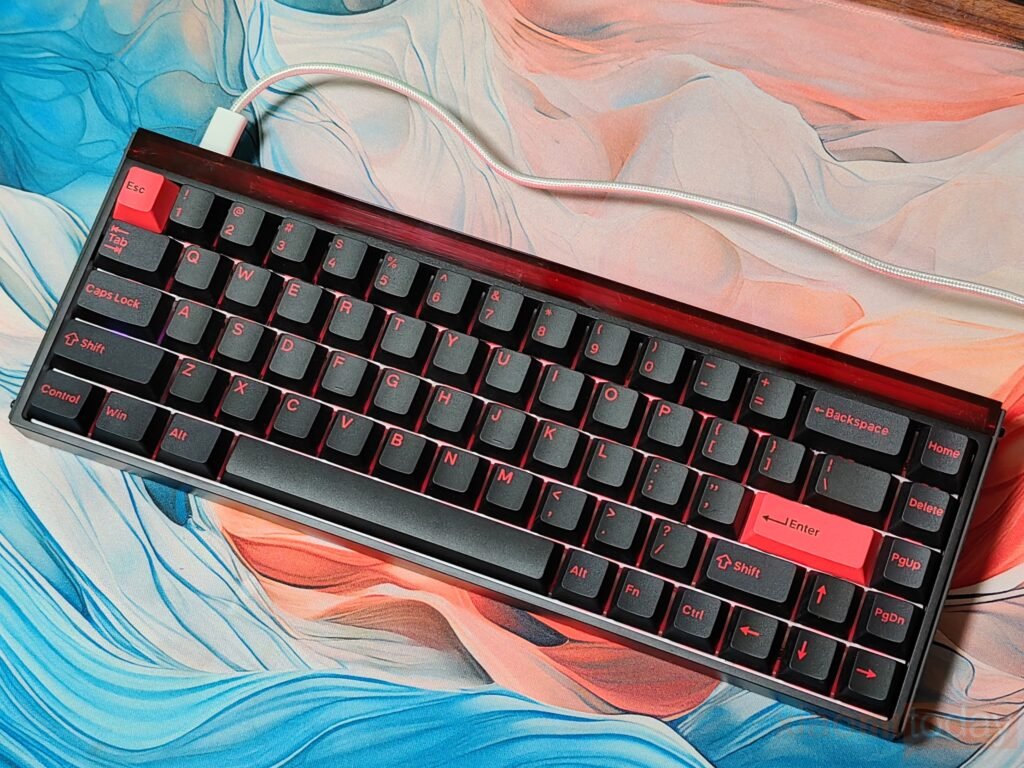

The RGB lighting on the MADE68 Ultra is evenly distributed and offers a decent range of effects, including static colors, breathing, and wave patterns. It’s customizable through the software, allowing users to tweak brightness, speed, and color modes to suit their setup. However, the overall brightness is on the lower side, even at max settings.
In well-lit environments, the lighting doesn’t pop as much as expected, especially through the darker keycaps. While it adds a nice touch in dimmer rooms, those looking for a more vivid RGB experience might find it a bit underwhelming.
TTC KOM Magneto Switches

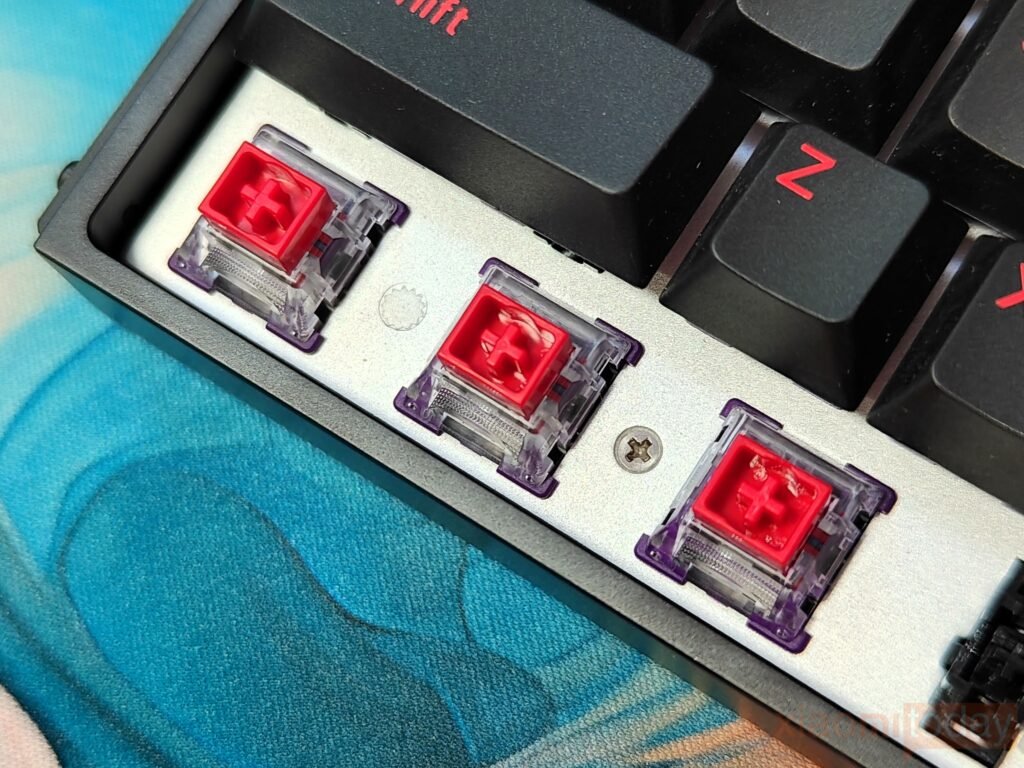

After spending a couple of weeks with the TTC KOM Magneto switches installed on a MelGeek MADE68 Ultra, I can confidently say this is one of the more refined magnetic switch options out there right now. The first thing you notice is just how smooth the keystroke feels—there’s no mechanical grind or scratchiness, and the travel from top to bottom is extremely clean. There’s also zero noticeable wobble once the switches are seated with keycaps, which immediately gives off a sense of high build quality.
What stood out most during testing was the adjustable actuation range. I had mine set at around 1.2mm for gaming, and the response was lightning-fast—ideal for FPS titles like CS2 and Overwatch 2. Later, I bumped the actuation to about 2.5mm for general typing and editing tasks, which felt much more deliberate and comfortable. This flexibility is a big deal if you’re someone who uses the same board for both work and play. And with Rapid Trigger enabled, the keys instantly re-register the moment you start lifting your finger. That’s a big advantage in games that require quick directional changes.
The 21mm spring inside each switch adds just enough resistance to make the keystroke feel snappy without being stiff. Compared to standard linear mechanical switches I’ve used like Gateron Reds or even Cherry MX Speed Silvers, the KOM Magnetos feel more controlled, especially during rapid inputs. The long spring helps return the switch to the top position quickly, which actually makes a difference when you’re double-tapping or chaining movements. It feels fast, but not twitchy.

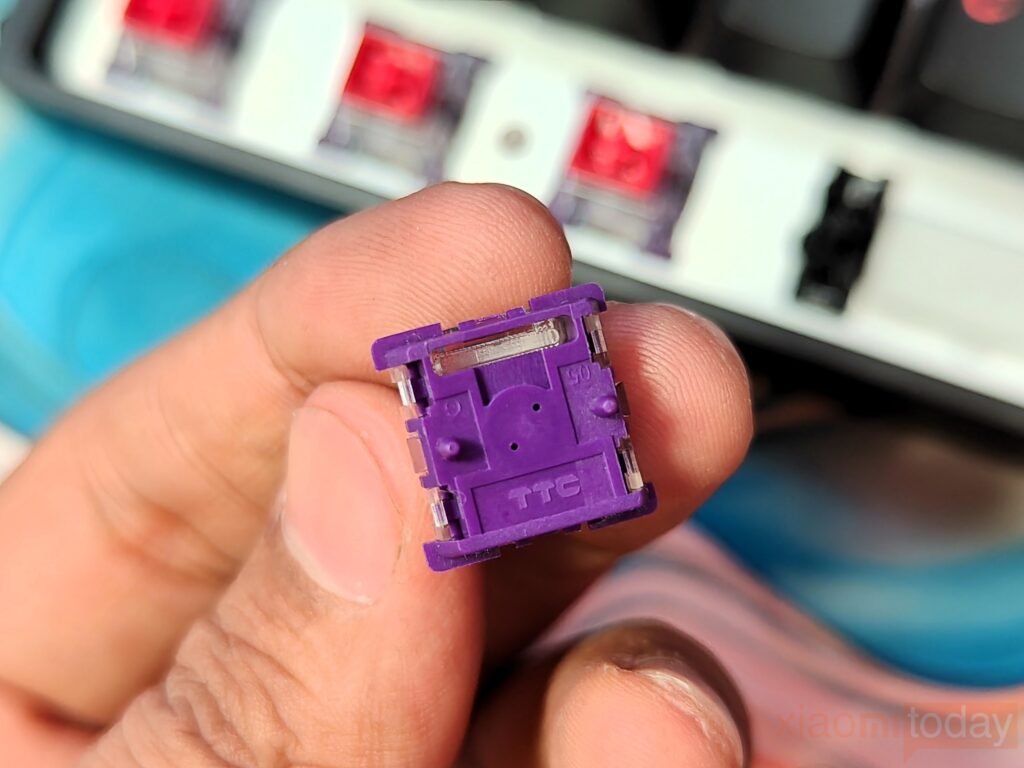

Build-wise, the KOM Magneto switches have some interesting design choices. The dustproof stem design actually works well to keep particles out—after opening one of the switches up, I didn’t see any buildup despite heavy use. TTC’s split stem design feels like a genuine innovation rather than just a gimmick. Keypresses are centered and stable, with no lateral shift, even on larger keys like the spacebar. The housing feels tight, and you can tell there was attention paid to tolerances.
In terms of compatibility, the switches fit easily into several hot-swappable magnetic boards I had on hand—tested on the MADE68 Ultra, Wooting 60HE, and Nuphy Air96 Magnetic Edition. No issues during installation. Whether the board supported 3-pin or 5-pin setups, the switches slotted in snugly and worked right away. If you’re looking to try these out, make sure your board supports magnetic switches specifically—these aren’t meant for traditional mechanical PCBs.
On the software side, features like Snap Tap and 4-in-1 Action Keys added real depth for gaming. In Valorant, Snap Tap made quick directional flicks smoother—it cuts out the delay you’d normally feel when trying to strafe fast. With the 4-in-1 feature, I had a macro set up to activate weapon switching, voice chat, and a reload combo on a single tap for testing. It worked without hiccups and could definitely be useful in competitive setups.
Overall, the TTC KOM Magneto switches hit a sweet spot. They’re fast, feel premium, and offer more tuning flexibility than most traditional switches. If you’re using a compatible keyboard and want to push performance further, especially for fast-paced games, they’re absolutely worth trying. They’re not just for esports players either. Even for general typing, the smooth feel and consistent travel made daily use enjoyable.
MelGeek Hive Software
MelGeek’s HIVE software, available through both a web interface and a Windows app, serves as the main tool for customizing their keyboards. It allows users to remap keys, create and assign macros, and use features like Dynamic Keystroke Strategy (DKS) and SnapTap, which is designed to reduce accidental inputs. The layout of the software is straightforward, making it easy to navigate without needing to dig through menus. Changes apply quickly, and the macro system works as expected without noticeable bugs. The software also supports over-the-air updates, so future features like TGL and MT modes can be added without needing to flash firmware manually.
Web Driver

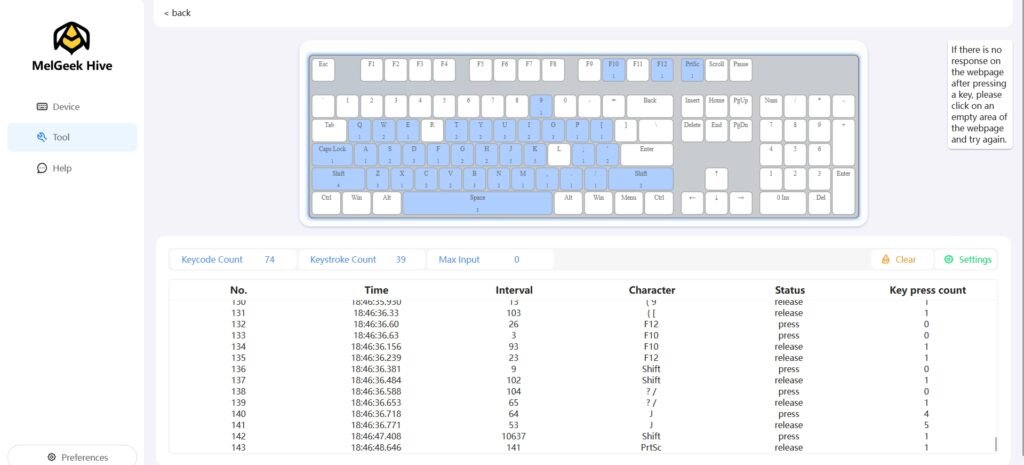

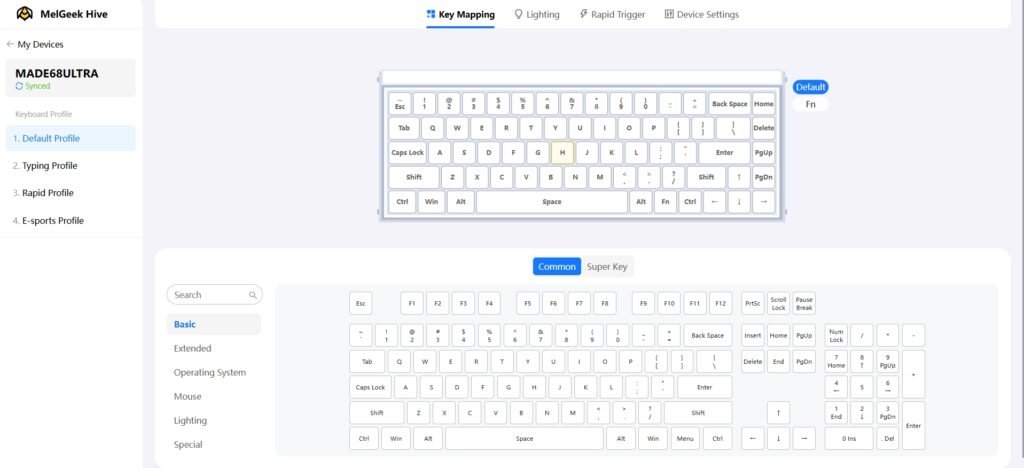

The MelGeek HIVE Web Driver offers a clean and efficient setup process for the MelGeek MADE68 Ultra keyboard. As soon as the keyboard is plugged in, the software recognizes it and displays a clear dashboard with all the main settings neatly organized. The interface feels intuitive, with tabs like Key Mapping, Lighting, Rapid Trigger, and Device Settings easy to navigate. Remapping keys is straightforward thanks to the visual keyboard layout, which shows changes in real-time. Lighting controls are simple but get the job done, with preset modes and brightness adjustment available. It’s not overloaded with features, but the basics are well-covered and work as expected.
The software has a Rapid Trigger section. Here, you can adjust actuation points and sensitivity using responsive sliders that are easy to understand. Setting the actuation to 1.5mm noticeably improved key response in games, and the software provides helpful explanations for each setting. The Keystroke Analyze tool tracks your typing and gaming activity, offering a breakdown of key usage, which can be useful for refining performance. Power-saving options like auto-sleep and calibration are also included and easy to configure. While the lighting features could use more customization, the overall experience with the HIVE Web Driver is smooth and focused on giving users solid control without overcomplicating things.
Windows Driver
After using the web driver, I also tested the Windows app, which mirrors the same functionality but feels slightly smoother in performance, offering a more seamless experience for managing the keyboard directly on the desktop.

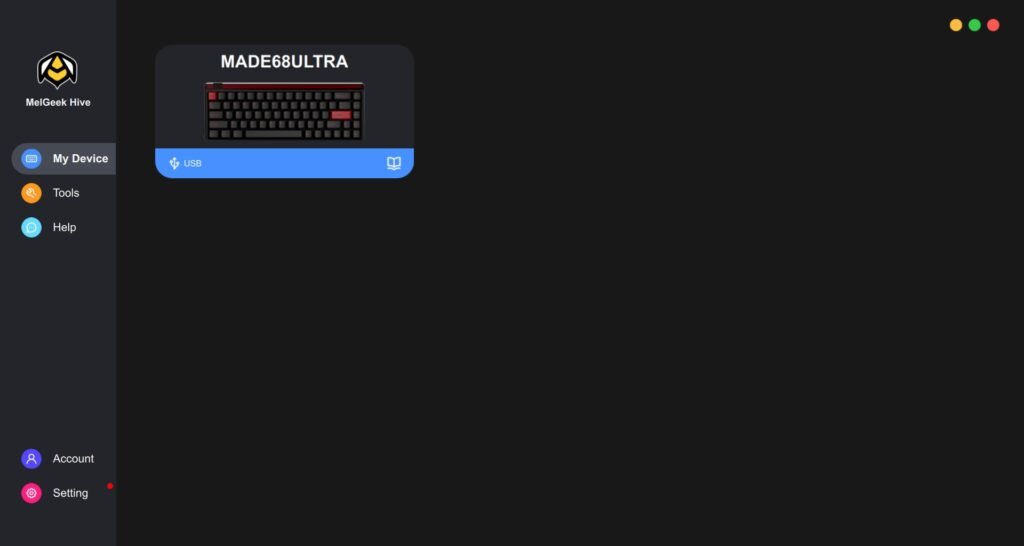

The MelGeek HIVE Windows Driver for the MADE68ULTRA keyboard keeps things simple and functional. Once installed, the software opens to a well-organized interface that shows useful information right away, like the firmware version, connection type, and sleep timer setting. Everything is laid out clearly, with sections like Keyboard Profile and Tools accessible from the sidebar. It’s easy to find what you need without digging through menus. Firmware updates can be handled either automatically or by loading a file manually, which gives users a bit of flexibility. The dark background with blue highlights makes the software easy to read, especially in low-light setups.

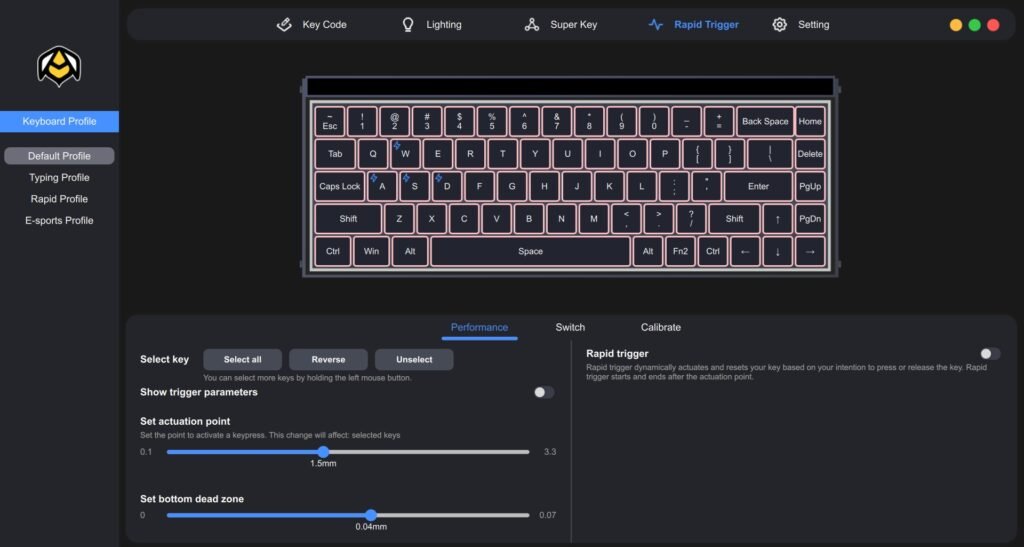

Customization options are solid, giving users good control without being overwhelming. The Keycode tab handles key remapping, and there are a few profile presets for different use cases as typing or gaming. Rapid Trigger adjustment is available too, with actuation and reset points adjustable in small steps, which helps for games where quick inputs matter. Lighting controls include brightness and speed settings, along with a simple color picker. While it covers the basics well, the lighting section could use a few more preset effects to match what other keyboards in this range offer.
Overall, HIVE does a solid job of giving users control over how their keyboard behaves, whether for gaming, productivity, or general use.
Connectivity
The MADE68 Ultra features a dedicated wired connection, which is a practical choice for gamers who prioritize stability and low input latency. Unlike wireless keyboards that can occasionally suffer from signal interference or battery-related slowdowns, a wired setup ensures consistent performance during long gaming sessions. The single-wired mode on the MADE68 Ultra eliminates any concerns about sudden dropouts or delays, making it ideal for competitive play. Data transmission is fast and reliable, and with power delivered directly through the cable, there’s no need to worry about charging or battery management.
Use Experience
After using the MelGeek MADE68 Ultra for a week, it’s clear this keyboard is designed with serious gamers in mind. The TTC KOM magnetic switches deliver a smooth, precise keystroke that shines in fast-paced games. I found the adjustable actuation points to be especially useful. In Valorant and CS2, I set the actuation to 1.1mm for quicker, more responsive taps, which made strafing and shooting more precise. For games like PUBG, I adjusted it to 2.0mm for a more comfortable feel during long sessions. The ability to fine-tune the keystroke was a big plus, and it made the keyboard feel more personal.
The Rapid Trigger feature really stood out during competitive gaming. In Call of Duty: Warzone, the faster key response helped with quick movements and precise actions, particularly when aiming or peeking around corners. Fortnite also felt smoother, with building and editing ramps becoming more fluid. Snap Tap ensured that key presses were registered immediately, even during fast movements. The solid aluminum frame and overall build quality ensured there were no issues with flexing or key presses not registering, which is important during intense gaming sessions.
Beyond gaming, the MADE68 Ultra was comfortable for typing tasks as well. The keycaps felt sturdy and offered a good balance between feedback and comfort, with the switches providing a smooth feel without being too loud. Thanks to the internal dampening foam, the keyboard produced a softer, quieter sound compared to many other mechanical boards. It was easy on the fingers during long typing sessions, and the key response remained consistent, which is something I appreciate for both work and play.
