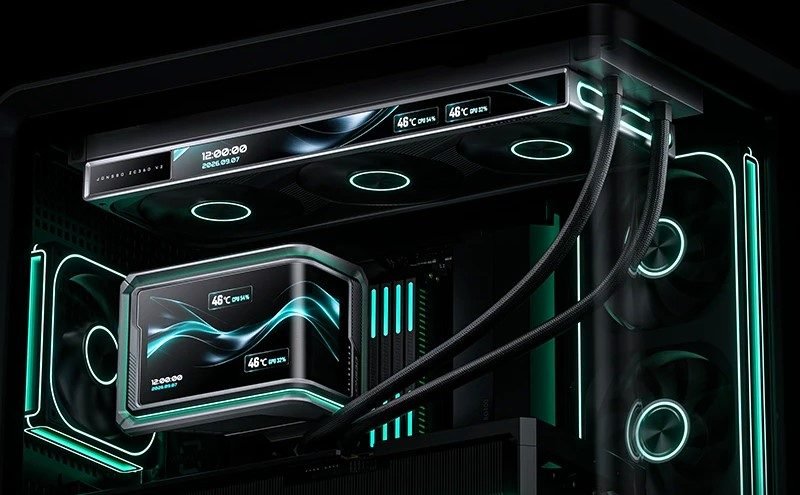

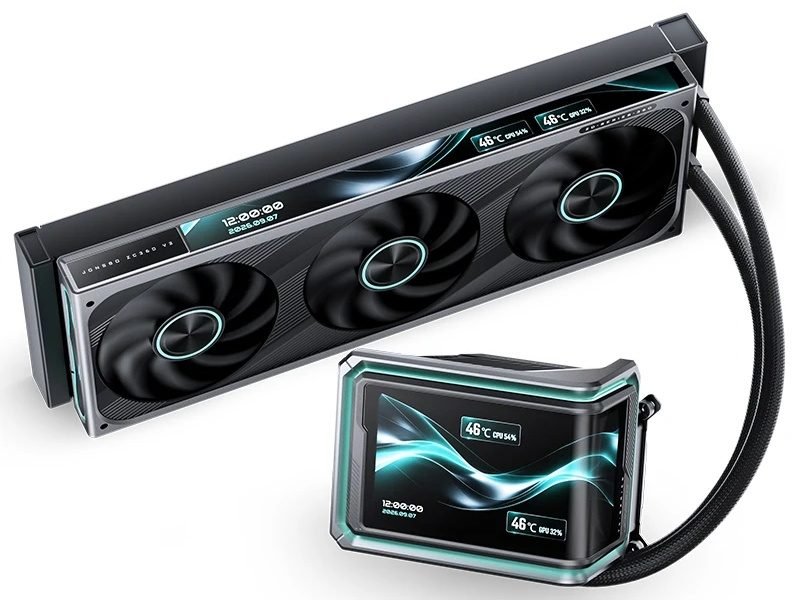

JONSBO has listed its new TX-360CG all-in-one (AIO) liquid CPU cooler on its official website, featuring a 6.67-inch curved display on the pump block and an 11.2-inch strip screen integrated into its ZC-360V2 fan assembly. The new cooler combines a display-focused design with a 325W D-TDP rating and a high-speed water pump rated at 5,000 RPM.
The TX-360CG uses a 27mm-thick radiator with a 20mm fin thickness, while the included fans measure 28mm thick. JONSBO has also equipped the cooler with 400mm EPDM+IIR tubing, giving PC builders additional flexibility when routing the tubes inside a compatible chassis.
The pump block’s curved screen has a resolution of 2400 × 1080 pixels, a rated brightness of 300 nits, and a 60Hz refresh rate. The fan-mounted strip display uses a resolution of 140 × 1920 pixels and offers 350 nits of brightness, with its refresh rate also reaching 60Hz. These screens give the TX-360CG a different look from conventional AIO liquid coolers that use smaller pump displays or rely entirely on standard fan designs.

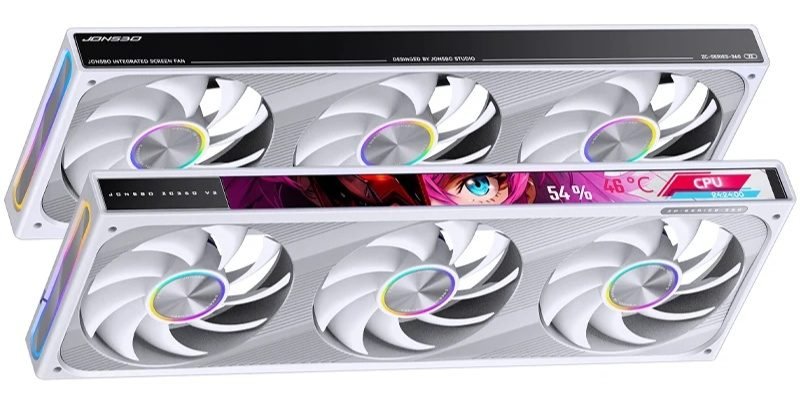

JONSBO is also selling the ZC-360V2 integrated fan separately. Buyers can choose between black and white versions, with both forward- and reverse-blade options available. These configurations give users more flexibility when planning airflow and matching the fans to their PC build.
Although JONSBO lists a 325W D-TDP rating for the TX-360CG, actual cooling performance will depend on the processor, workload, ambient temperature, and system configuration. Independent testing will be needed to establish its thermal performance and noise levels under sustained CPU loads. Pricing and availability details have not been provided in the supplied product information.
JONSBO TX-360CG Specifications
| Specification | Details |
|---|---|
| Model | JONSBO TX-360CG |
| Product Type | AIO Liquid CPU Cooler |
| Cooling Rating | 325W D-TDP |
| Water Pump Speed | 5,000 RPM |
| Pump Display | 6.67-inch curved screen |
| Pump Display Resolution | 2400 × 1080 pixels |
| Pump Display Brightness | 300 nits |
| Pump Display Refresh Rate | 60Hz |
| Fan Model | ZC-360V2 |
| Fan Display Size | 11.2-inch strip screen |
| Fan Display Resolution | 140 × 1920 pixels |
| Fan Display Brightness | 350 nits |
| Fan Display Refresh Rate | 60Hz |
| Radiator Thickness | 27mm |
| Radiator Fin Thickness | 20mm |
| Fan Thickness | 28mm |
| Tubing Length | 400mm |
| Tubing Material | EPDM+IIR |
| Fan Blade Options | Forward and reverse |
| Fan Colors | Black and white |
| Price | Not announced |
| Availability | Not announced |
