COLORFUL iGame X870E VULCAN OC Breaks Ryzen 7 9800X3D Overclocking Record Ahead of Launch

Colorful Technology has officially introduced the iGame X870E VULCAN OC, its new flagship motherboard built on AMD’s X870E platform. Targeted at enthusiasts and competitive overclockers, the motherboard has already gained attention after setting a new overclocking record with the AMD Ryzen 7 9800X3D processor ahead of its retail launch.

Using the iGame X870E VULCAN OC, the Ryzen 7 9800X3D was pushed to a peak frequency of 7335.48 MHz. This result places COLORFUL at the top of global high-frequency rankings for this CPU model, highlighting the board’s focus on extreme tuning and electrical stability.

The iGame X870E VULCAN OC is designed to extract maximum performance from AMD’s Ryzen 9000 X3D processors. The motherboard combines a high-current power layout, reinforced cooling hardware, and firmware-level tuning tools intended for sustained high-load operation and manual overclocking.

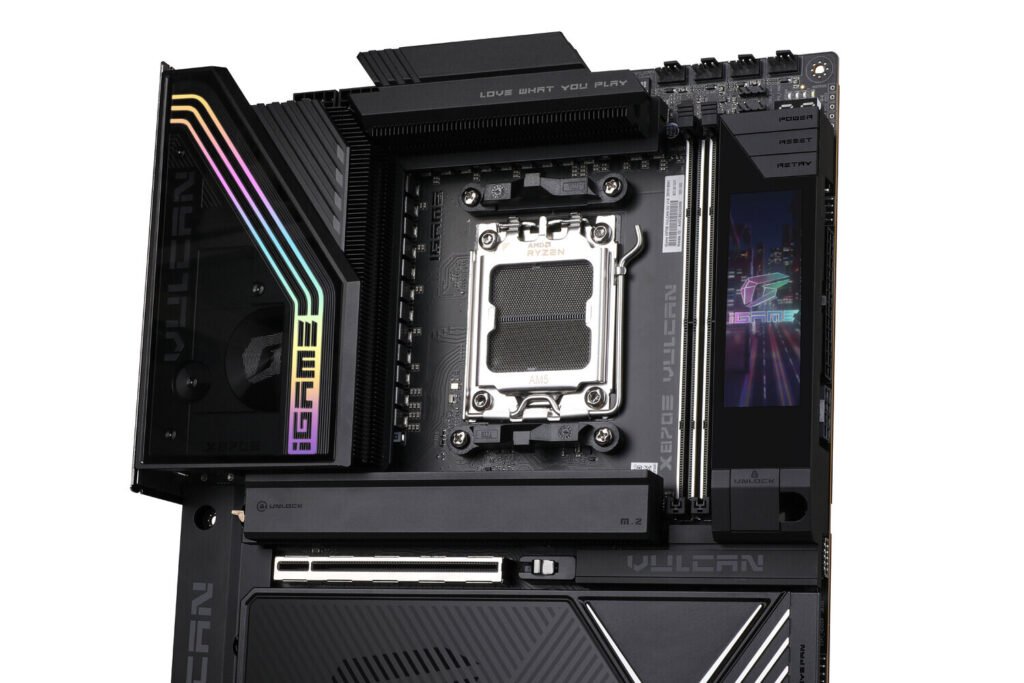

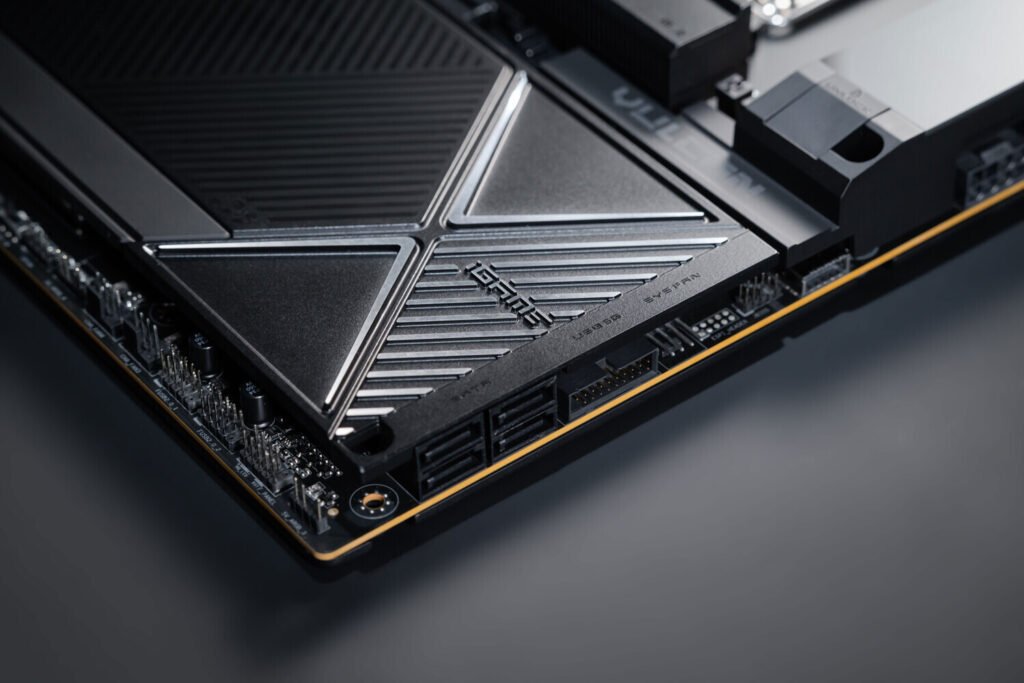

In terms of design, the board follows the Vulcan series’ industrial look, finished in black with large metal heatsinks covering critical components. A fin-array cooling structure and a full-coverage metal backplate are used to improve thermal performance and maintain system stability during prolonged workloads.

A built-in iGame Smart LCD is positioned near the VRM area, featuring a 268 × 800-pixel display for system monitoring and visual customization. Integrated iGame RGB lighting is also included, allowing users to adjust lighting effects without affecting airflow or structural rigidity.

Power delivery is a key focus of the iGame X870E VULCAN OC. The motherboard uses an 18 + 2 + 2 phase power design with 110 A DrMOS stages, supported by dual 8-pin CPU power connectors. A server-grade 10-layer PCB with an electroless silvering process helps improve signal quality, especially during high-frequency operation. Memory support includes dual-channel DDR5 with speeds up to 10400 MT/s, along with Intel XMP and AMD EXPO profile compatibility.

For overclockers, the board includes several hardware-level tools. On-board shortcut buttons allow quick adjustments during testing, while a debug LED provides real-time diagnostic information. Dual BIOS chips with a physical switch add protection during firmware tuning, and external base clock frequency control enables fine-grained adjustments.

Expansion and connectivity options align with current AM5 platform standards. The motherboard features one PCIe 5.0 x16 slot for graphics cards and five M.2 slots for storage, including three PCIe 5.0 interfaces. Networking support includes a 5 GbE Ethernet controller and an integrated Wi-Fi 7 module.

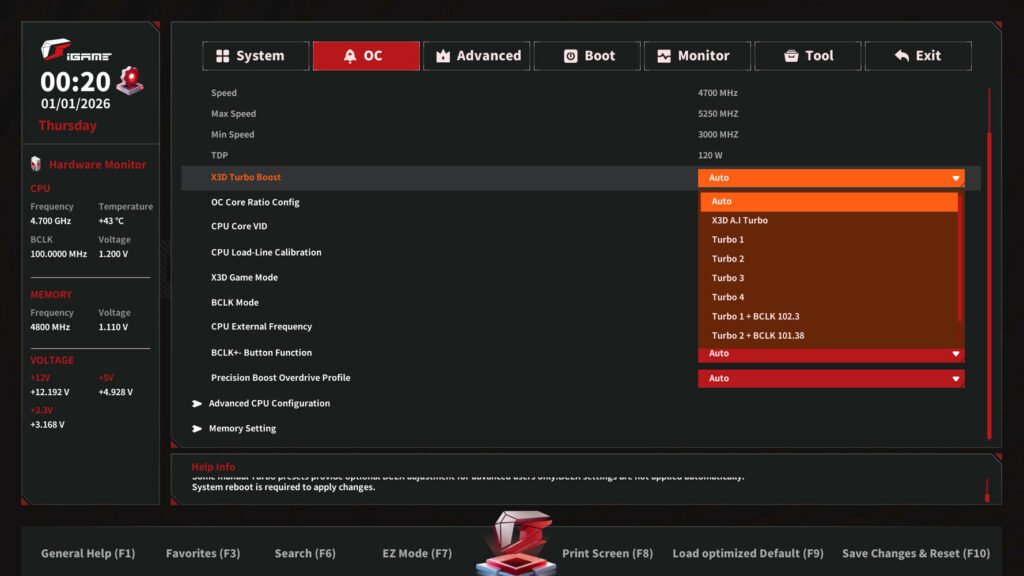

To further optimize AMD X3D processors, COLORFUL has added X3D AI Turbo, a tuning feature exclusive to this flagship model. A dedicated one-click overclocking button on the rear I/O allows users to apply performance settings without entering the BIOS. The BIOS also includes an X3D AI High Frame Rate Mode that automatically adjusts base clock and Precision Boost Overdrive parameters, with additional profiles available for manual tuning.

With its early overclocking record and feature set focused on Ryzen X3D processors, the iGame X870E VULCAN OC positions itself as COLORFUL’s most performance-oriented AM5 motherboard so far. Pricing and availability details are expected closer to the official market launch.

COLORFUL iGame X870E VULCAN OC Specifications
