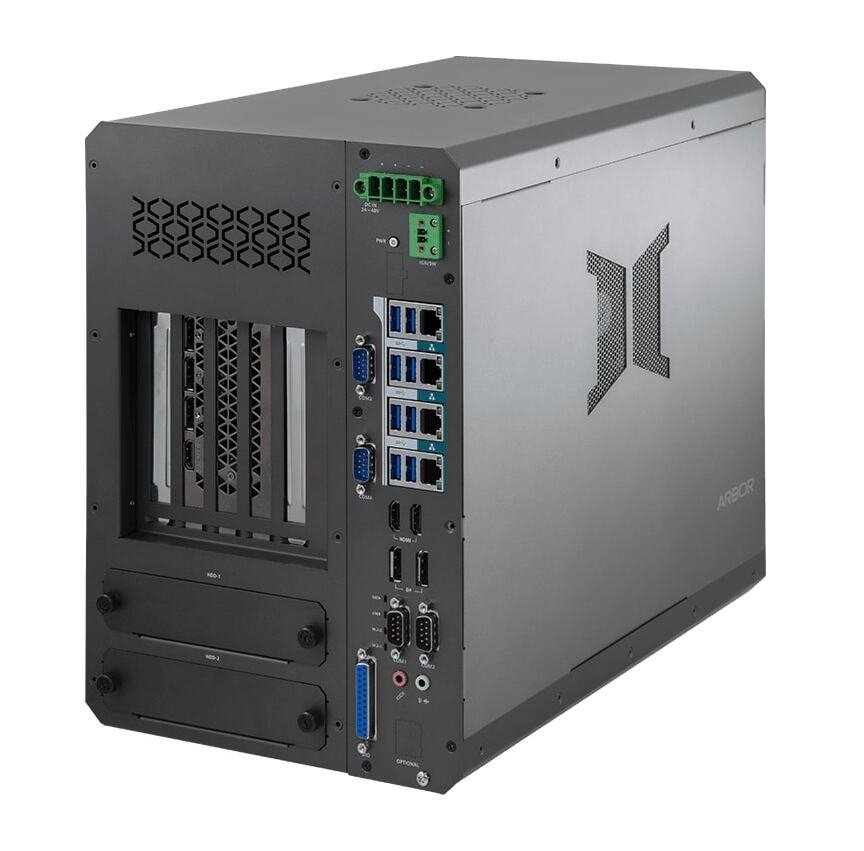

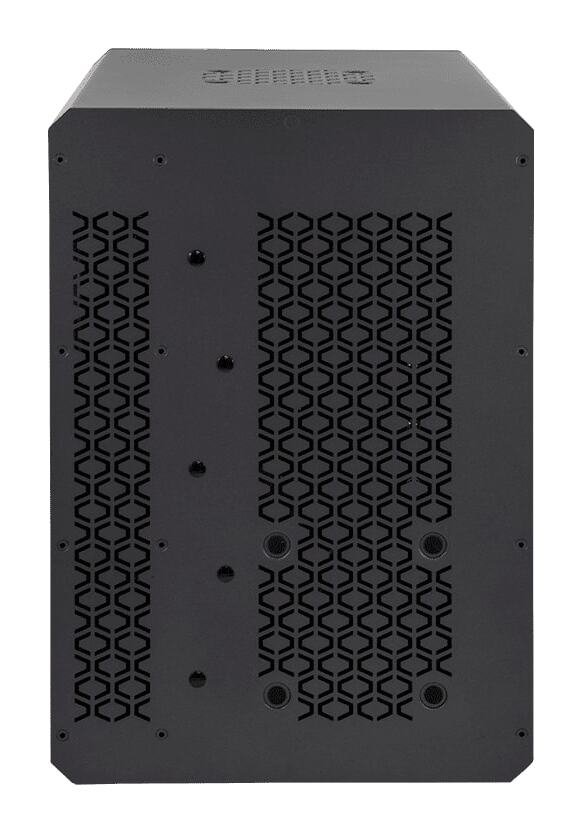

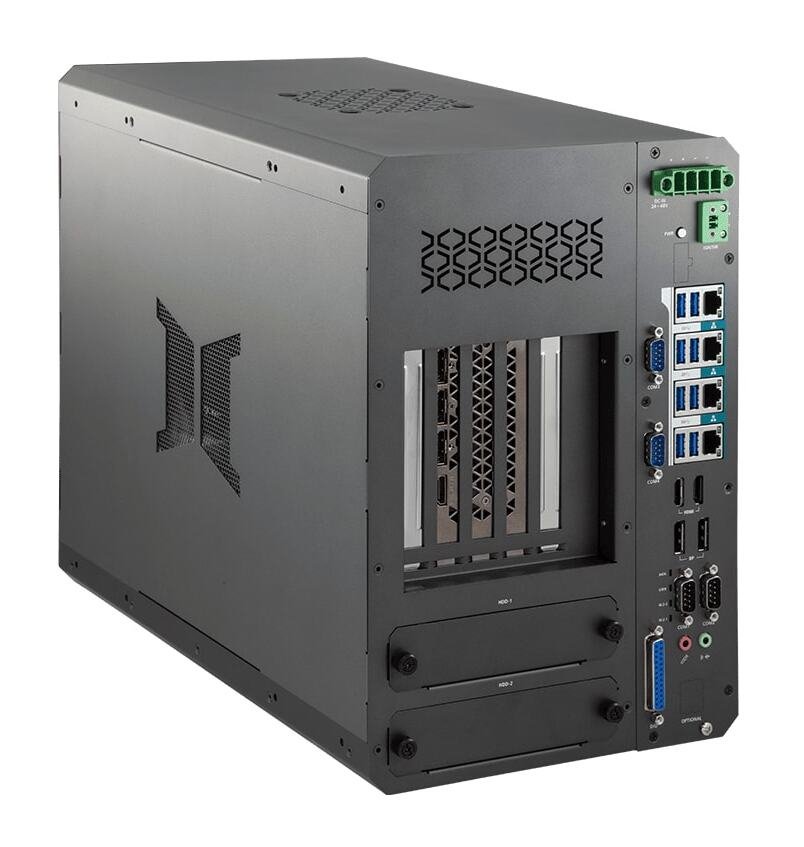

ARBOR Technology has announced the FPC-9309W-G5, a new industrial Edge AI platform designed for organizations deploying artificial intelligence workloads in manufacturing, transportation, and machine vision environments. The system combines Intel Core Ultra Processors (Series 2) with support for NVIDIA RTX 50 Series graphics cards, including GPUs with power requirements of up to 575W, allowing businesses to run AI inference and data processing directly at the edge.
The FPC-9309W-G5 is built for applications that require continuous AI computing without depending on cloud infrastructure. By pairing Intel’s latest processors with high-performance NVIDIA GPUs, the platform is designed to handle real-time image analysis, AI vision, industrial automation, and advanced analytics. ARBOR says the platform includes an optimized thermal and power design to maintain reliable operation during demanding workloads.
To support industrial deployments, the system offers multiple connectivity and expansion options. It features four 2.5 Gigabit Ethernet ports for high-speed networking, multiple PCIe expansion slots for additional hardware, and front-accessible I/O that simplifies installation and maintenance. Storage flexibility is provided through two front-accessible SATA SSD bays and two NVMe SSD slots with support for RAID 0, RAID 1, and RAID 5, allowing users to configure storage for either higher performance or improved data protection.
Display connectivity includes two HDMI and two DisplayPort outputs capable of supporting two independent displays. The platform also provides eight USB 3.2 ports with data transfer speeds of up to 10 Gbps, making it suitable for connecting cameras, sensors, storage devices, and other industrial peripherals.
The system supports a wide-range 24V to 48V DC power input, making it easier to integrate into industrial installations. Additional deployment features include configurable ignition power control, power on/off delay control, TPM 2.0 hardware security, and PWM fan control for thermal management. Wireless connectivity can also be expanded through an M.2 B-Key slot that supports storage or optional 5G/LTE modules, along with an M.2 E-Key slot for Wi-Fi and Bluetooth modules.
Key features of the ARBOR FPC-9309W-G5 include:
- Intel Core Ultra Processors (Series 2)
- Support for NVIDIA RTX 50 Series GPUs up to 575W
- GPU support for cards up to 357.6 mm in length
- Wide-range 24V–48V DC power input
- Four 2.5 Gigabit Ethernet ports
- Two HDMI and two DisplayPort outputs
- Two front-accessible SATA SSD bays and two NVMe SSD slots
- RAID 0, RAID 1, and RAID 5 support
- Eight USB 3.2 ports with up to 10 Gbps transfer speeds
- Multiple PCIe expansion slots
- TPM 2.0 hardware security
- Configurable ignition power control and power delay functions
- PWM fan control
- M.2 B-Key slot for storage or 5G/LTE modules
- M.2 E-Key slot for Wi-Fi and Bluetooth expansion
The FPC-9309W-G5 expands ARBOR Technology’s Edge AI portfolio by offering a platform that combines modern Intel processors, support for NVIDIA’s latest RTX 50 Series GPUs, and industrial-grade connectivity in a single system. Its hardware configuration is intended for AI-driven applications such as automated inspection, intelligent transportation systems, robotics, and smart manufacturing, where reliable local processing and continuous operation are essential.
