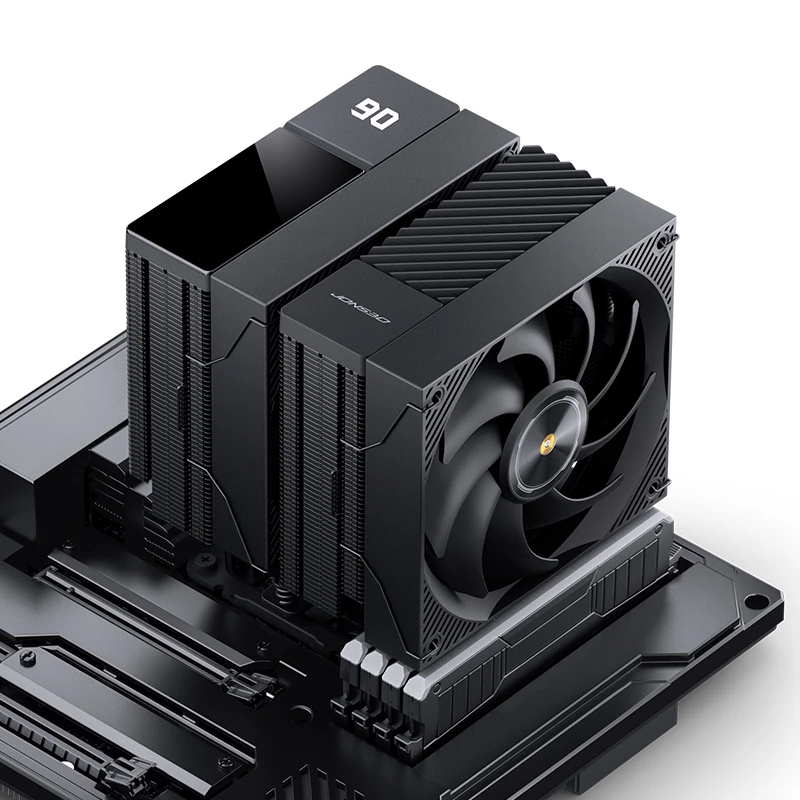

JONSBO has launched its new CC90 CPU air cooler, targeting gamers and PC builders looking for high thermal capacity on modern desktop platforms. The JONSBO CC90 features a dual-tower heatsink design paired with two cooling fans and carries a rated D-TDP of 285W, placing it in the upper tier of air-based CPU cooling solutions for current-generation processors.
The cooler is built around six 6mm diameter nickel-plated copper heat pipes connected to a CNC-machined copper base. This design helps improve contact with the processor’s integrated heat spreader, allowing more efficient heat transfer to the aluminum fin stacks. The twin-tower structure increases surface area for heat dissipation, which is important for maintaining stable temperatures under heavy workloads such as gaming, rendering, or productivity tasks.

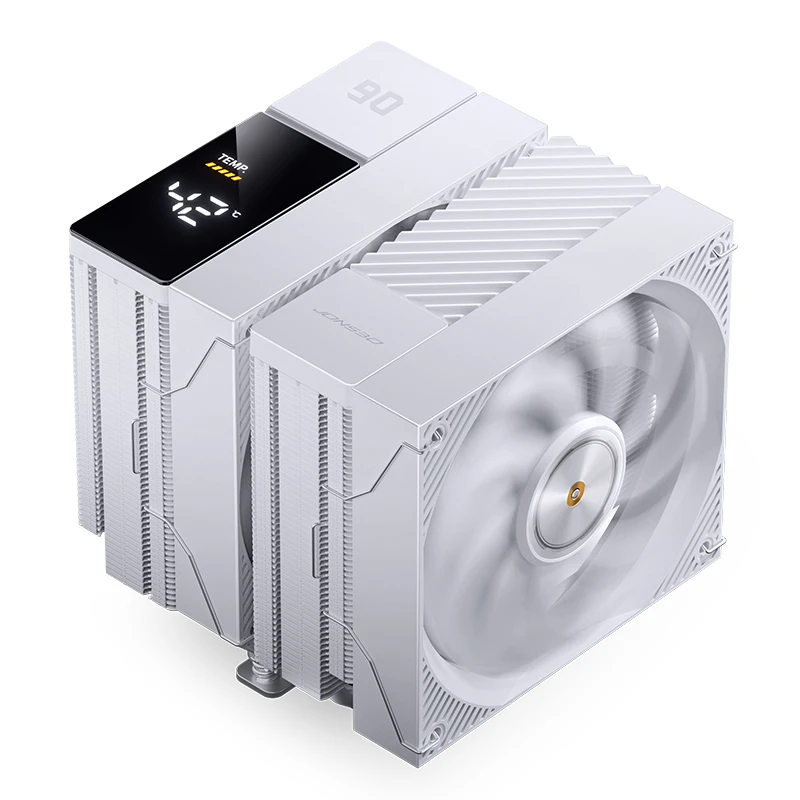

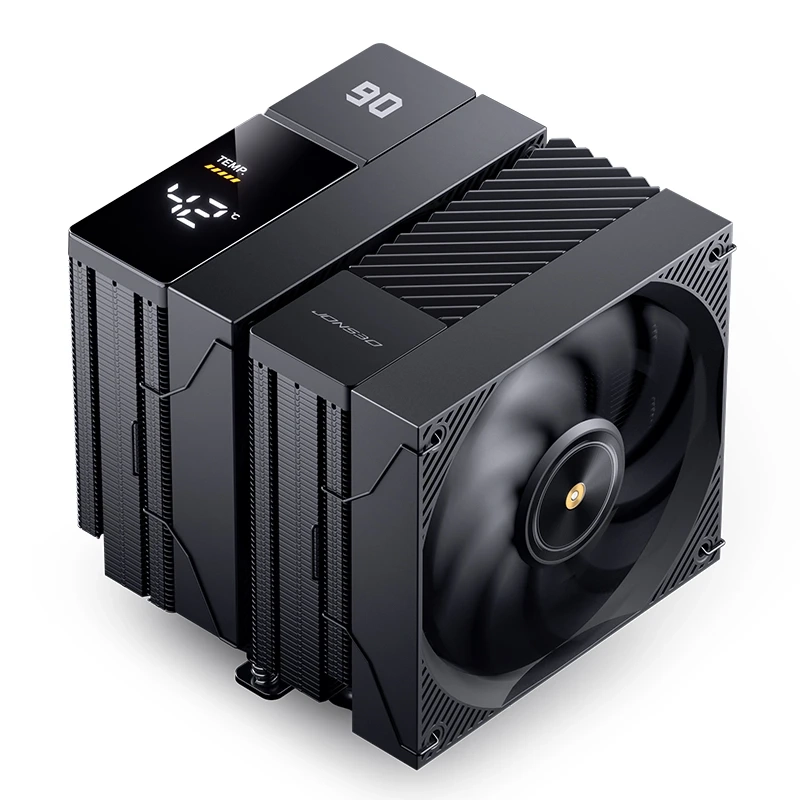

The CC90 features a built-in digital display module positioned at the top of the cooler. This integrated screen shows real-time CPU temperature readings directly on the unit, minimizing reliance on motherboard utilities or third-party monitoring software. It offers convenient, at-a-glance thermal data, which can be particularly useful for users who prefer visible, hardware-level temperature monitoring inside their PC case.
The JONSBO CC90 measures 135 × 130 × 158 mm, making it suitable for most mid-tower and larger ATX cases. In its default fan configuration, the cooler supports memory modules up to 42.5mm in height. Builders using low-profile or standard-height DDR4 and DDR5 kits should have no issues, while taller RGB memory may require minor fan adjustment depending on case clearance.
Cooling performance is handled by two fans of different thicknesses. The primary 13cm fan measures 130 × 130 × 25.5 mm and operates between 700 and 1700 RPM. It delivers airflow ranging from 32.5 to 81 CFM, static pressure between 0.4 and 2.28 mmAq, and produces noise levels from 14.8 to 37.1 dB(A). The secondary 12cm slim fan measures 130 × 120 × 15 mm and runs at 700 to 2050 RPM. It offers airflow between 24.78 and 77.81 CFM, static pressure up to 3.0 mmAq, and noise levels from 14.1 to 34.6 dB(A). This combination is designed to balance airflow and pressure across both fin stacks while maintaining controlled acoustics.
In terms of compatibility, the CC90 supports Intel LGA 1700 and LGA 1851 sockets, along with LGA 1200 and LGA 115X platforms. On the AMD side, it works with AM5 and AM4 motherboards, covering the latest Ryzen processors as well as previous generations. JONSBO includes a three-year warranty with the cooler.
With its dual-tower layout, 285W TDP rating, and integrated temperature display, the JONSBO CC90 enters the competitive CPU air cooler segment aimed at high-performance desktop systems. Pricing and regional availability details have not yet been disclosed.
