Maxsun has officially released its latest motherboard, the MS-eSport H810M WIFI ICE, which has now gone on sale in China through JD.com. The motherboard is based on Intel’s entry-level H810 chipset from the new 800 series platform and introduces several features not commonly seen at this tier, such as rear USB4 40Gbps connectivity and an 8+1+1 phase power supply design.
The Intel H810 chipset does not support two DIMMs per channel (2DPC), leading Maxsun to adopt a compact 2-DIMM micro-ATX form factor. The board width has been reduced to 210mm, giving it a narrower footprint than standard mATX boards. Memory support is capped at DDR5-6400 MT/s, in line with chipset limitations.
In terms of expansion, the MS-eSport H810M WIFI ICE offers one PCIe 5.0 x16 slot for graphics cards and one PCIe 4.0 x1 slot for additional devices. Storage options include one M.2 2280 PCIe 4.0 x4 slot, one M.2 2280 PCIe 4.0 x2 slot, and two SATA III 6Gbps connectors, providing flexibility for both high-speed NVMe drives and traditional SATA storage.
For networking, the motherboard is equipped with a Realtek RTL8125D 2.5GbE LAN controller for wired connections and an Intel AX101 Wi-Fi 6 module with Bluetooth 5.2, offering modern wireless connectivity. On the audio side, it features the Realtek ALC897 codec, delivering standard HD audio support.
The board also integrates debug diagnostic indicators and supports Maxsun Sync lighting control along with the latest PTM UI BIOS interface. Internal connectors include 1-to-2 USB-A 5Gbps, 1-to-2 USB-A 480Mbps, two 5V ARGB headers, and one 12V RGB header for lighting and accessory expansion.
Rear I/O connectivity is comprehensive for an entry-level chipset, including four USB-A 480Mbps ports, two USB-A 5Gbps ports, one USB-C 40Gbps port, HDMI 2.0, two DisplayPort 1.2 outputs, a CLR CMOS button, 2.5GbE RJ45, Wi-Fi antenna connectors, and three audio jacks.

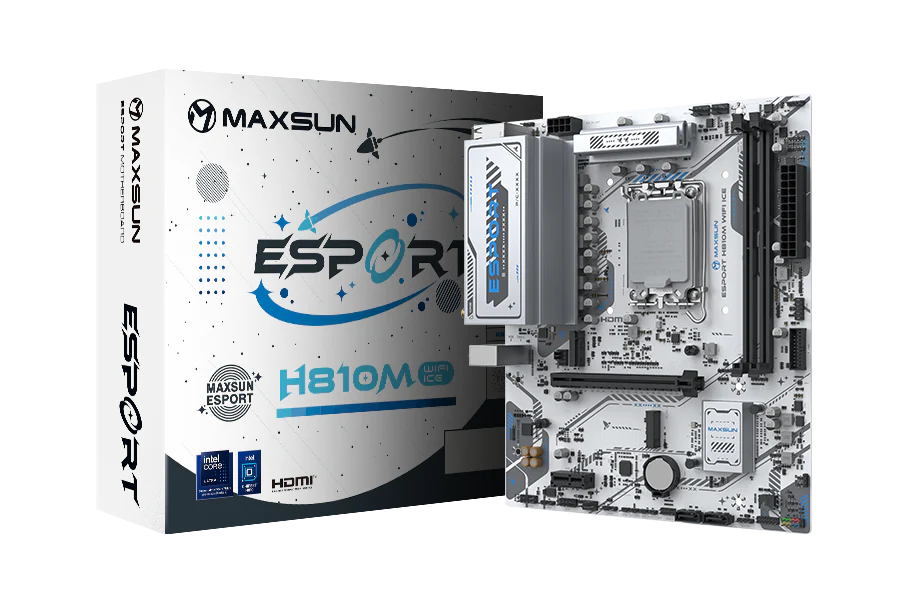

Design-wise, the MS-eSport H810M WIFI ICE features a white PCB with heatsinks covering the VRM and chipset regions. It uses an 8-pin EPS power connector and an 8-phase CPU VRM with 50A DrMOS components, which Maxsun states is capable of supporting the Intel Core Ultra 245K processor at full capacity.
The launch of this motherboard highlights Maxsun’s approach of combining an entry-level chipset with higher-end connectivity and power delivery options, creating an affordable yet feature-rich solution for users building compact Intel-based systems.

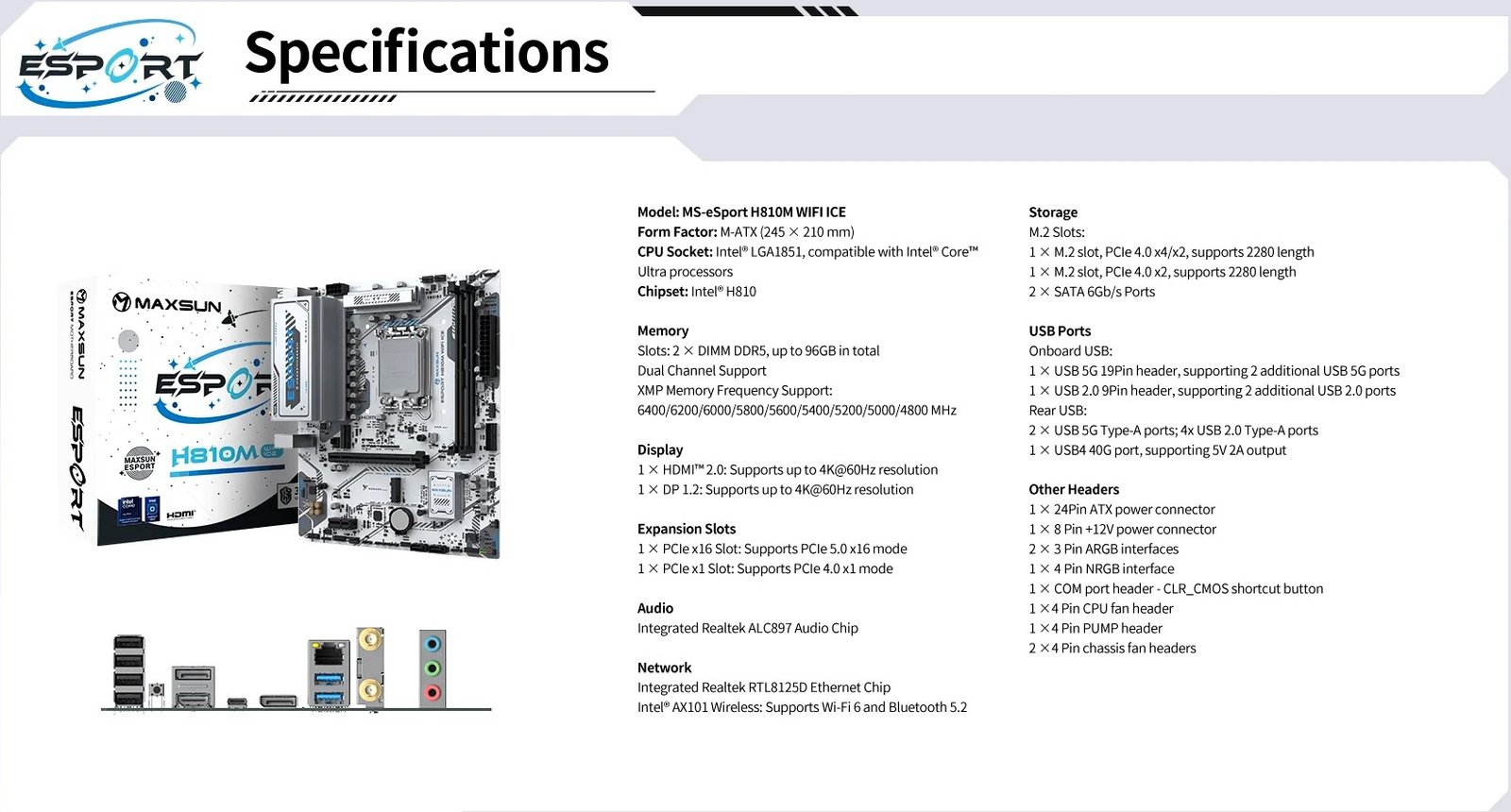

| Specification | Details |
|---|---|
| Chipset | Intel H810 (800 series) |
| Form Factor | Micro-ATX (narrow, 210 mm width) |
| CPU Support | Intel Core Ultra processors (supports up to Core Ultra 245K) |
| Power Delivery | 8+1+1 phase VRM, 50A DrMOS, 8-pin EPS connector |
| Memory Support | 2× DDR5 DIMM slots, up to DDR5-6400 MT/s (platform limit) |
| Expansion Slots | 1× PCIe 5.0 ×16, 1× PCIe 4.0 ×1 |
| Storage | 1× M.2 PCIe 4.0 ×4 (2280) 1× M.2 PCIe 4.0 ×2 (2280) 2× SATA III 6Gbps |
| Networking (Wired) | Realtek RTL8125D 2.5GbE LAN |
| Networking (Wireless) | Intel AX101 Wi-Fi 6 & Bluetooth 5.2 |
| Audio | Realtek ALC897 HD Audio codec |
| Internal Connectors | 1× 1-to-2 USB-A 5Gbps 1× 1-to-2 USB-A 480Mbps 2× 5V ARGB headers 1× 12V RGB header |
| Rear I/O Ports | 4× USB-A 480Mbps 2× USB-A 5Gbps 1× USB-C 40Gbps 1× HDMI 2.0 2× DisplayPort 1.2 CLR CMOS button 1× 2.5GbE RJ45 Wi-Fi antenna connectors 3× audio jacks |
| Debug & Software | Distributed diagnostic indicators, PTM UI BIOS, Maxsun Sync lighting control |
| Design | White PCB, VRM & PCH heatsinks |
