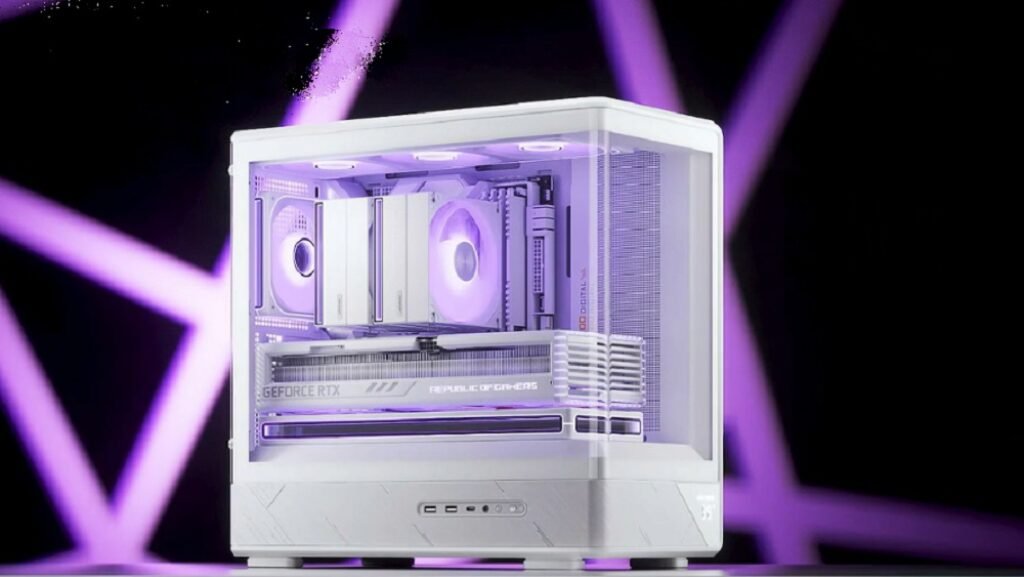

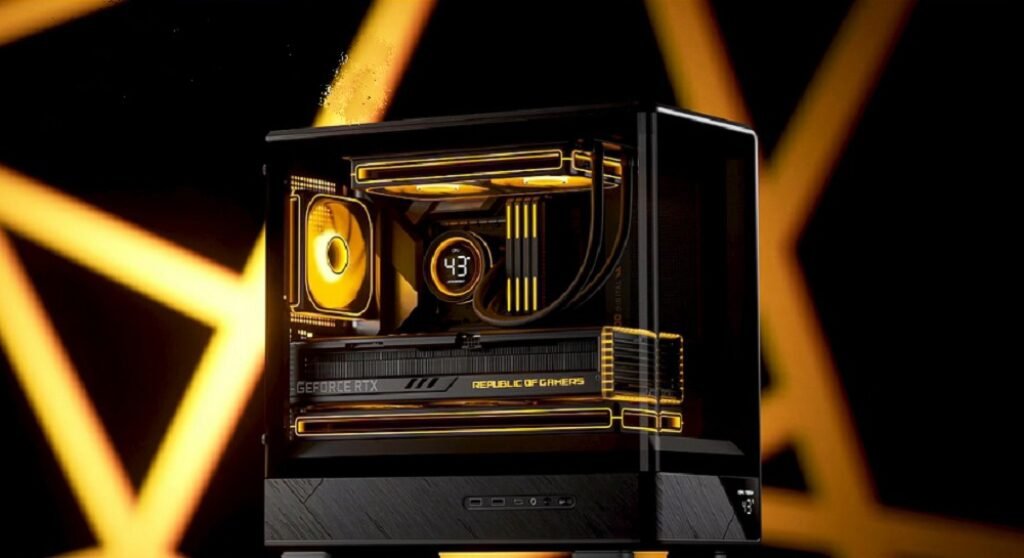

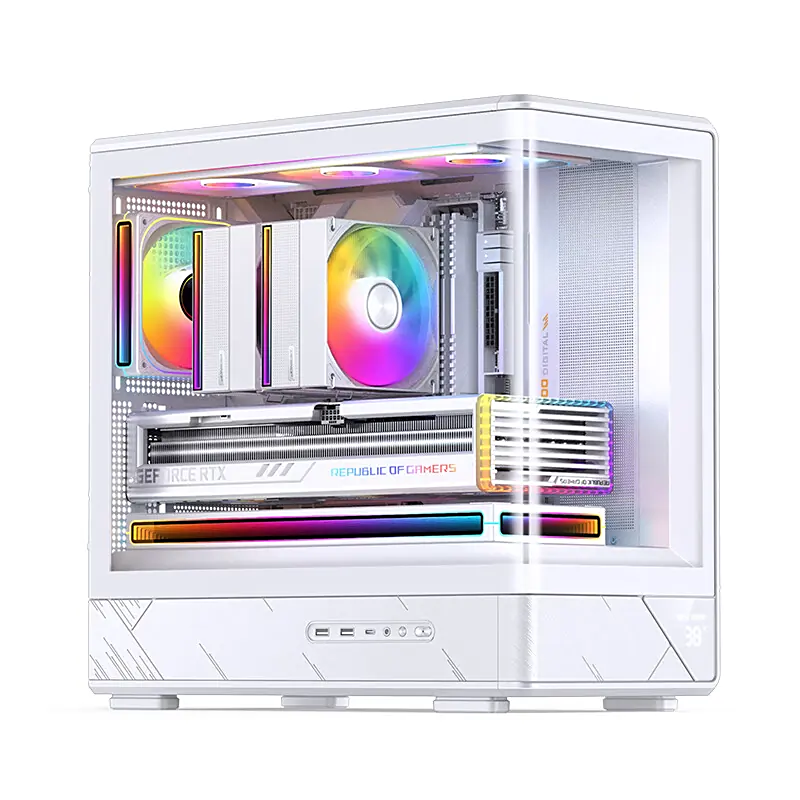

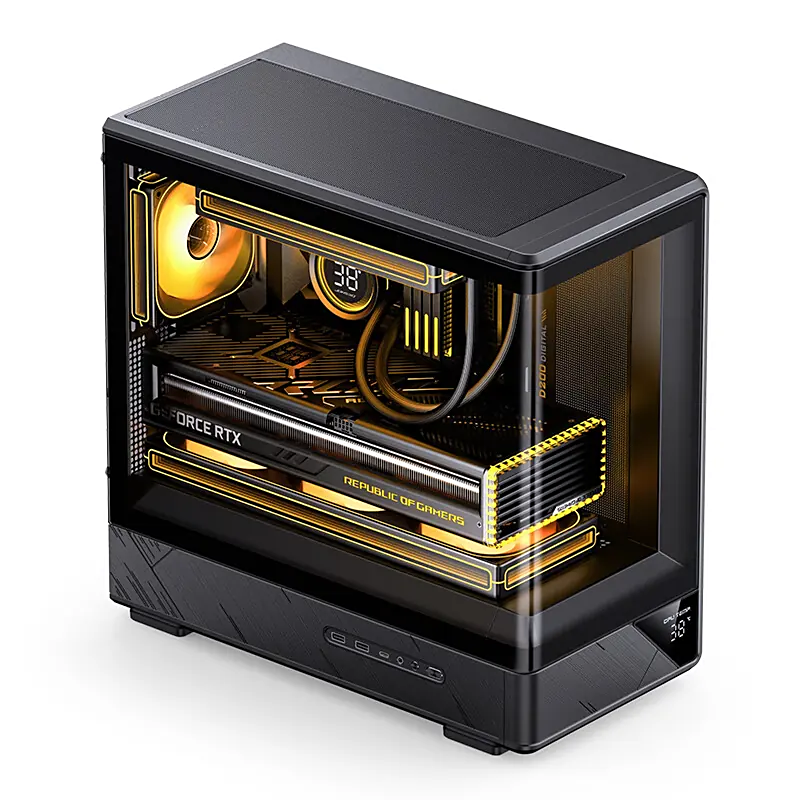

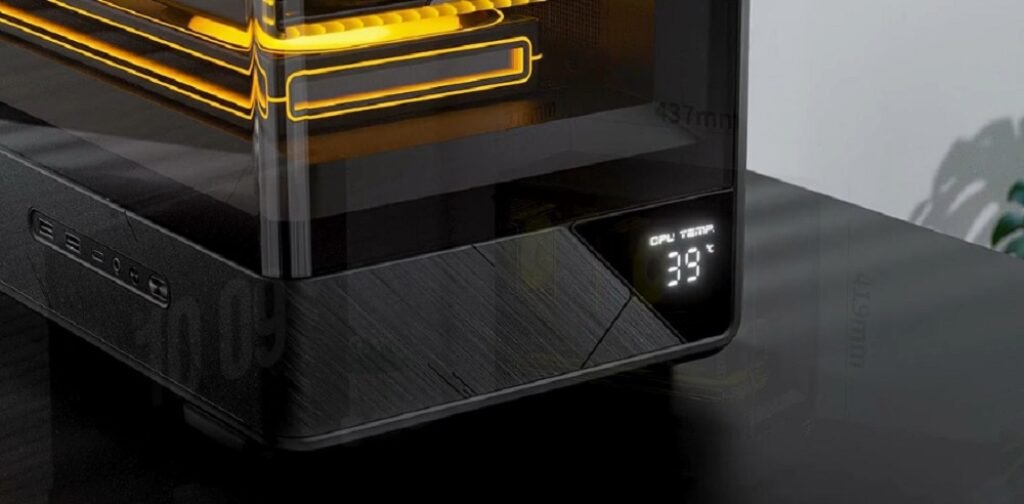

Jonsbo has introduced its latest Micro-ATX PC case, the D200, expanding its compact chassis lineup while keeping the brand’s signature design language intact. Carrying forward the curved glass and panoramic side-view styling from the previous D400 and D300 models, the D200 also adds a distinctive triangular CPU temperature digital display on the lower right section of the front panel. This feature allows users to quickly monitor processor temperatures without additional software or hardware tools.

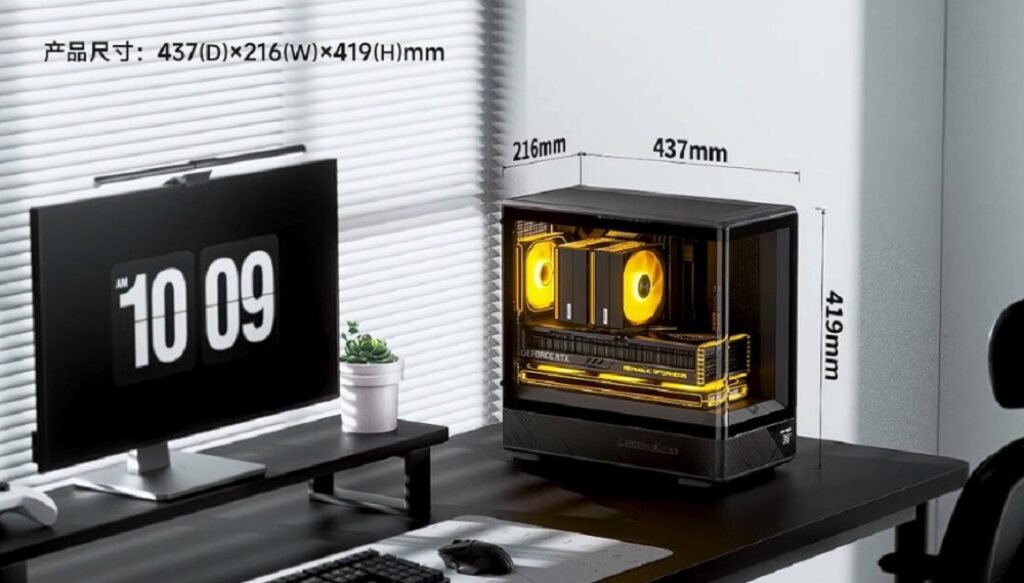

The Jonsbo D200 measures 216 x 437 x 419 mm, including the case feet, and is built to accommodate Micro-ATX motherboards with five expansion slots. Its vertical top-to-bottom compartment design provides a neat internal layout, enabling efficient component installation. The case supports CPU air coolers with a maximum height of 171 mm and graphics cards up to 410 mm in length, ensuring compatibility with most high-performance GPUs.
For storage, the D200 offers flexible mounting options. The rear compartment includes a 2.5-inch hard drive bay, while the lower front compartment features a dual-purpose bay that can accommodate either a 2.5-inch or 3.5-inch drive. The chassis is also compatible with ATX power supplies up to 170 mm in length, providing sufficient space for modular PSU units.
In terms of cooling capabilities, the D200 supports up to seven 120 mm fans in total. The top panel can hold either three 120 mm or two 140 mm fans, while the rear supports a single 120 mm fan. Above the bottom cover, users can mount three additional 120 mm fans for improved airflow. For liquid cooling enthusiasts, the top panel also supports the installation of a 240 mm radiator, offering flexibility for custom or all-in-one water cooling solutions.
The front I/O panel is positioned at the lower left side of the front panel and includes two USB-A 5 Gbps ports, one USB-C 10 Gbps port, a combined audio jack, as well as power and reset buttons. This placement allows for easy access, especially for setups placed on or near a desk.
With its combination of a modern curved glass aesthetic, integrated temperature display, and versatile cooling support, the Jonsbo D200 is positioned as a practical yet visually appealing choice for users building compact systems. Its balanced design makes it suitable for gaming PCs, workstations, or general-purpose builds requiring both style and performance.
