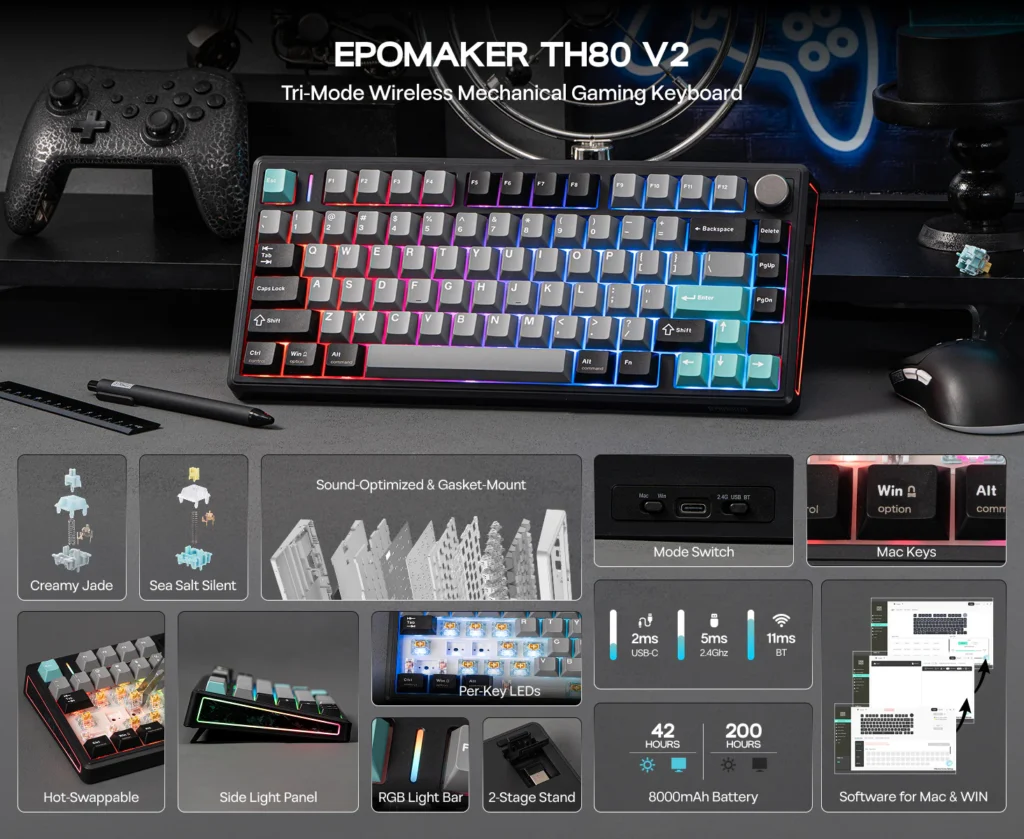

EPOMAKER has launched the TH80 V2 series (PRO version) mechanical keyboard, expanding its range of compact keyboards aimed at gaming and productivity users. The new model adopts a 75% ANSI layout that balances space efficiency with functionality, retaining essential keys while reducing the overall footprint compared to full-size keyboards.
The TH80 V2 series supports tri-mode connectivity, allowing operation through USB wired connection, Bluetooth, or 2.4GHz wireless. This provides compatibility with a wide range of platforms, including Windows PCs, laptops, tablets, and smartphones. The keyboard also includes a rotary knob positioned in the upper-right corner, enabling quick adjustments such as volume control or other customizable functions.

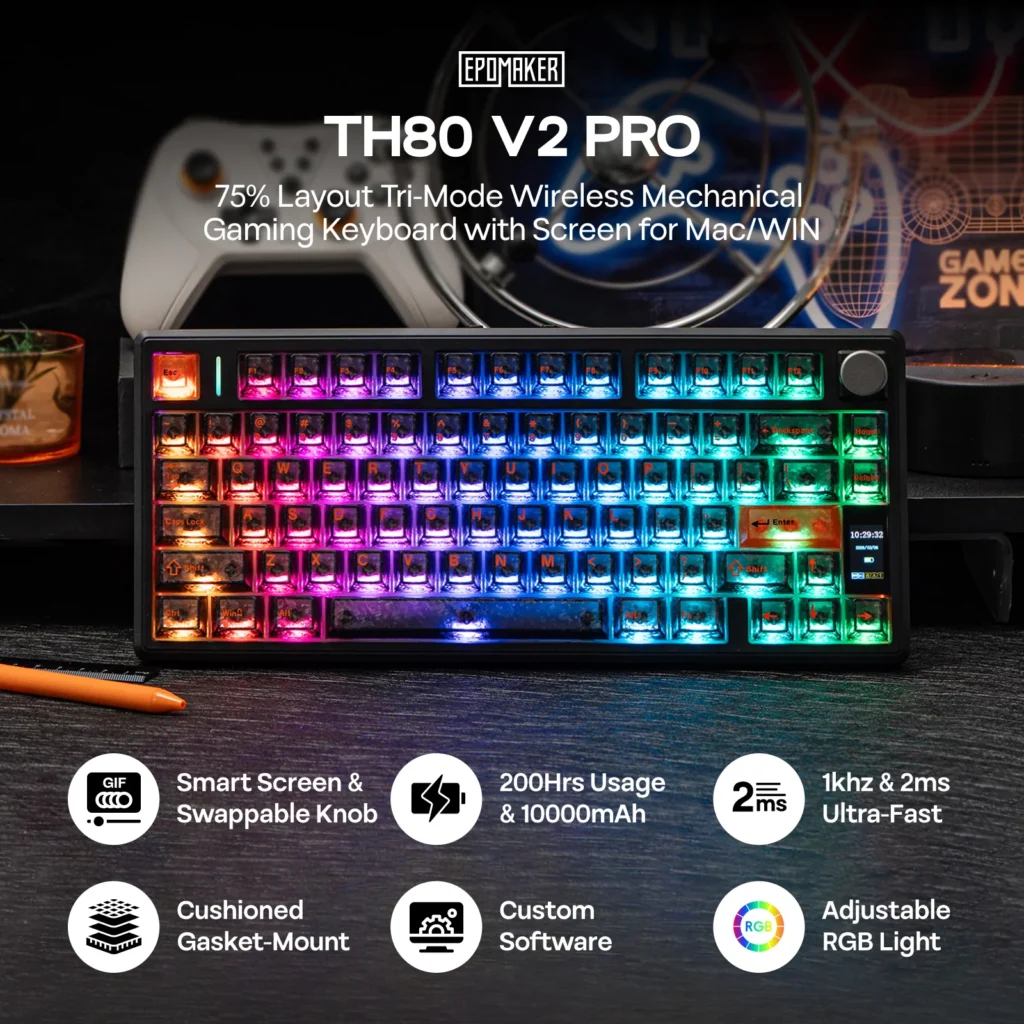

The PRO version introduces an additional feature in the form of a 1.06-inch TFT LCD color screen placed on the lower-right side of the keyboard. The display can be configured to show system information, custom images, or status indicators, adding a level of personalization that has become increasingly common in recent mechanical keyboard releases.
From a structural standpoint, the keyboard uses an ABS plastic chassis with a front height of 18.5mm and a rear height of 32.5mm. Internally, the TH80 V2 adopts a gasket-mounted design combined with a 1.2mm FR4 slotted PCB. This configuration is intended to provide consistent keystroke response and reduce internal vibration during typing.
The internal assembly also includes a horizontally slotted PC positioning plate along with five layers of sound-absorbing damping materials. These layers help reduce internal echo and improve typing acoustics, offering a more controlled sound profile compared to traditional tray-mounted keyboards.

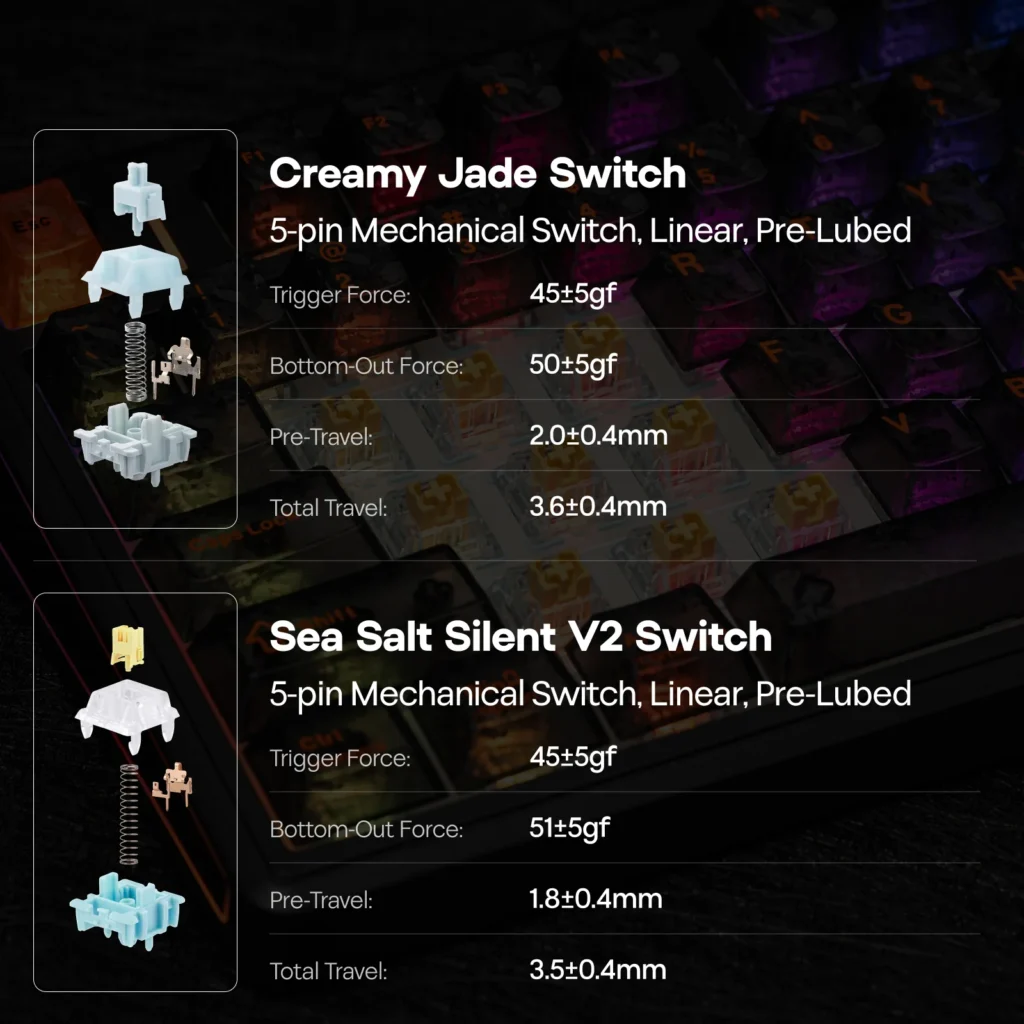

EPOMAKER offers two linear switch options with this model, including the Creamy Jade Switch and the Sea Salt Silent V2 Switch. Both switches are designed to deliver a smooth keystroke without tactile feedback, making them suitable for gaming and extended typing sessions. The keyboard supports full hot-swappable switch sockets, allowing users to replace switches without soldering.
ARGB LED backlighting is included, providing per-key illumination customization through supported software. The keyboard ships with original factory-height keycaps, maintaining a familiar typing profile suitable for a wide range of users.
With its compact layout, tri-mode connectivity support, gasket structure, and optional LCD display, the TH80 V2 series expands EPOMAKER’s lineup of customizable mechanical keyboards targeting users looking for flexible connectivity and modern design elements.
EPOMAKER TH80 V2 Series Specifications
| Specification | TH80 V2 | TH80 V2 PRO |
|---|---|---|
| Brand | EPOMAKER | EPOMAKER |
| Layout | 75% ANSI | 75% ANSI |
| Connectivity | USB Wired, Bluetooth, 2.4GHz Wireless (Tri-mode) | USB Wired, Bluetooth, 2.4GHz Wireless (Tri-mode) |
| Display | No | 1.06-inch TFT LCD Color Screen |
| Rotary Knob | Yes | Yes |
| Mount Structure | Gasket Mount | Gasket Mount |
| PCB | 1.2mm FR4 Slotted PCB | 1.2mm FR4 Slotted PCB |
| Plate Material | PC Positioning Plate (Slotted) | PC Positioning Plate (Slotted) |
| Hot Swap Support | Yes (Full Key) | Yes (Full Key) |
| Switch Options | Creamy Jade Switch (Linear) | Creamy Jade Switch (Linear) |
| Sea Salt Silent V2 Switch (Linear) | Sea Salt Silent V2 Switch (Linear) | |
| Keycaps | Factory Height Keycaps | Factory Height Keycaps |
| Backlighting | ARGB Per-Key Lighting | ARGB Per-Key Lighting |
| Sound Dampening | 5 Layers Internal Dampening | 5 Layers Internal Dampening |
| Case Material | ABS Plastic | ABS Plastic |
| Front Height | 18.5 mm | 18.5 mm |
| Rear Height | 32.5 mm | 32.5 mm |
| Target Use | Gaming, Typing, Productivity | Gaming, Typing, Productivity |
| Customization | Software Support | Software Support + Screen Customization |
