After reviewing the Einarex Nexus L1 power supply and the Zenith ZM800 mATX case, we now take a closer look at the Vertex 360mm AIO liquid cooler. This cooler is part of Einarex’s growing lineup of thermal solutions aimed at gaming and high-performance systems. It combines a 360mm radiator with ARGB lighting and a holographic logo on the pump block. For this review, we are working with the black version to test its thermal performance and noise levels on modern CPUs.
The Vertex series features a 3D glass pump block with an illuminated logo and addressable RGB lighting. It is available in two radiator sizes, 240mm and 360mm, to support a range of system builds. Users can also choose between black and white versions to match their case and components. The cooler supports both Intel and AMD platforms, covering LGA1851, LGA1700, LGA1200, LGA115x, LGA20xx, and AM4/AM5 sockets.
The cooler includes Einarex EX12A fans designed for high airflow and static pressure while maintaining quiet operation. These fans are optimized for dense radiator fins and should handle the thermal demands of high-end processors. The wide socket compatibility makes the Vertex suitable for new builds and upgrades across different platforms.
In this review, we will evaluate the installation process, build quality, cooling efficiency, and noise characteristics of the Einarex Vertex 360mm. With more AIO liquid coolers entering the market, this hands-on test will show how well the Vertex performs under real-world conditions.
Specification
| Features | Details |
|---|---|
| Intel Socket | LGA 1851 / 1700 / 1200 / 115x / 20xx |
| AMD Socket | AM5 / AM4 |
| Radiator Dimensions | 397 x 120 x 27mm |
| Radiator Material | Aluminum |
| Tube Length | 380±10mm |
| Water Block Dimensions | 67.5 x 67.5 x 60.3mm |
| Coldplate Material | Copper |
| Pump Speed | 2800 RPM |
| Number of Fans | x3 |
| Fan Dimensions | 120 x 120 x 25mm |
| Fan Bearing | Hydraulic Bearing |
| Fan Speed | 800-2600RPM±10% |
| Airflow | 74.22CFM |
| Static Pressure | 4.42mmH2O |
| Noise | 38.2dBA |

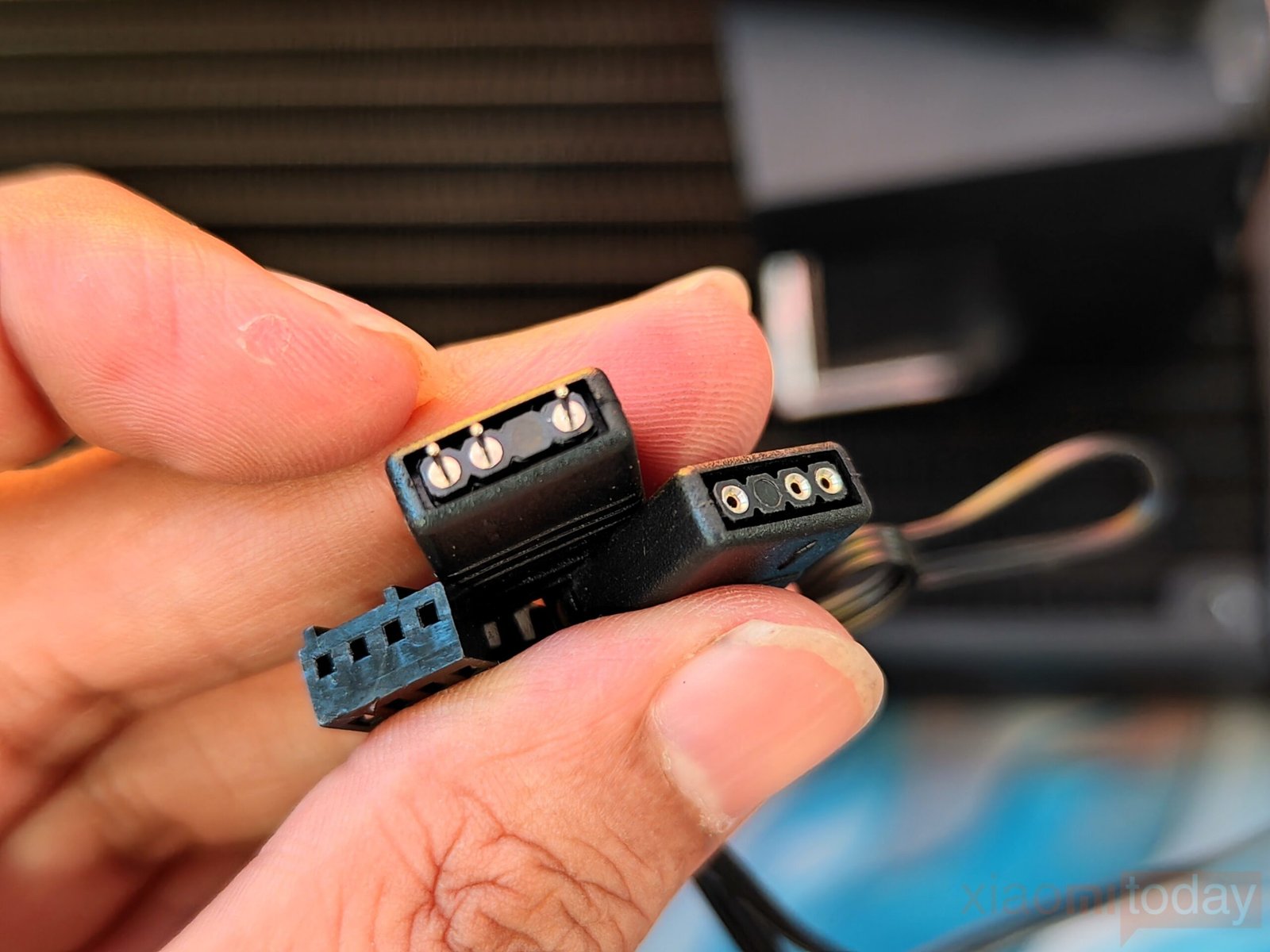

| Fan Control | Fan: 2510-4Pin PWMLights: 5V-3Pin ARGB |
Unboxing
The Einarex Vertex 360 ARGB AIO Liquid Cooler comes in a compact and sturdy box with a clean, modern design. The front shows a black background with a blue diagonal accent, along with clear images of the cooler’s three fans and illuminated pump head. Branding is straightforward, with the “Einarex” name and “Vertex 360” model printed in bold. On the back, detailed specifications are listed, including support for AMD AM5 and Intel 14th Gen processors, noise levels rated at 38.2 dBA, and a 3-year warranty.
The sides of the box include diagrams of the radiator with exact measurements, socket compatibility for Intel LGA 1851/1700 and AMD AM5/AM4, and additional images of the fans and CPU block. The packaging is designed to provide all key information while keeping the cooler well-protected.

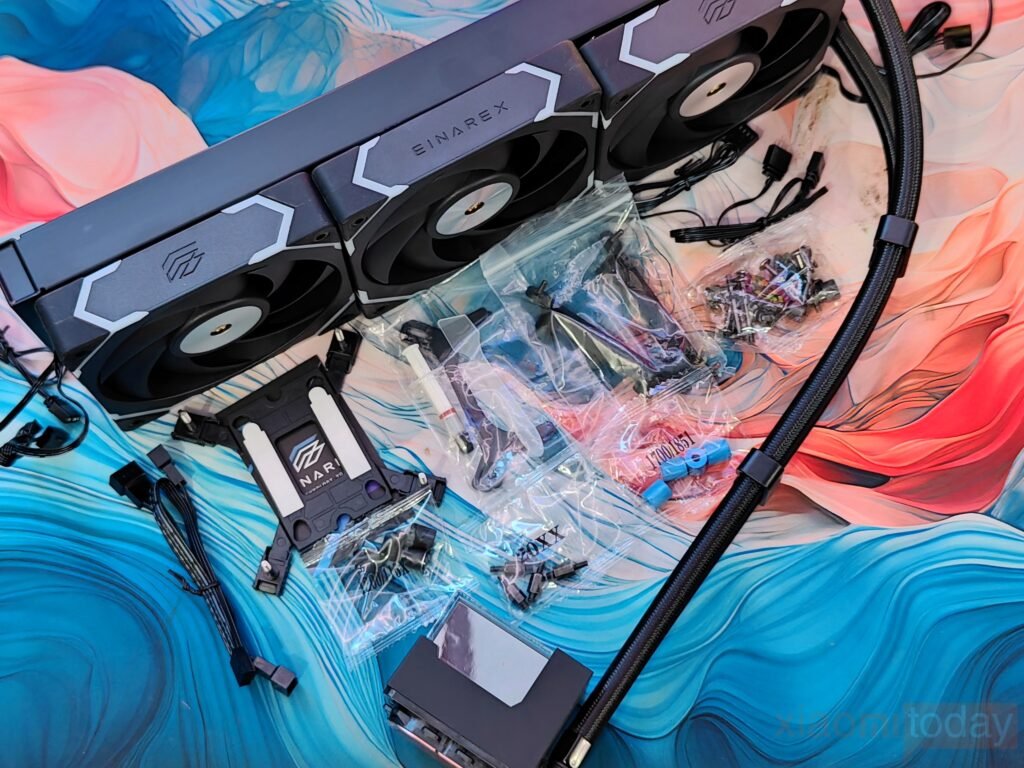

When opening the box, the contents are well organized in a padded interior that keeps each component secure during shipping. The radiator is individually wrapped in plastic and rests in a custom-molded Styrofoam, while a separate compartment holds the accessories box. Inside the accessory box, you’ll find three 120mm fans, an Intel and AMD mounting backplate, buckle brackets, plastic sleeves, thermal paste with a small spatula, and all necessary installation screws for both the radiator and fans. A 3-fan splitter cable and a QR code linking to the digital manual are also included. Notably, the fans are not pre-installed on the radiator, allowing users to choose their preferred orientation during assembly.
Design
Radiator
The Einarex VERTEX 360mm ARGB AIO is built for users who need dependable cooling for today’s high-performance CPUs. Its radiator measures 390 x 120 x 27 mm, offering ample surface area for heat dissipation in compact and full-sized builds. With support for Intel LGA 1851, 1700, 1200, 115x, and AMD AM5 and AM4 sockets, it provides wide compatibility across multiple platforms. The version we tested came in black, and the matte finish gives it a clean look that works well in most system builds. A white variant is also available for those aiming for lighter color themes.

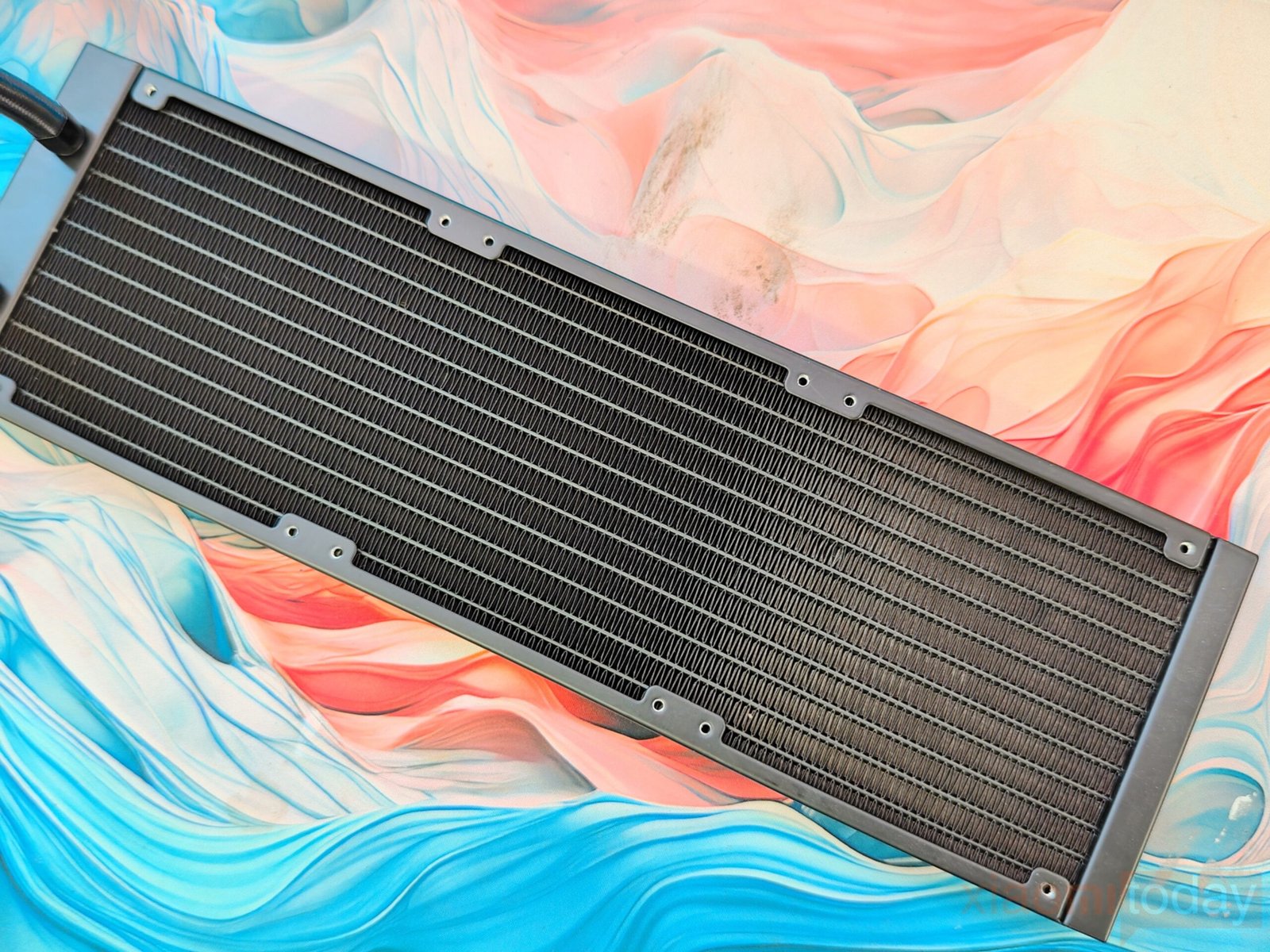

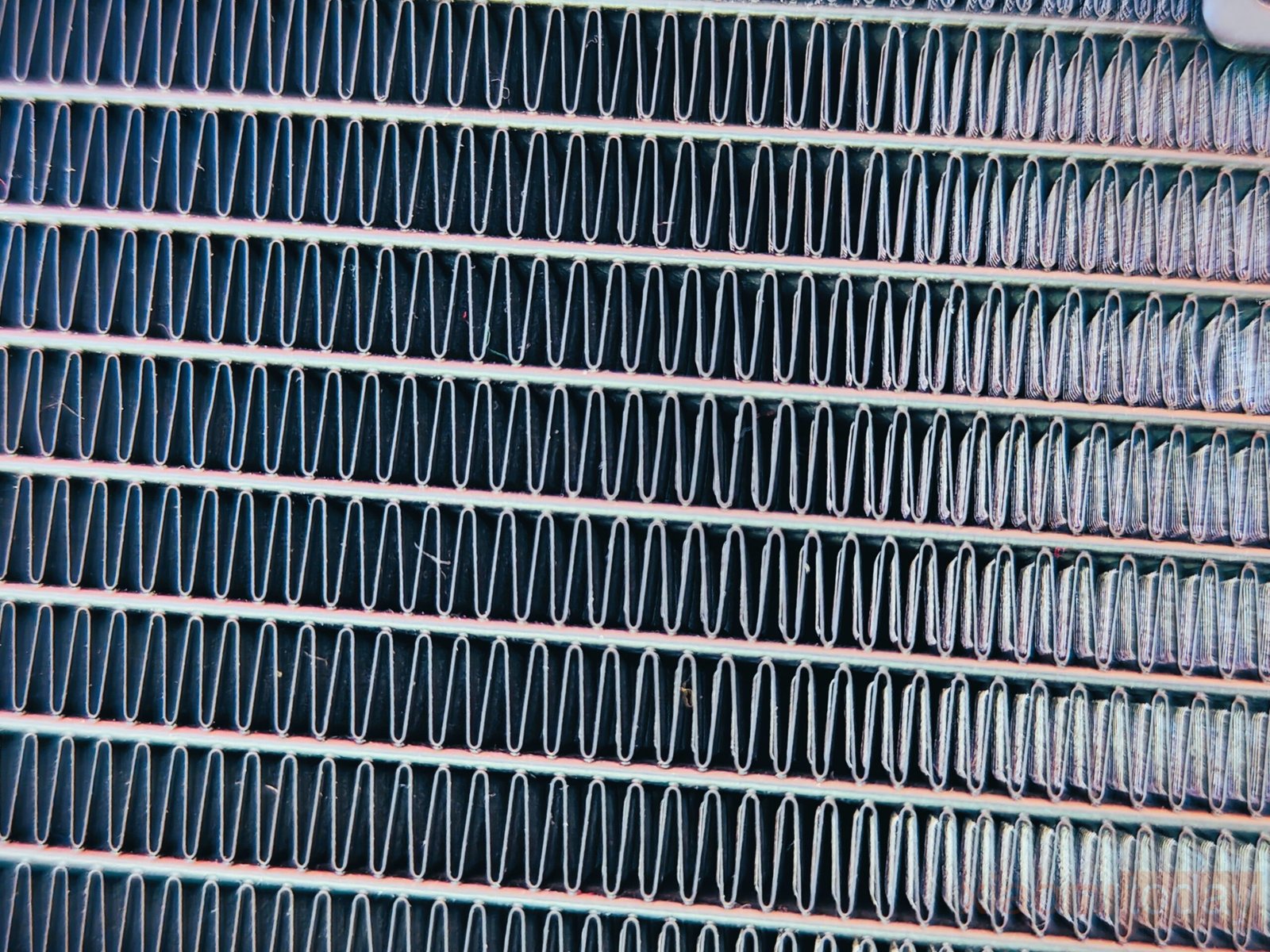

The radiator uses a 20 FPI (fins per inch) design that works efficiently with high static pressure fans to maintain steady airflow through the dense fin stack. This setup helps keep temperatures under control during demanding tasks or overclocked workloads. The uniform fin arrangement improves airflow contact and heat transfer, ensuring consistent cooling performance.

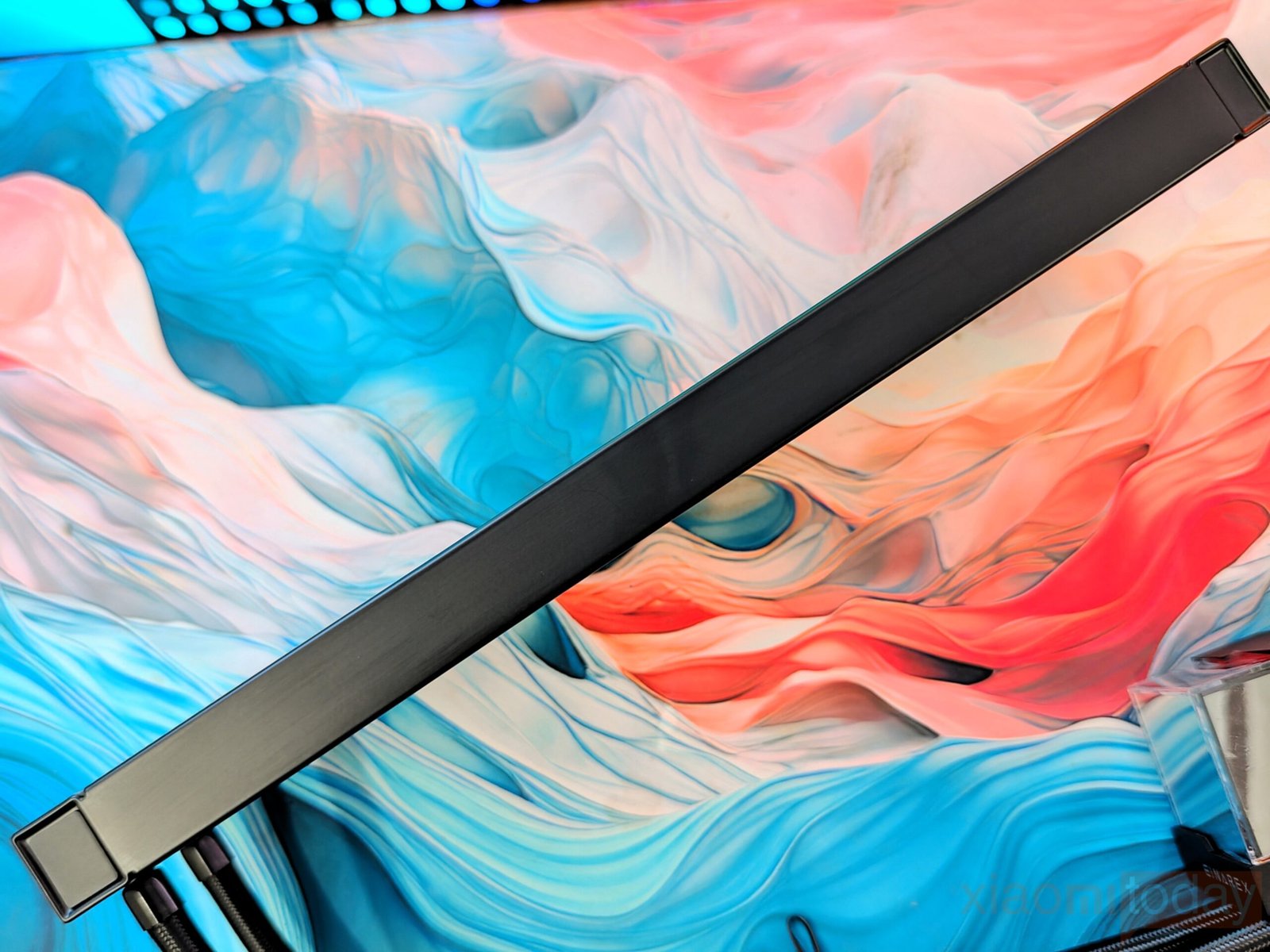

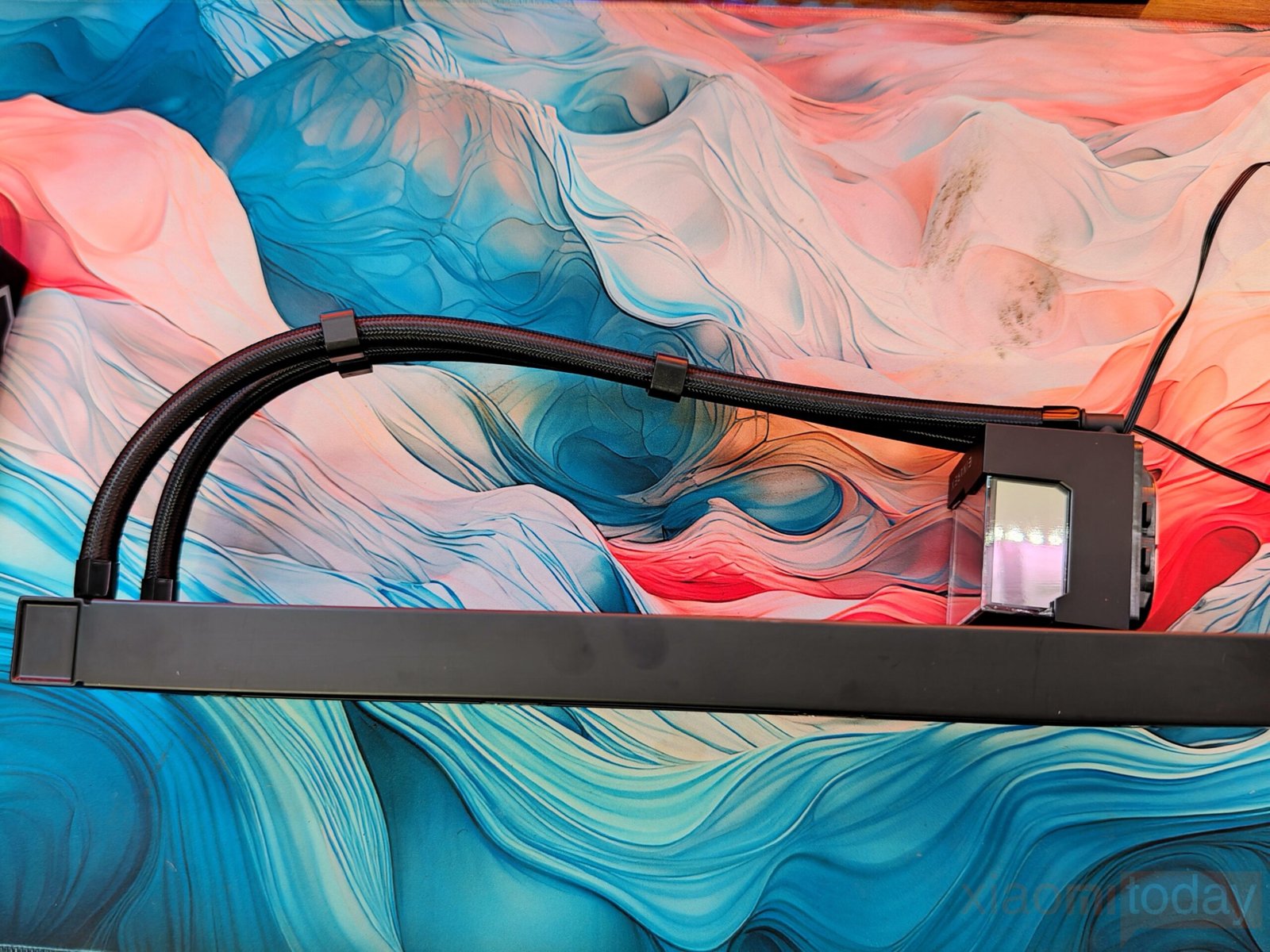

The side view of the radiator shows a clean design; there are no logos or branding on either side of the radiator, giving it a neutral look that fits easily into most PC builds. The aluminum frame feels durable, and the matte finish helps keep fingerprints and smudges away. This simple design makes it a good choice for users who prefer a tidy and minimal appearance in their systems.

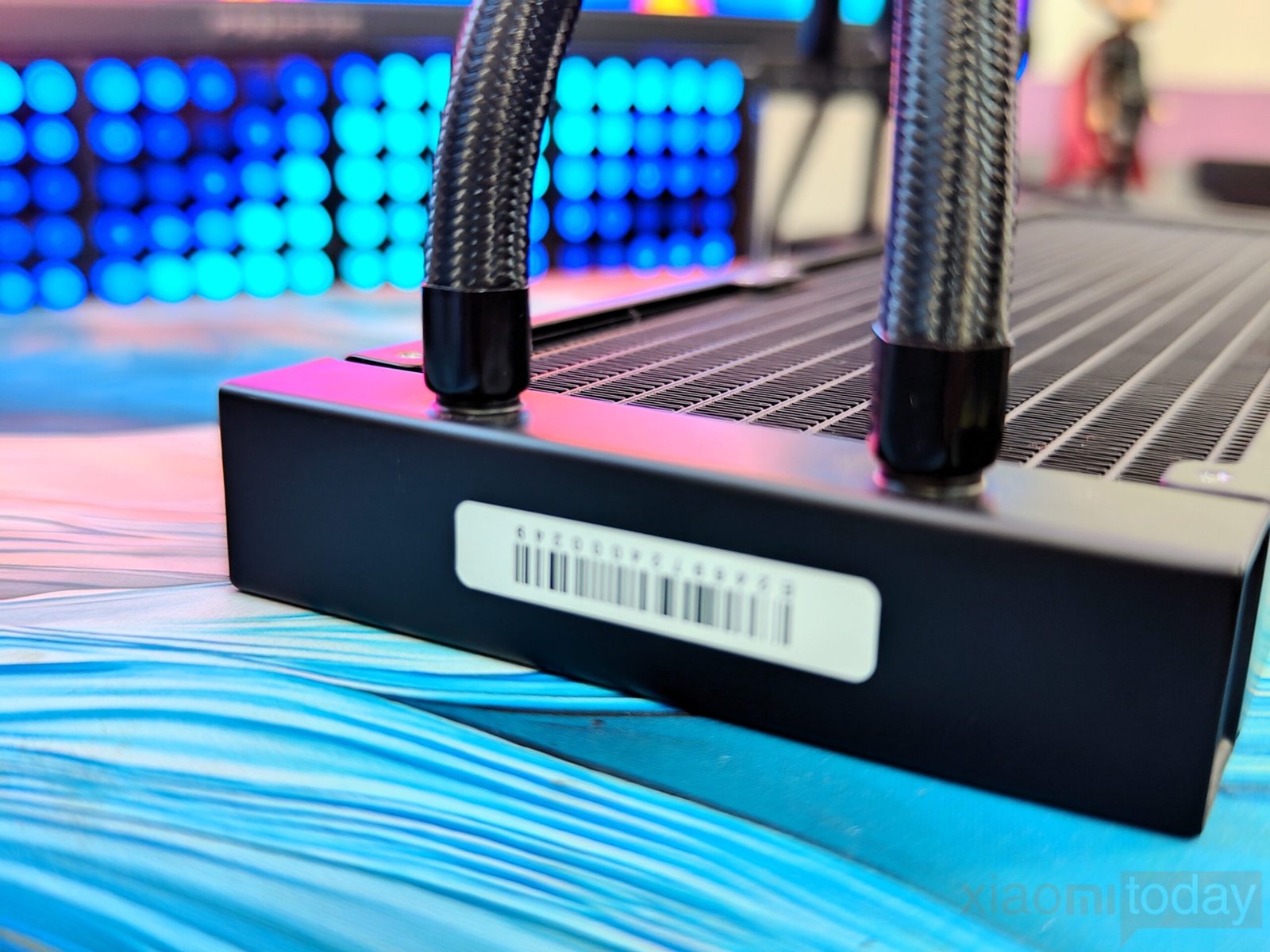

The Einarex VERTEX radiator is built with durability in mind. The tube connections are secured with metal clamps that keep steady pressure on the fittings over time. This setup reduces the chance of leaks and supports stable coolant flow during long gaming or workstation use. The tubes are firmly sealed into the radiator housing, helping maintain consistent thermal performance. A serial number label on the main unit is also included for easy reference in case of support or warranty needs.

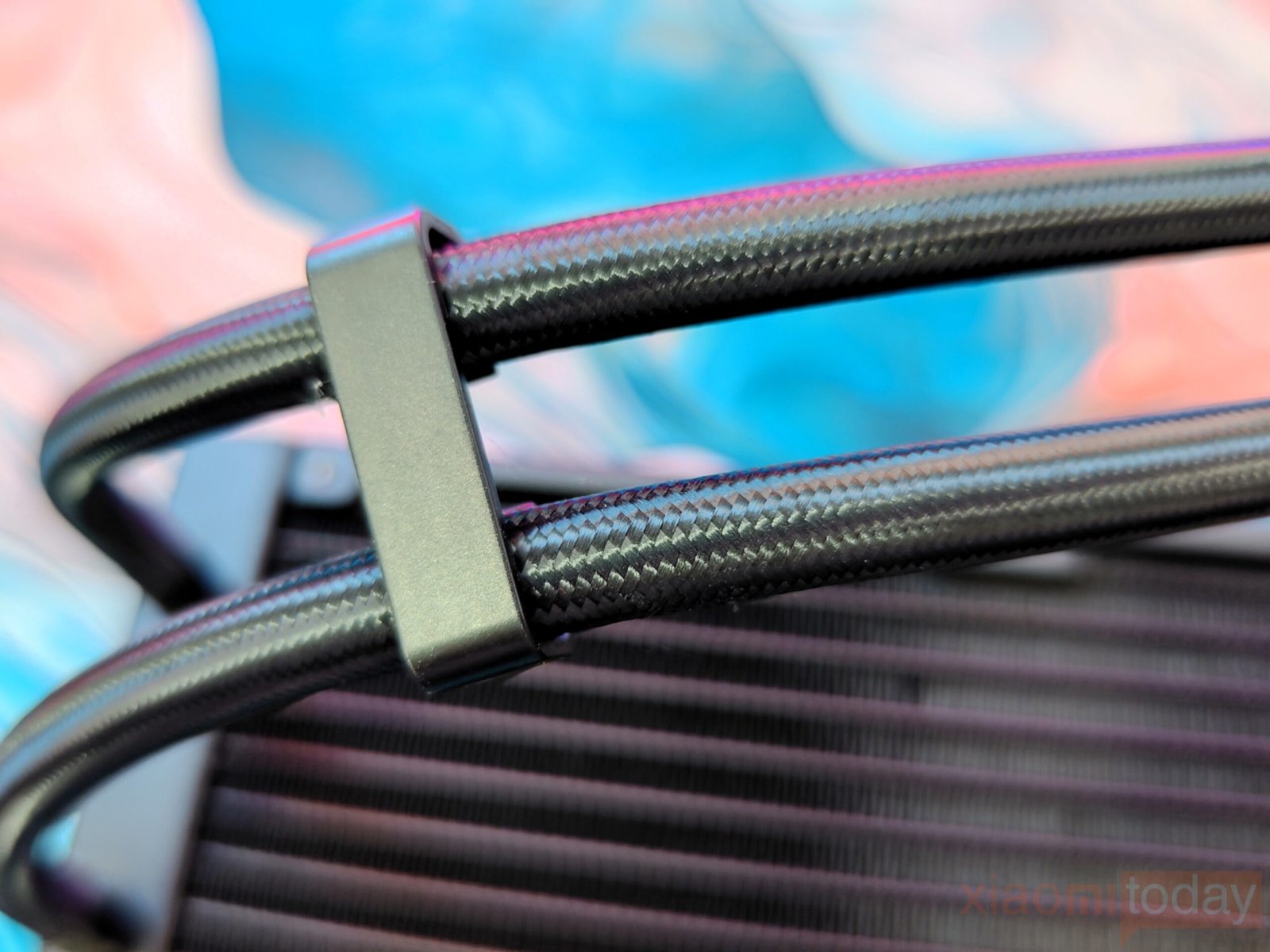

The VERTEX Liquid Cooler uses 380mm long tubes with a ±10mm tolerance, offering enough length for proper routing in mid-tower and full-tower cases. The tubes are sleeved with a dense braided material that adds strength and gives a clean, professional look. Both ends are secured with solid fittings, and metal retention clips are included to help with cable management and reduce movement during setup. The tubing has the right mix of flexibility and firmness, making it easier to guide around corners while keeping the installation tidy and stable.
CPU Head and Pump

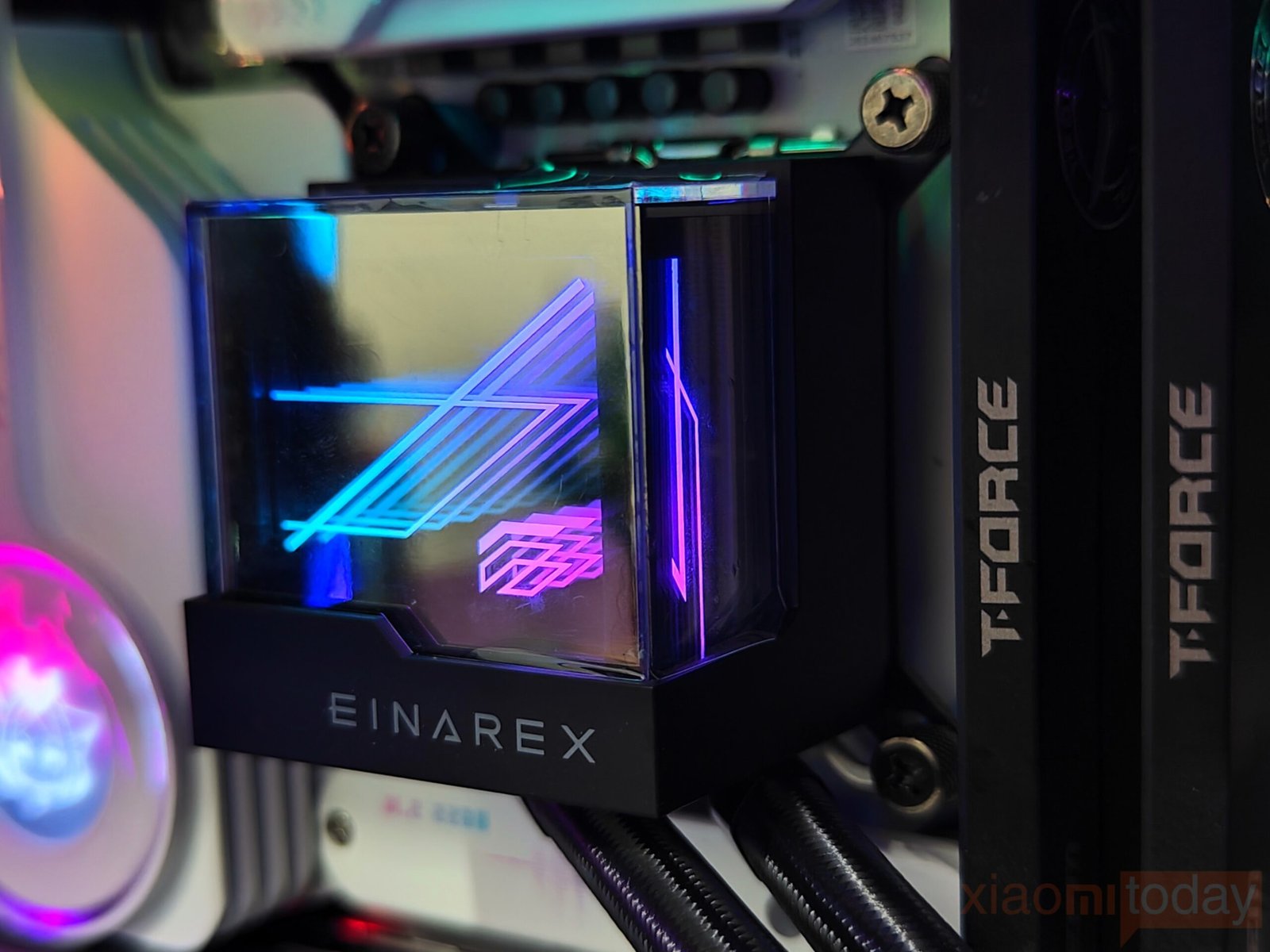

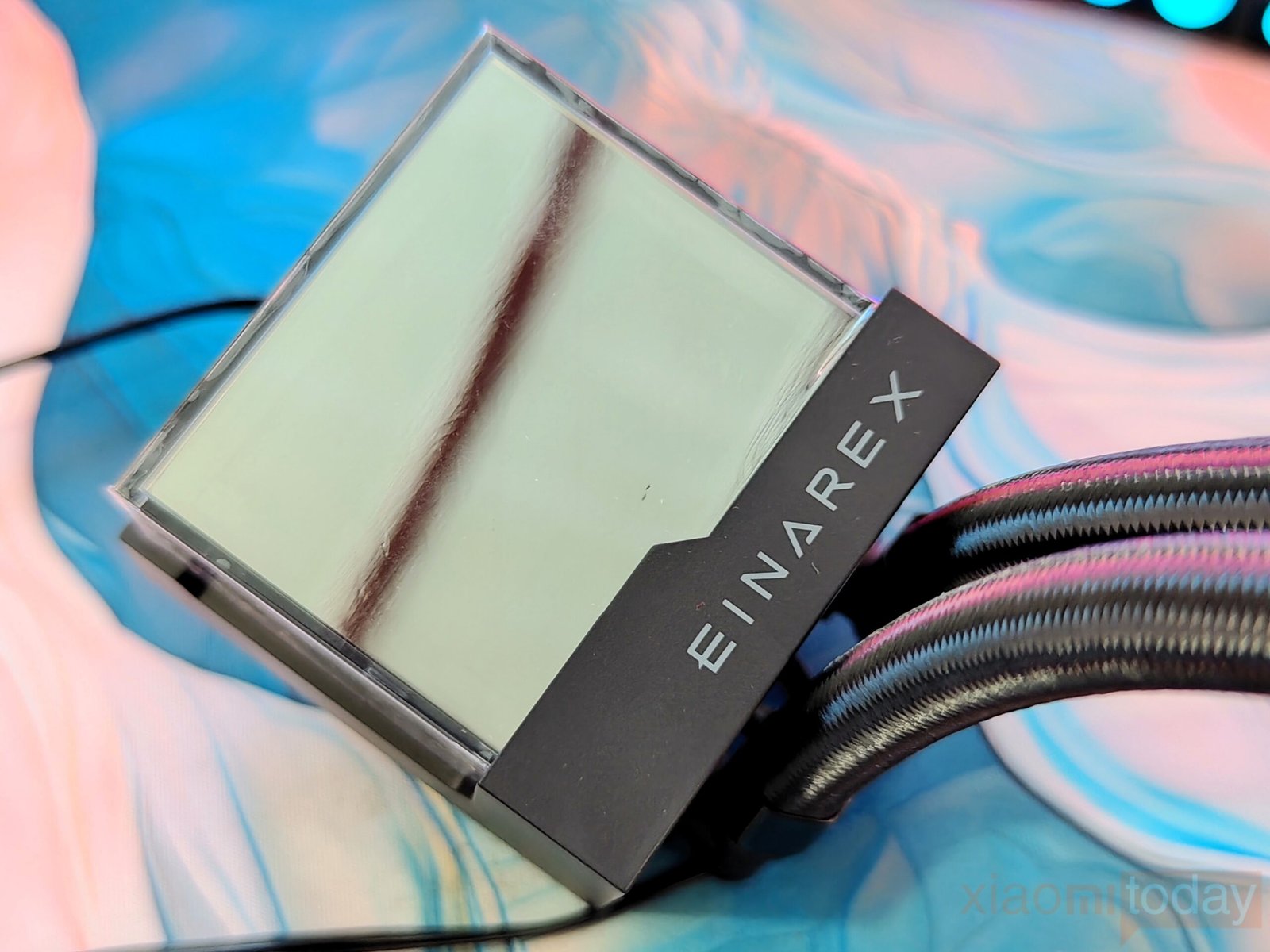

The pump housing on the Einarex Vertex 360 RGB has a clean, box-shaped design that avoids the common circular layout found in many AIO coolers. On top, it features a 3D glass block that displays the Einarex logo in a layered holographic style, giving it a sharp and modern appearance. The lighting is addressable RGB, allowing users to adjust the colors through supported software. With dimensions of 67.5 x 67.5 x 60.3mm, the unit stays compact while still making a visual impact. The pump operates at 2800 RPM, which should provide steady flow and cooling without becoming too loud.

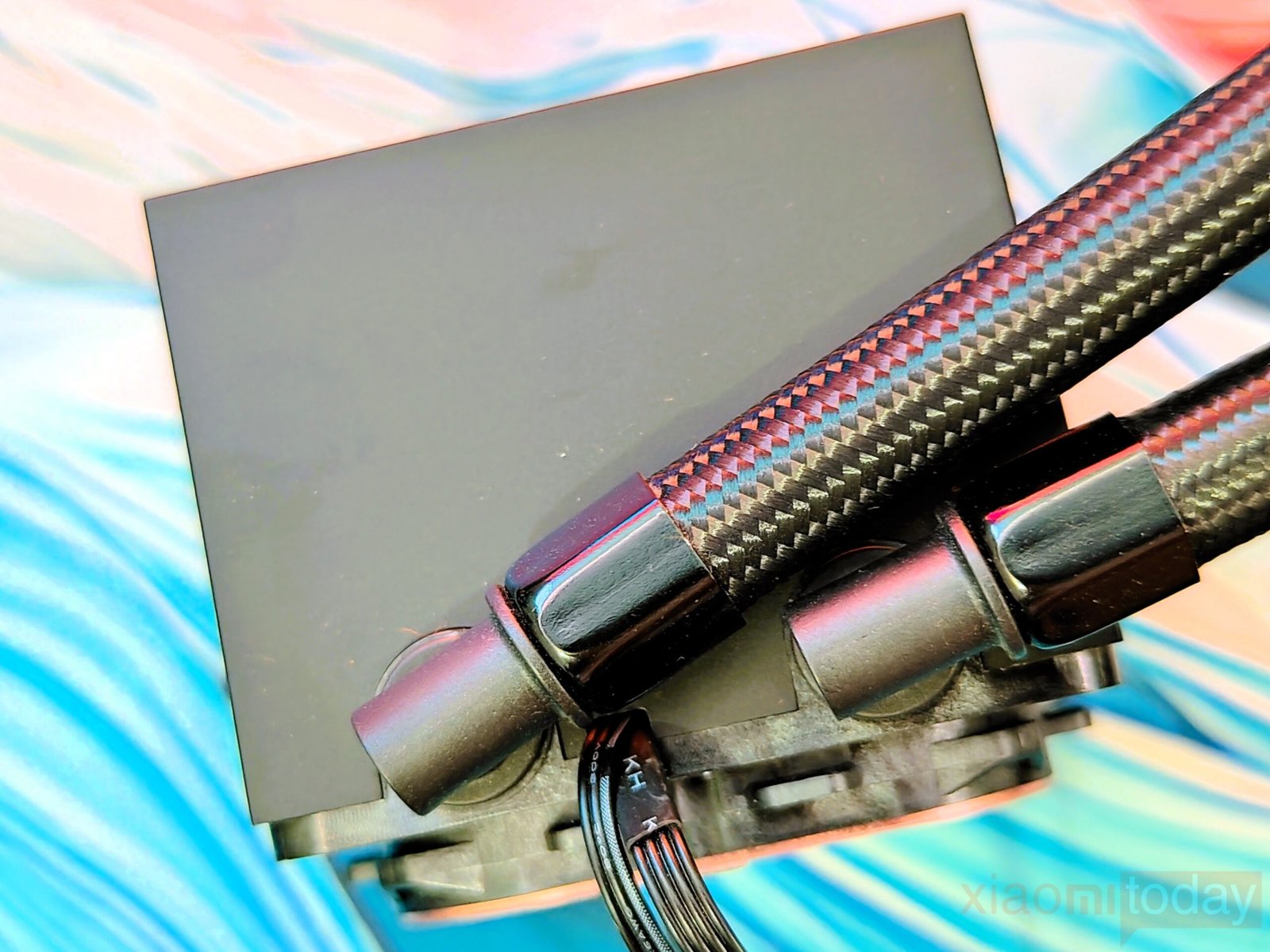

The pump housing has a clean design with braided tubing that feels durable and well-made. The metal fittings are securely attached and feature a polished finish that pairs well with the matte surface of the pump block. This subtle contrast gives the unit a refined look without drawing too much attention. The 90-degree rotatable fittings make tube routing more flexible, helping to achieve a tidy setup and reducing stress on the connections during installation.

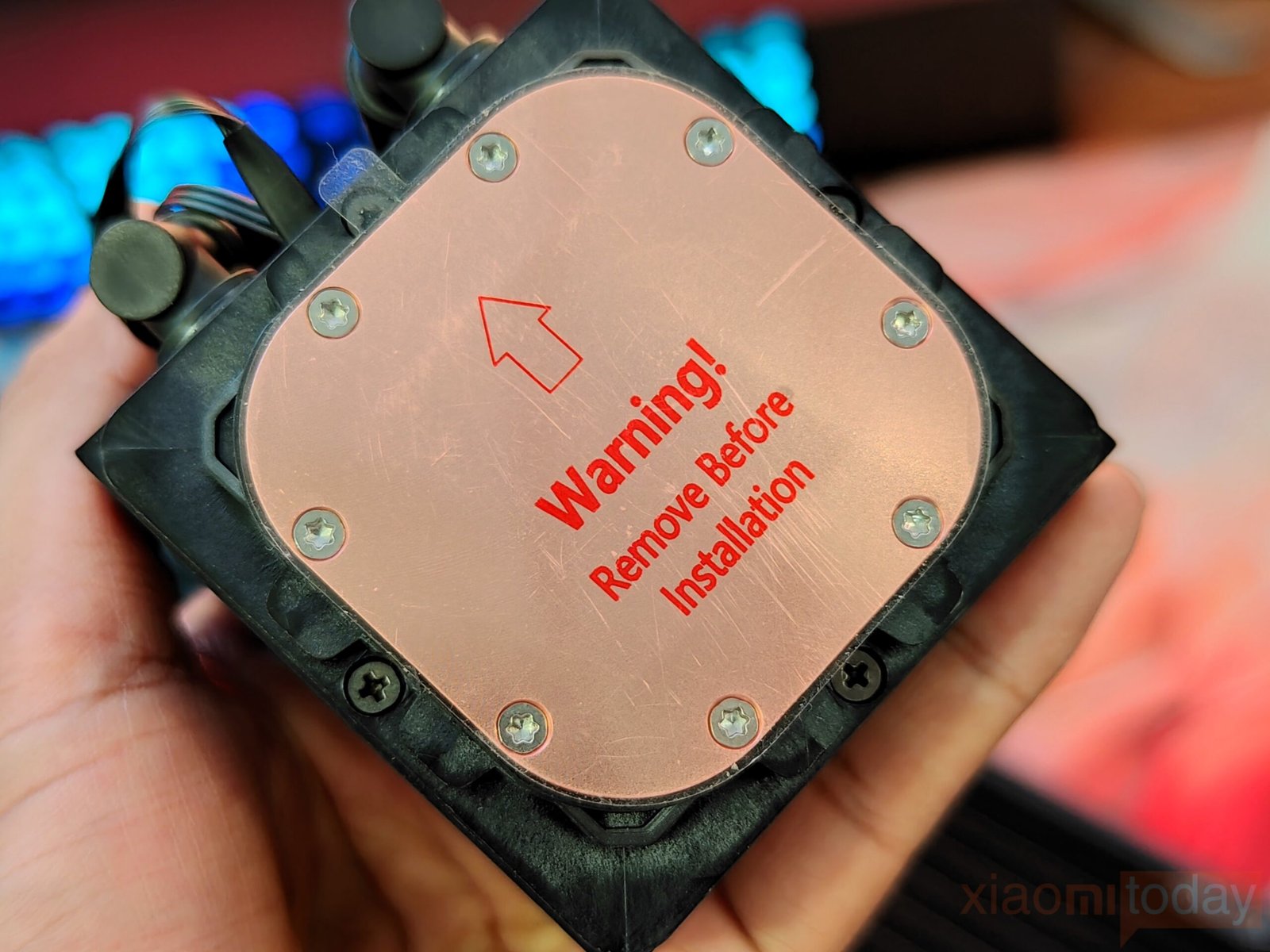

The pump is equipped with a large pure copper base that ensures full contact with the CPU’s heat spreader for optimal heat transfer. Its excellent thermal conductivity helps draw heat away from the processor quickly, supporting consistent cooling performance even under load. A protective film is applied to the cold plate from the factory and should be removed before mounting. The block connects to the system using a standard 3-pin DC power cable for the pump and a separate 3-pin 5V header for ARGB lighting.

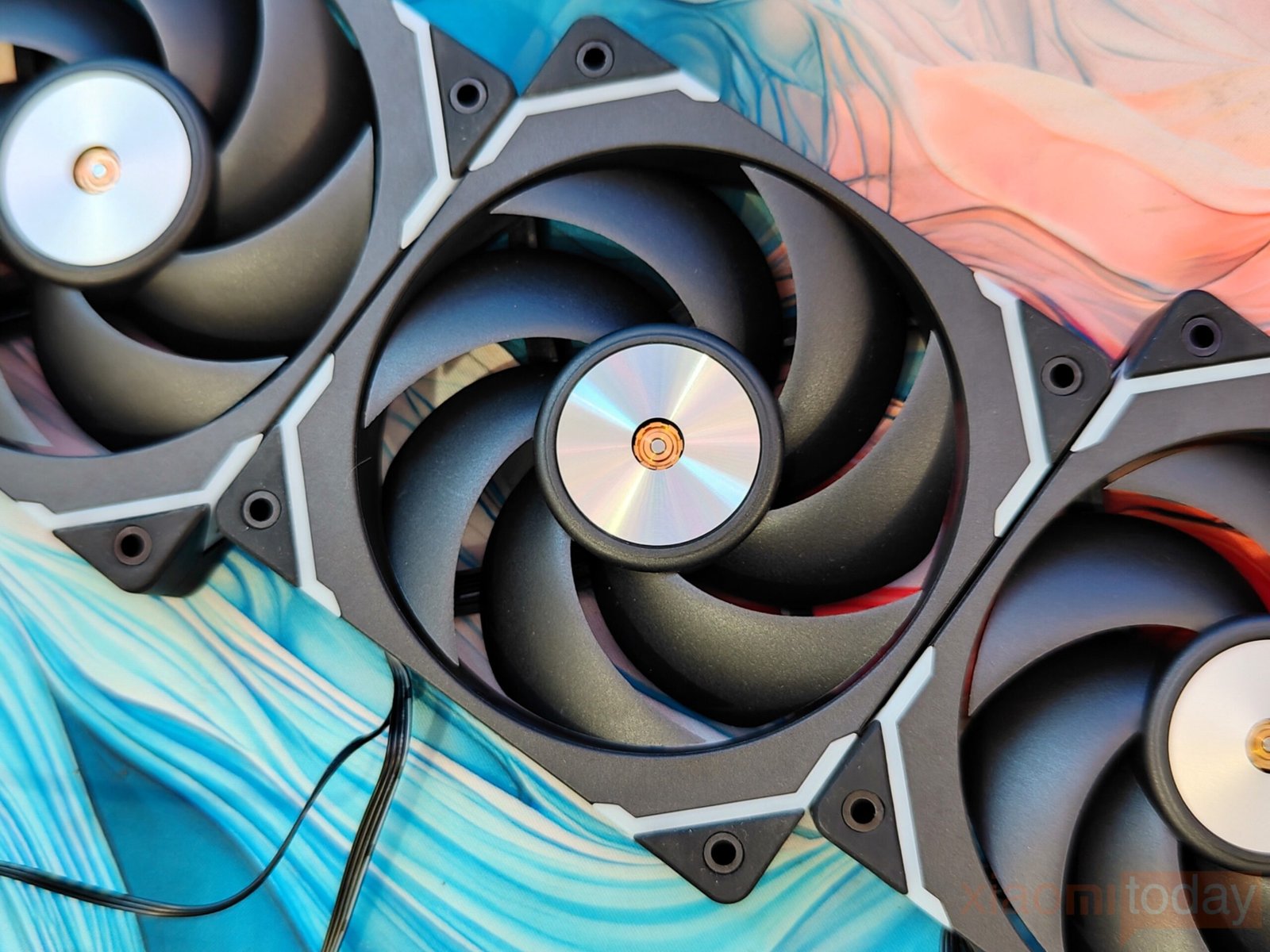

EX12A 120mm Fans

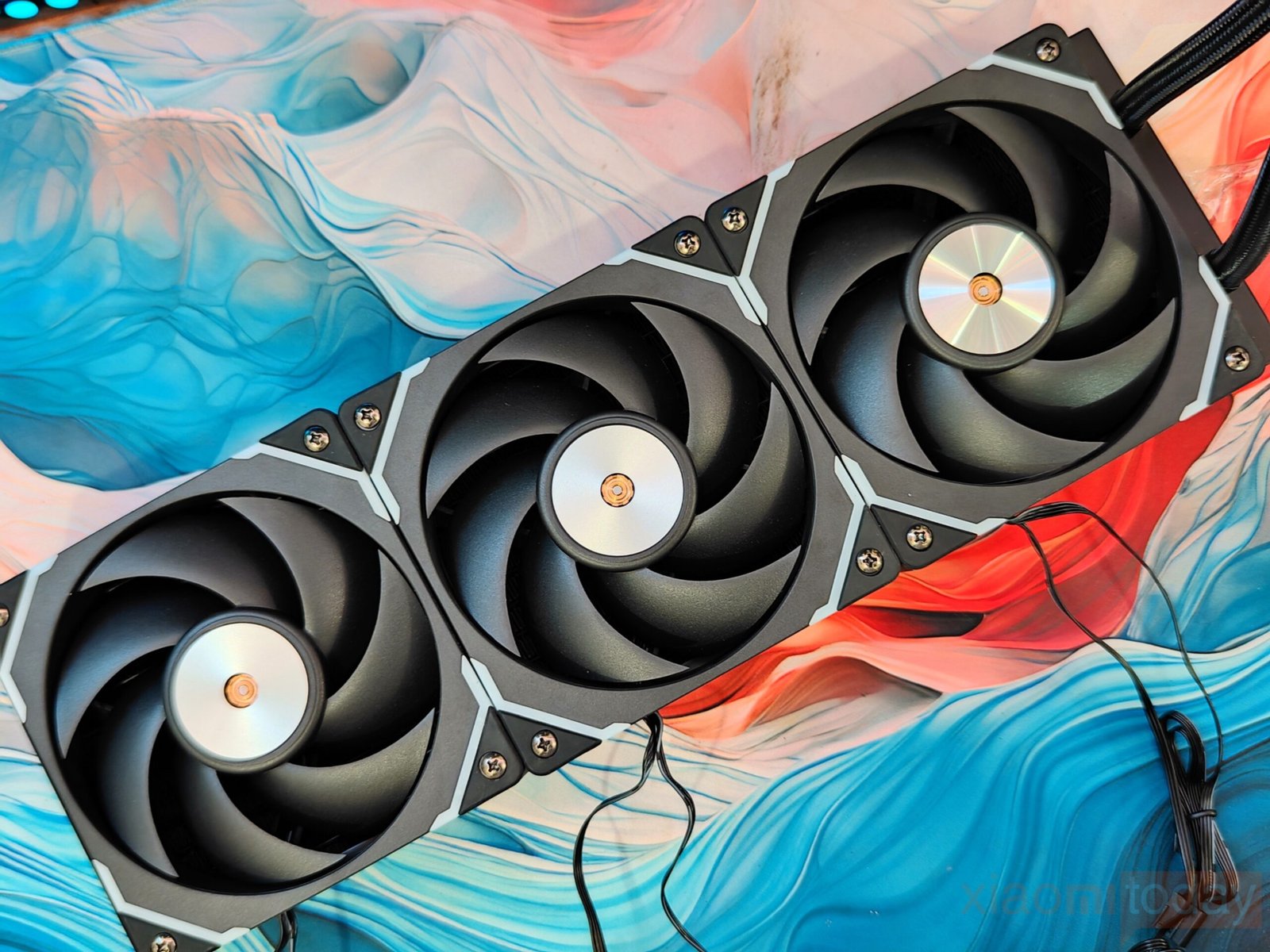

The Three Einarex EX12A fans included with the VERTEX 360mm AIO are built to deliver both strong cooling and a clean visual appeal. These 120mm fans use Fluid Dynamic Bearings (FDB), which help keep noise low and improve durability, with a rated lifespan of 40,000 hours. With PWM control, they can adjust speeds between 800 and 2,600 RPM depending on system load. At maximum speed, they move up to 74.22 CFM of air and generate a static pressure of 4.42 mmH2O, making them a good match for radiator cooling or airflow-restricted cases.

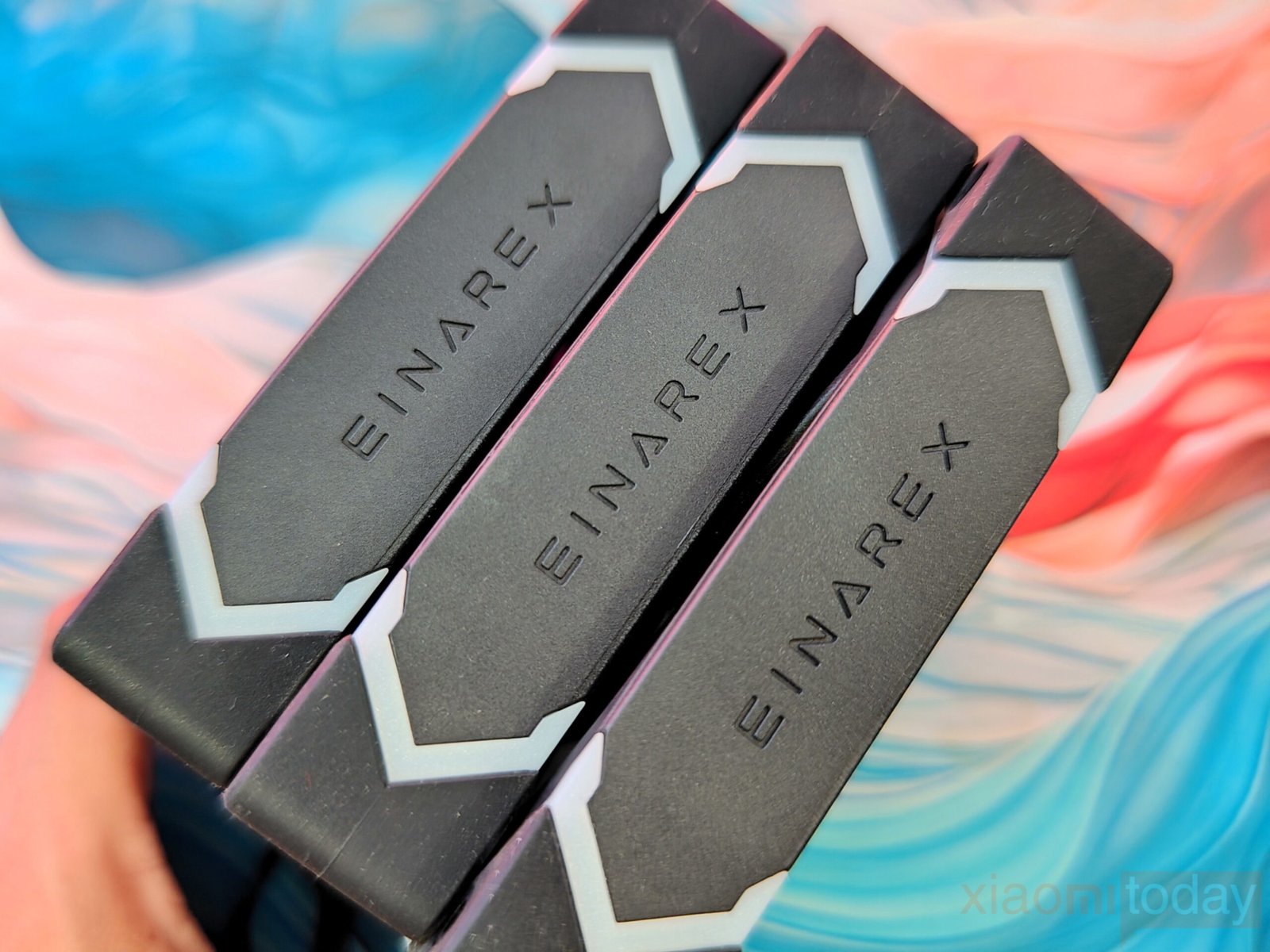

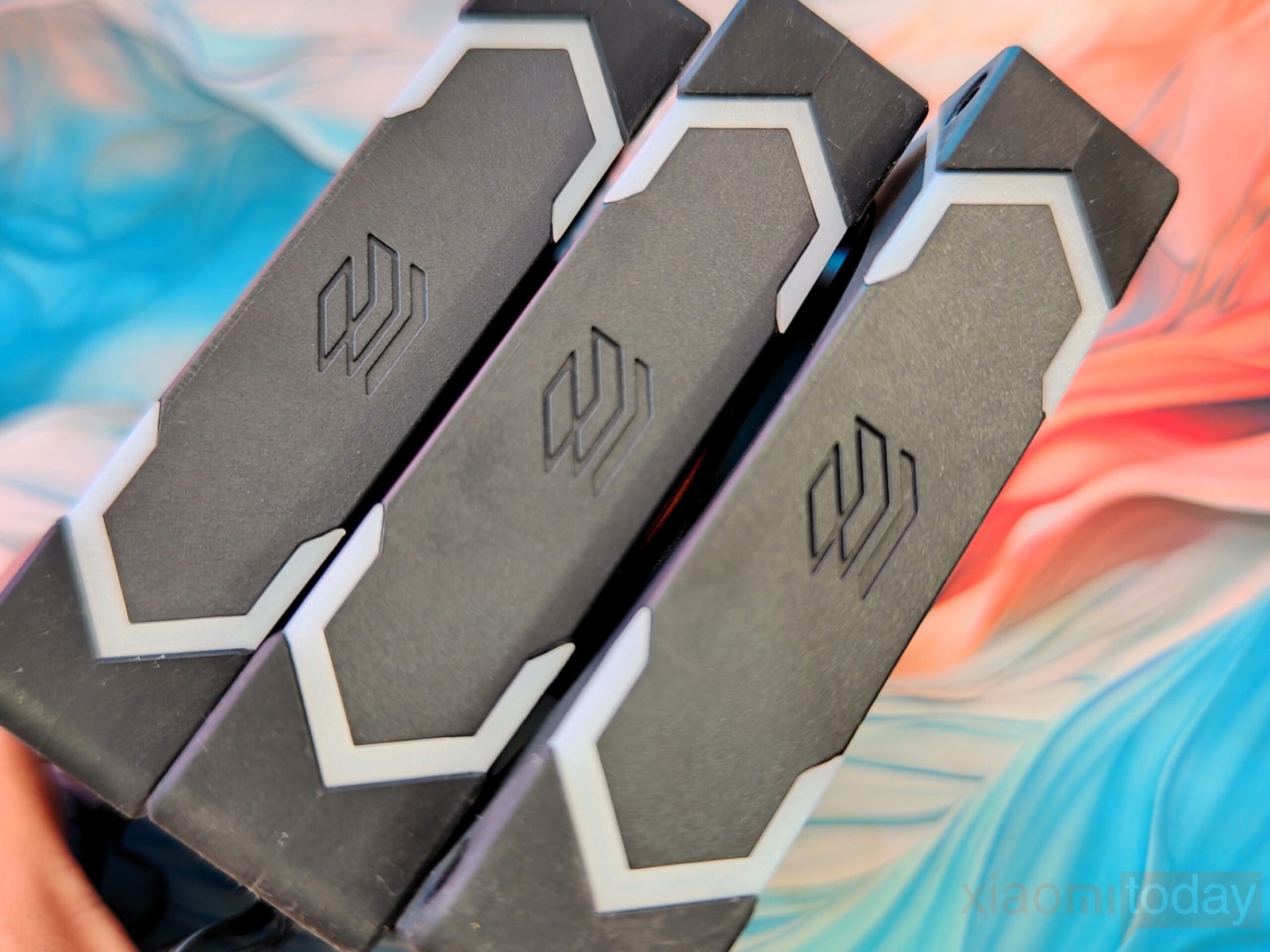

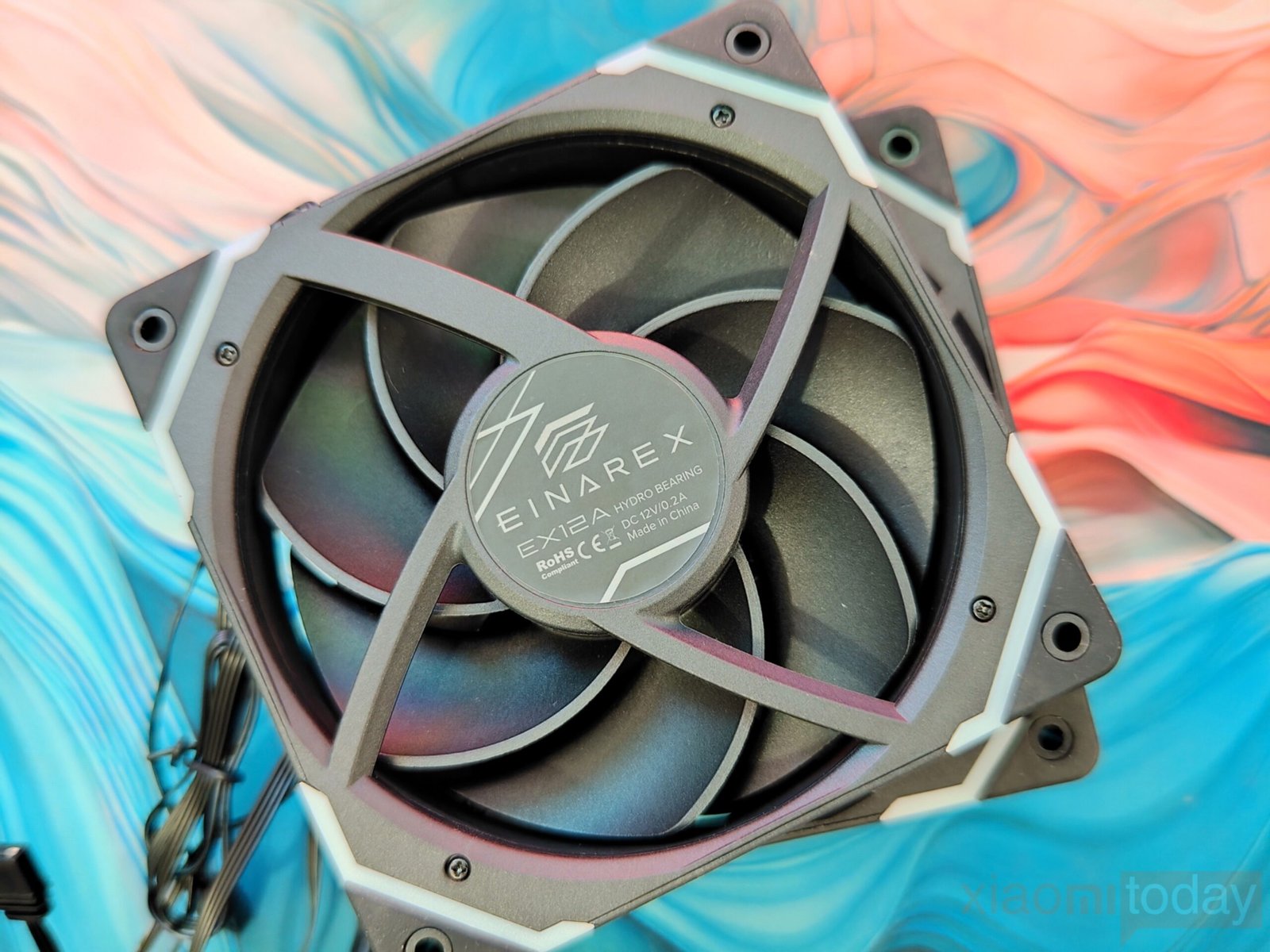

On the design side, the EX12A features a black frame paired with RGB lighting zones on each corner. The RGB is arranged in a sharp, geometric pattern that creates a distinct look when installed in a case. The fan blades have a swept shape designed to improve airflow efficiency and reduce noise caused by turbulence. The frame feels sturdy and includes rubber dampening pads to minimize vibration during operation. Subtle branding on the side panels blends well without drawing too much attention.
Noise levels are kept under control, reaching a maximum of 38.2 dBA at full speed. Under typical workloads, the fans stay relatively quiet, only ramping up when the system is under heavy stress. The PWM support allows easy tuning through motherboard software for a balance of cooling and acoustics. With a mix of solid thermal performance, durable construction, and RGB customization, the EX12A fans suit both performance builds and visually focused setups.
Installation

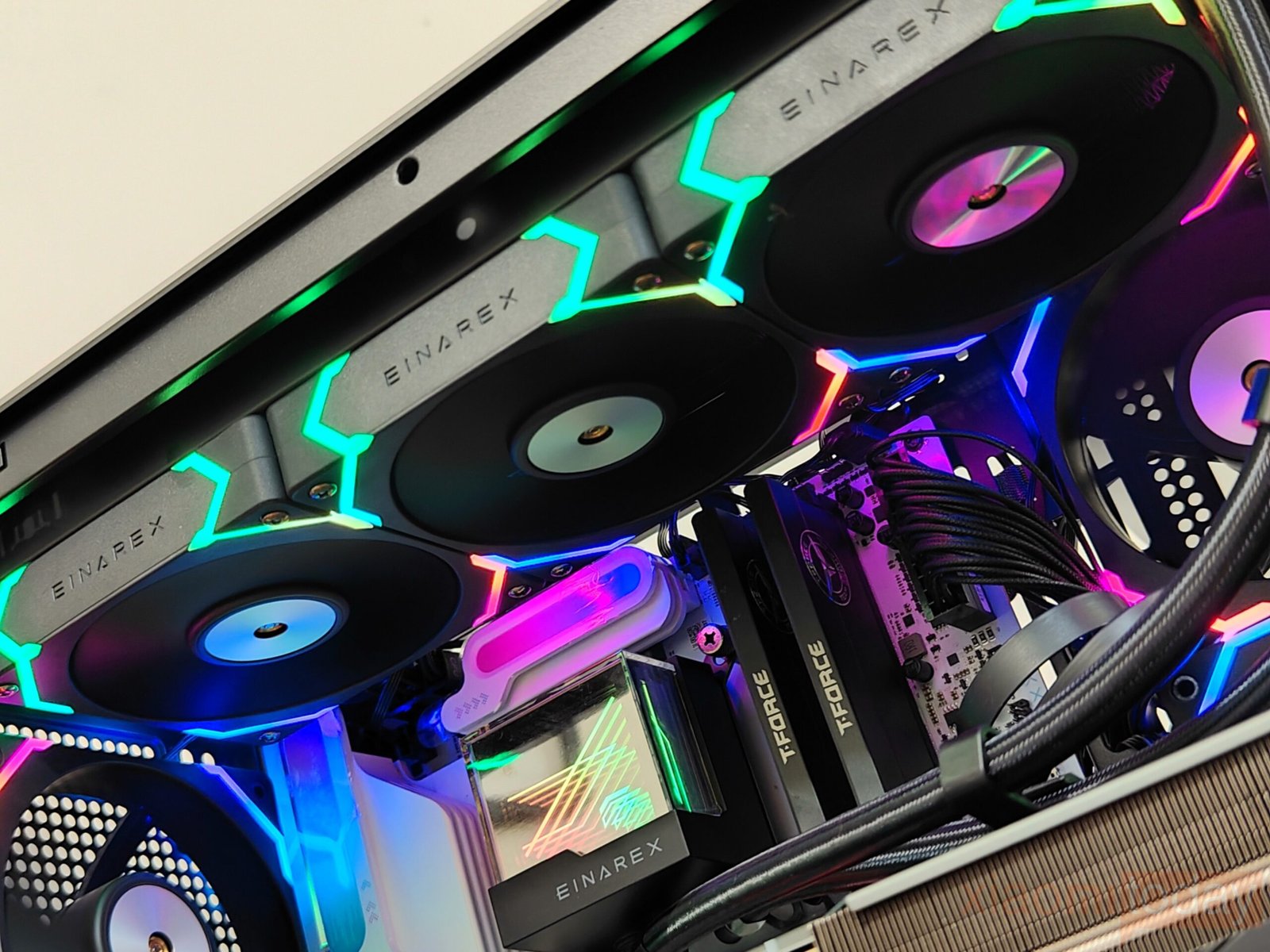

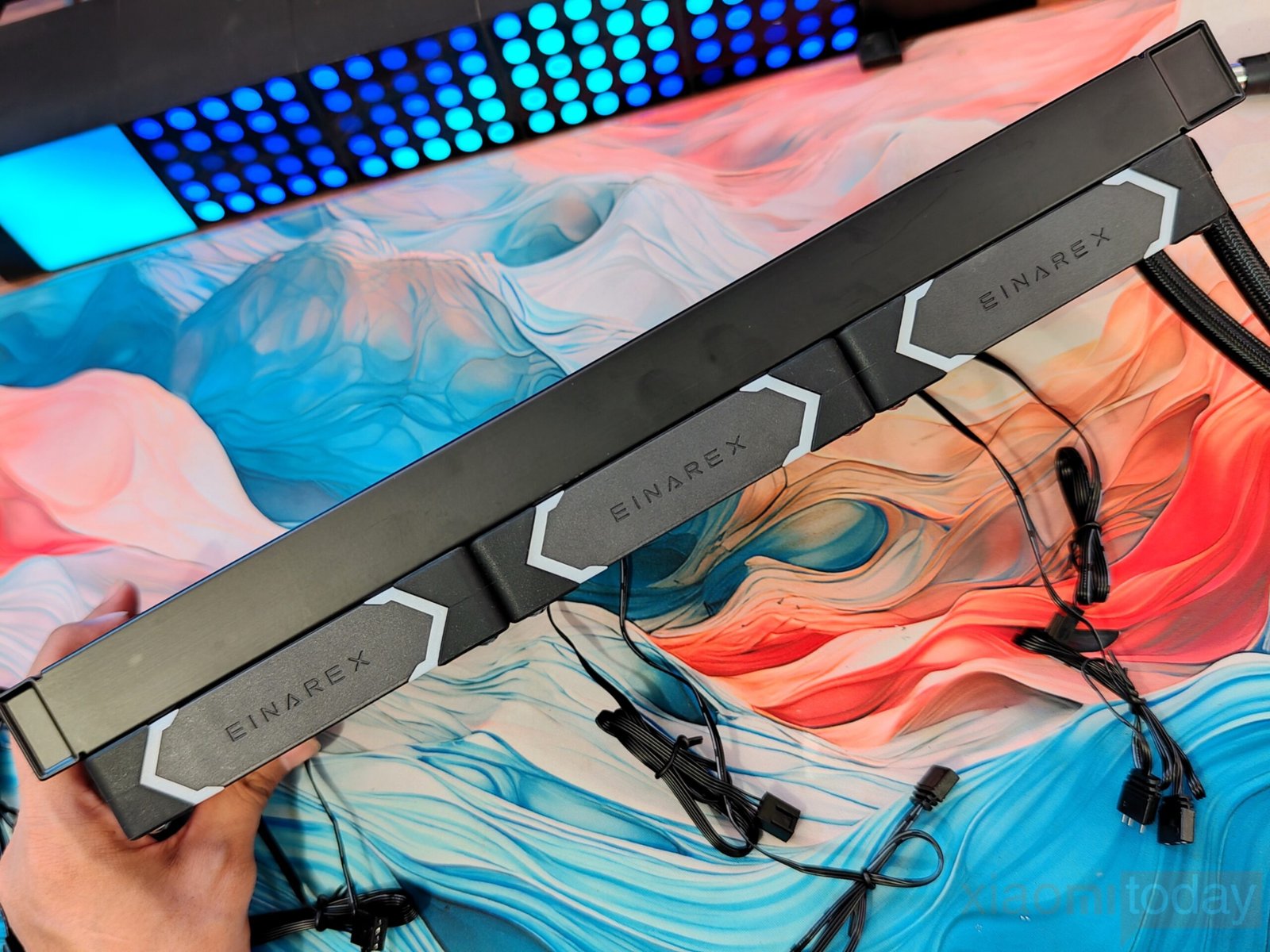

Installing the Einarex VERTEX feels well-planned and efficient from start to finish. Since the fans aren’t pre-mounted on the radiator, we began by attaching them with the included screws, which lined up perfectly and secured without hassle. For our test system, we used an Intel Core i7-13700K paired with the MAXSUN iCraft B760M Cross Micro ATX motherboard. The Intel backplate aligned cleanly with the socket holes, and the standoff screws threaded in without resistance. Once in place, the mounting brackets sat flush and were locked down using thumb nuts, making the process tool-free and straightforward. Every step felt precise, with parts fitting together as expected and no need for adjustments.
With the brackets secured, the rest of the setup came together quickly. Removing the protective film from the cold plate and applying thermal paste took only moments before the pump block was positioned onto the CPU. The spring-loaded screws allowed for an even and consistent mount using just a screwdriver. Installing the radiator at the top of the case was equally smooth, with flexible tubing providing enough length for clean routing in a mid-tower chassis. Cable management was simple too, thanks to clearly labeled connectors that minimized any chance of confusion. The overall process reflects a thoughtful design aimed at making installation as hassle-free as possible.

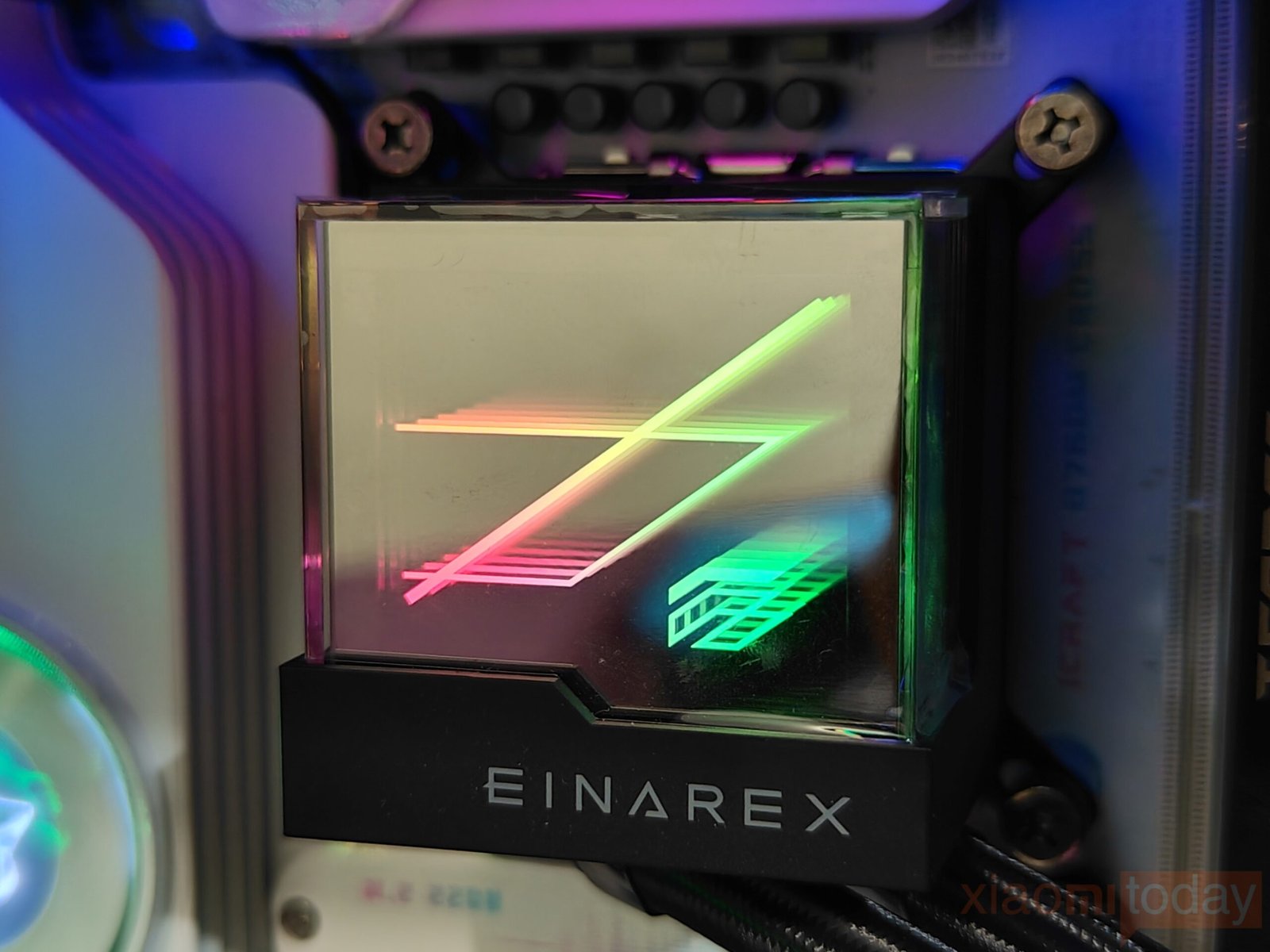

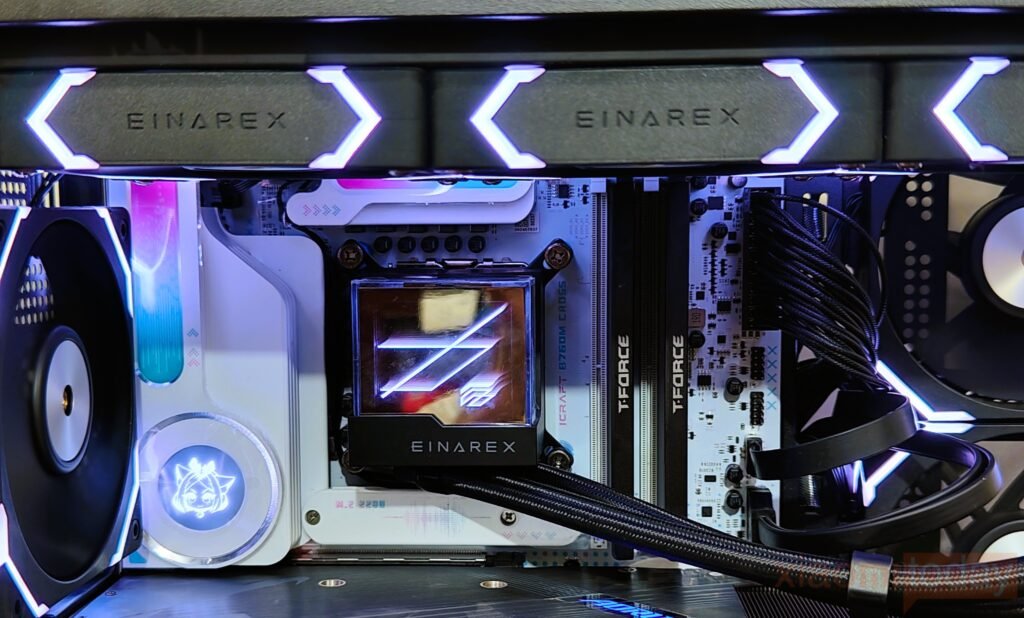

After powering on the build, the first thing that caught our attention was the 3D glass top on the pump block. It creates a holographic effect of the company logo that looks sharp and modern. The addressable RGB LEDs on the pump and fans work well with motherboard software, allowing easy adjustment of colors and lighting effects to match the system. In testing, the lighting was bright and evenly distributed, creating a balanced glow inside the case. There were minor reflections on the tempered glass side panel in low-light conditions, but this did not affect the overall look. The design provides a practical and visually appealing option for builders who want to customize their setup.
Testing & Performance
The Einarex Vertex 360mm AIO was tested using an Intel Core i7-13700K installed on a MAXSUN iCraft B760M Cross motherboard with 32GB DDR5-7600 memory. The cooler was mounted at the top of a mid-tower case with the three EX12A fans arranged in a push configuration. All tests were conducted in a room with a steady ambient temperature of 24°C. Thermal performance was measured in synthetic stress tests and gaming workloads to provide a complete overview of its capabilities.
| Test Scenario | CPU (Stock) | CPU (OC 5.5GHz) | Thermal Delta (°C) |
|---|---|---|---|
| AIDA64 Stress Test (Full Load, 30min) | 63°C | 81°C | 39°C |
| Idle (10min) | 29°C | 32°C | 5°C |
| Gaming (Cyberpunk 2077, 1hr) | 56°C | 64°C | 32°C |
In AIDA64’s 30-minute stress test, the Vertex 360 kept the i7-13700K at an average of 63°C at stock settings. When overclocked to 5.5GHz at 1.3V, the processor peaked at 81°C under full load. These numbers place the cooler in a competitive position among other 360mm AIO units. Idle temperatures settled around 29°C, reflecting efficient heat transfer through the copper cold plate and radiator. The recorded thermal delta between the CPU package and ambient air under full load averaged 39°C, showing consistent heat dissipation across extended workloads.
During gaming tests, we ran Cyberpunk 2077 and Horizon Zero Dawn at 1440p ultra settings for one hour each. Average CPU package temperatures during gameplay hovered around 56°C, with occasional peaks reaching 64°C during CPU-intensive scenes. This suggests the Vertex 360 is more than capable of handling the thermal demands of modern gaming systems, even when paired with a high-power GPU that raises internal case temperatures.
| Fan Speed | RPM | Noise Level (dBA) |
|---|---|---|
| Idle | 800 RPM | 25 dBA |
| Full Load | 2,600 RPM | 38 dBA |
| Pump (Constant) | 2,800 RPM | Low hum (~30 dBA) |
Acoustic performance was also measured with a sound level meter placed 50cm from the system. At idle, the fans spun at 800 RPM, producing just 25 dBA—a level that blends into background noise in most rooms. Under full load, fan speeds ramped up to 2,600 RPM, where noise levels reached 38 dBA. The pump, operating steadily at 2,800 RPM, emitted a low hum that remained unobtrusive throughout testing. The EX12A fans maintained solid airflow through the radiator’s dense fin stack, and the rubber pads at each corner helped reduce vibration transfer.
Overall, the Vertex 360 delivered a well-balanced mix of cooling performance and quiet operation suitable for both gaming and workstation environments.
